Installing
Freewave
19

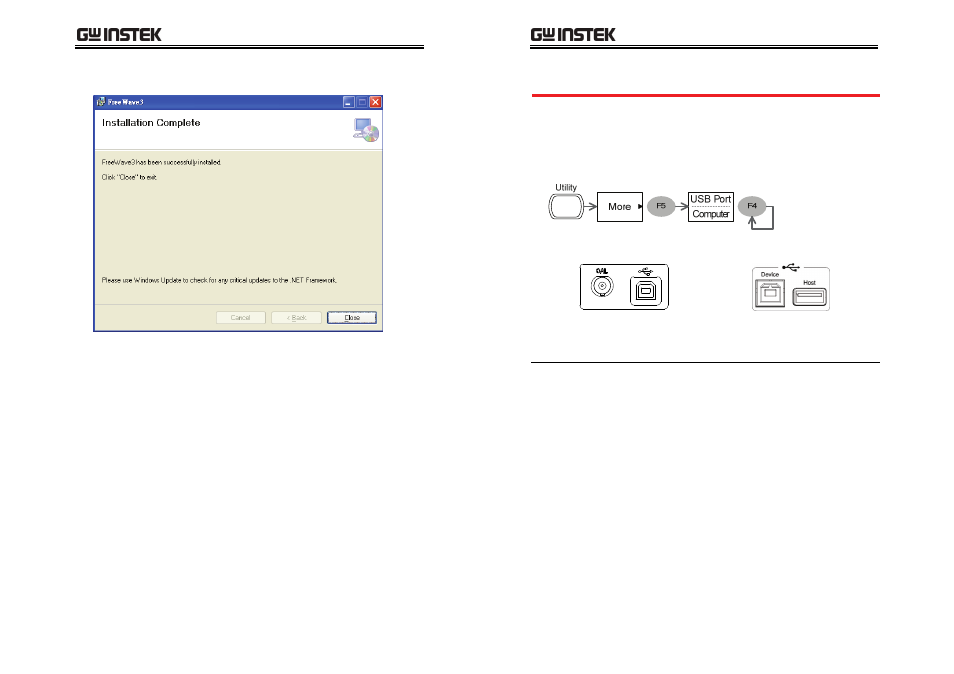

6. When the installation is completed, click on the Close button to
complete the process.
Freewave
Manual
20
Connecting the Oscilloscope and Verifying Connectivity
1. Power the oscilloscope up.
2. Select the USB interface by pressing the Utility key, followed by
F5 (More). Then, press F4 (USB Port) repeatedly until Computer
is selected.(GDS-1000A-U and GDS-1000-U only)
3. Connect the USB cable between the oscilloscope and PC.
GDS-1000-U, GDS-1000A-U USB
slave port
GDS-2000A, GDS-3000 series USB
slave port
