Monitoring the Oscilloscope

29

Note

The pause button only applies to the GDS-1000-
U/1000A-U

Viewing in full-
screen mode

To view the display in full-screen
mode, click on the Full-screen
button in the control panel.
Note: to go back to the original
screen size, press the Space key, or
double click anywhere on the
screen.

Closing Freewave

To close Freewave, do one of the
following:

Click on the Close button in the
control panel

Press the Alt + F4 keys

Click on the Close icon at the top
right corner of the screen.

Freewave

Manual

30

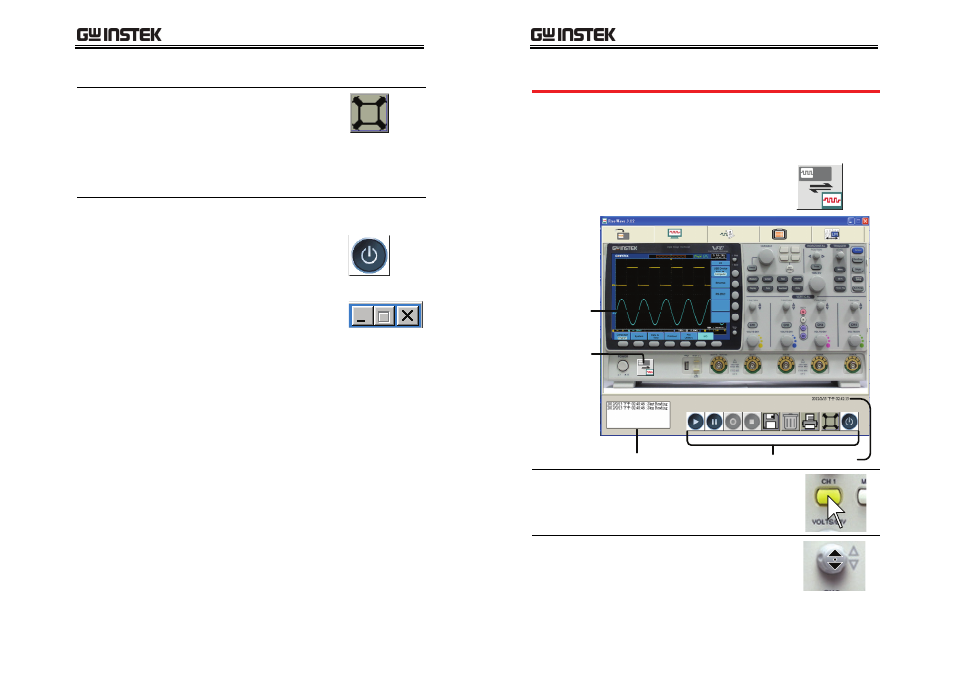

Viewing the Oscilloscope Virtual Panel

1. Make sure that the oscilloscope’s display contents appear in the

Freewave screen. See “Viewing the Oscilloscope Display
Contents”, page 28.

2. Click the View button to toggle the display.

Operation log

Control panel

Date

Oscilloscope

display

View button

Operating Panel
keys

Left clicking on any button in the
virtual panel will perform the same
operation on the DSO remotely.

Operating
Variable knobs

To use any variable knob, place the
mouse cursor over a variable knob
until the cursor changes to a scroll
arrow.
