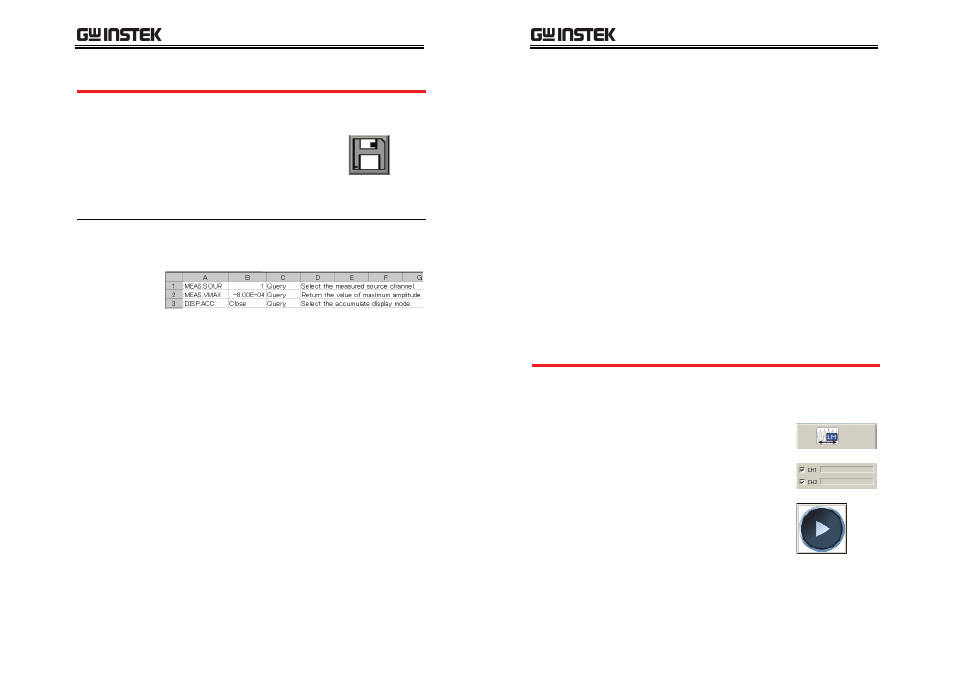

background image

Using the Commands

47

Saving a Command List and its Result

1. Prepare a command list and/or run the commands.

2. To save the command list and its result, click on

the Save button. The save file dialog box opens.

3. Select the file directory, enter the file name and save the list in

CSV (*.csv) format.

Opening the file

A command list in CSV format can be opened
using a spreadsheet application such as Microsoft
Excel.

File contents

Command name

Command result

Mode (set or query)

Command description

Long Memory Data Capture

48

L

ONG

M

EMORY

D

ATA

C

APTURE

(GDS-2000A/

GDS-1000A-U

O

NLY

)

The Long Memory Data Capture function in Freewave directly
transfers long memory digital waveform data (up to 2M) from the
oscilloscope to the PC. Captured digital waveform data is stored in
CSV format. CSV is compatible with most spreadsheet applications.
The Data Capture function is used to:

View oscilloscope waveforms

Save waveform data

Viewing Long Memory Oscilloscope
Waveforms

1. Activate Freewave and connect the oscilloscope to the PC. For

details, see page20.

2. Select the Long Memory Data tab (last tab).

3. Choose the input channel(s).

4. Press the play icon at the bottom of the screen.

5. Freewave will start capturing data as soon as a waveform is

triggered. A dialog box will ask to input a signal to CH1/CH2.
