Monitoring the Oscilloscope

27

M

ONITORING THE

O

SCILLOSCOPE

The oscilloscope display contents appear in the Freewave screen,
allowing observing and recording the waveforms in analog form; for
capturing digital waveform points, refer to page27 “Monitoring the
Oscilloscope”. Here are the available operations.

Viewing the oscilloscope’s display contents

Taking a snapshot image of the display contents

Recording a movie clip of the display contents

Printing out the display contents


The Virtual panel is able to remotely control a connected DSO and
display the DSO contents back onto the Virtual Panel display. All
functions and operations that can normally be performed on the
DSO panel can be performed on the Virtual Panel.

Freewave

Manual

28

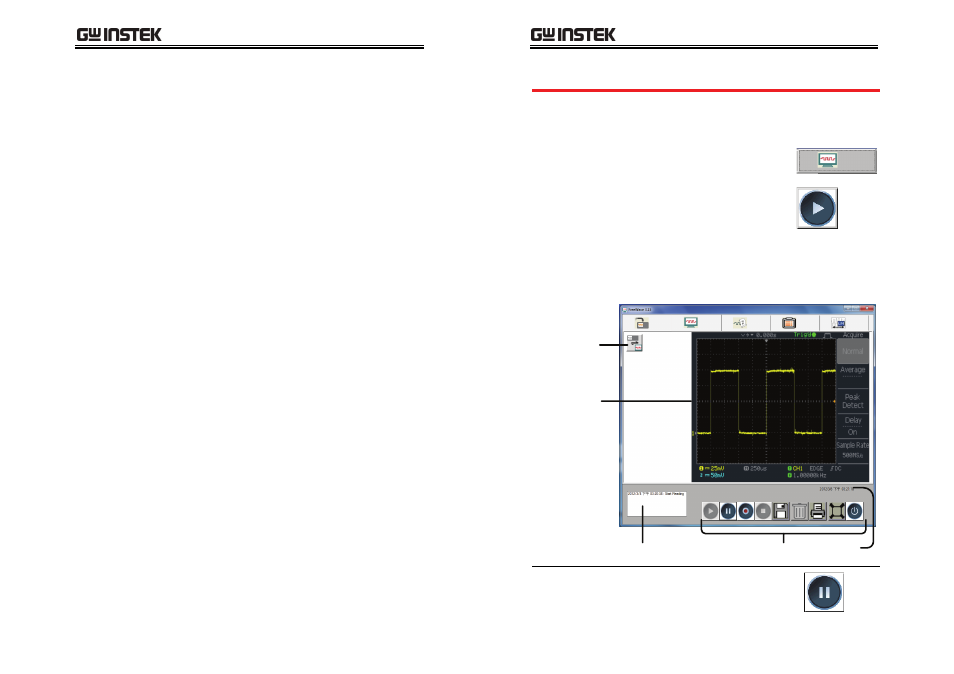

Viewing the Oscilloscope Display Contents

1. Connect the oscilloscope to the PC and activate Freewave. For

details, see page20.

2. Select the Image tab (second from the left).

3. Click on the Play button in the control panel.

The oscilloscope’s display contents will appear
on-screen.

Note

The GDS-1000-U/1000A-U will continually send a
screen shot to the PC, while the GDS-2000A or GDS-
3000 will only send an initial screen shot once when
the PLAY button is clicked.

Pausing the
display

To stop updating the display, click
on the Pause button in the control
panel.

Operation log

Control panel

Date

Oscilloscope

display

View button
