Page 8 100 Series

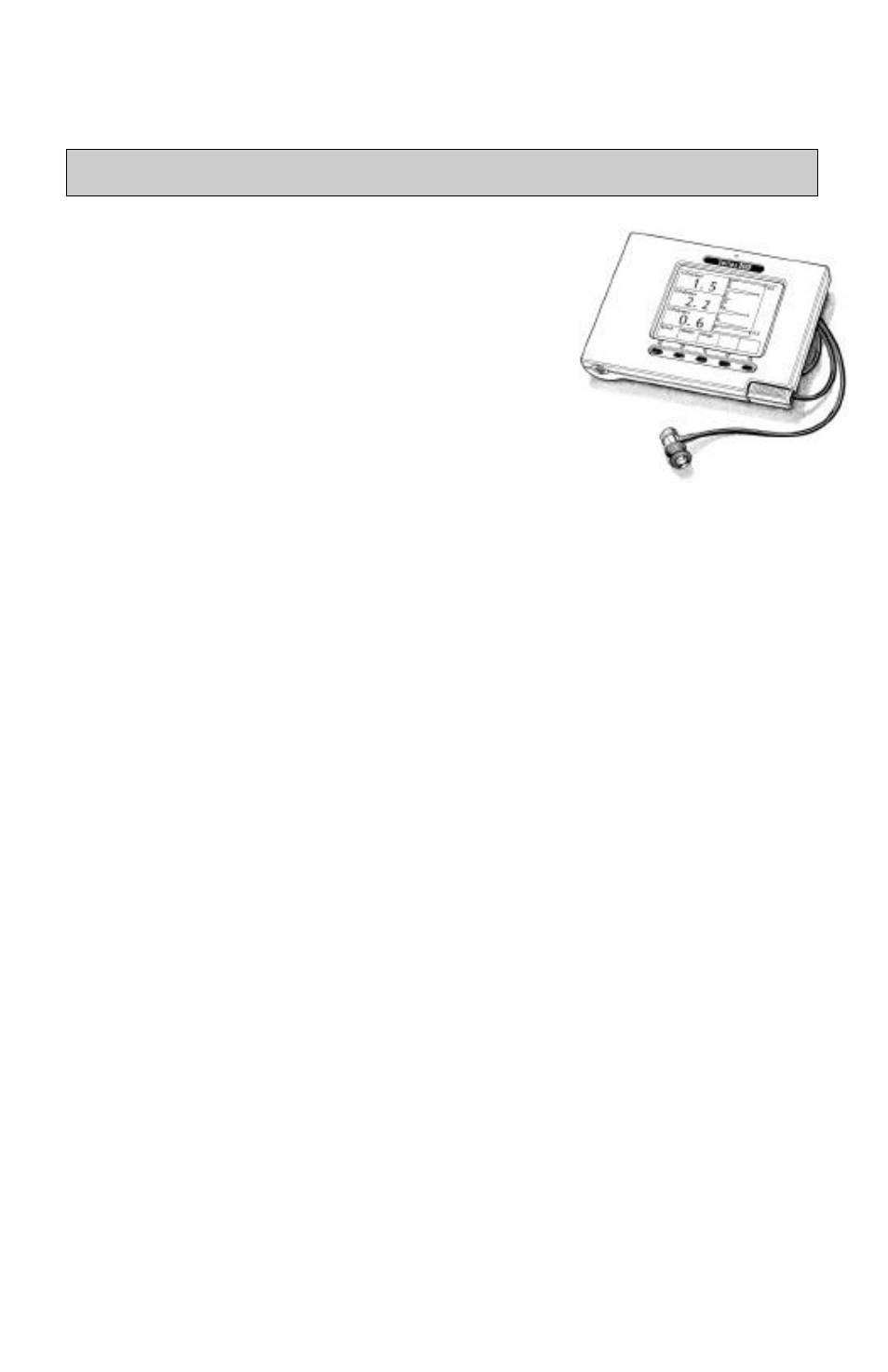

Physical Overview
Packing List
The Model 100 comes complete with:
•
one (1) ultrasonic probe, either B, C or D (pg.9)
•
Cordura carrying case with shoulder strap
•
this instruction booklet
•
two (2) “C” alkaline batteries (pg.37)
•
wire stand for desktop operation (pg.8)
•
precision plastic shim set (pg.28)
•
ultrasonic couplant (pg.17)
•
Material Safety Data Sheet for couplant
•
With the Memory option, PosiSoft software and RS232 serial cable are
included
Gage Description
5 LCD buttons - Soft key functions are displayed in the LCD above each button. Pressing
a button displays available menu choices or moves the black highlight bar
to the next choice. To select, press the
OK button.
Speaker - audibly indicates various Gage functions. Volume is not adjustable.
Green LED -low power light emitting diode located above the LCD. Ideal in noisy or
low light environments to confirm a reading has been taken.
Wire Stand - A wire stand is provided to allow for convenient desk top operation.
Press-fit it into the top hole located above the backplate and beside the
batteries. Remove and store it for hand-held operation.
Probe Connect - The probe connector is a locking 9 conductor mini-DIN. Normally the
probe does not need to be disconnected from the Gage.
To disconnect the probe from the Gage pinch the plastic connector firmly
along the hash marks and pull straight out. It can be removed during
power-up or power-down. All settings and readings are maintained.
When reconnecting, ensure the 9 pin DIN connector is properly aligned.
Then push the plastic connector in firmly. The Gage will download probe
identity and enable all applications and calibrations associated with that
probe.
Probe Switches - B and C probes have a convenient sliding switch near the base of the
probe to provide constant pressure during the measuring process. Pushing
this switch down activates the measuring process.
The switch on the D probe is located on top of the probe. Stabilize the
probe on the coating surface before holding this switch down.
