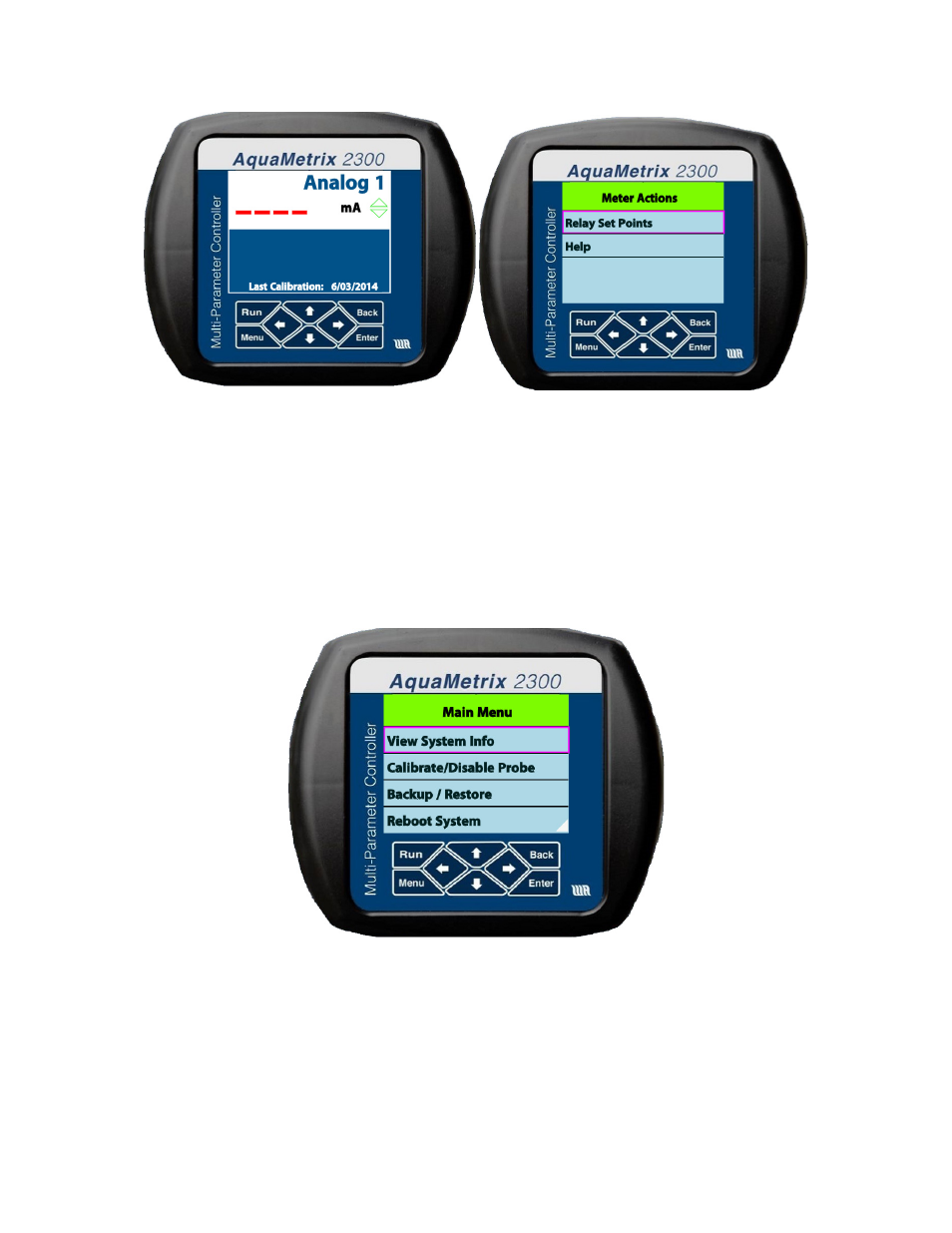

Figure 5 - The channel Detail screen and Configure screen for Channel 1
The detailed screen lists alarm and relay set points, last calibration date, and will flash when the
channel is in alarm mode. The configure screen allows resetting of the alarm and relay set points,
alarm acknowledgement, and zeroing of the totalizer and dispenser functions and other channel-
specific functions.
1.4. Front Panel Menu Options
The front panel menu choices are limited as the 2300 is designed to be configured and operated over
a network in a browser. However, there are several key functions available to the user on the front
panel. These include calibration and setting up the network. The main menu is shown in Figure 6.
Figure 6 - Main Menu screen
Use the up or down arrow keys to target an item, and the Enter key to select it. If there are more than
4 choices available, the bottom (or top) corner on the right will be notched.
The menu options are listed in outline form below in Table 1. You may calibrate your probes from the
front panel, but remember that full functionality of the unit is only available via the Ethernet cable
from a network, or browser on a computer, tablet, or phone. Customize your unit via a network to
display proper units, names of probes, and to configure alarms, relays, and notifications.
