TANK TO HOUSE CONNECTION

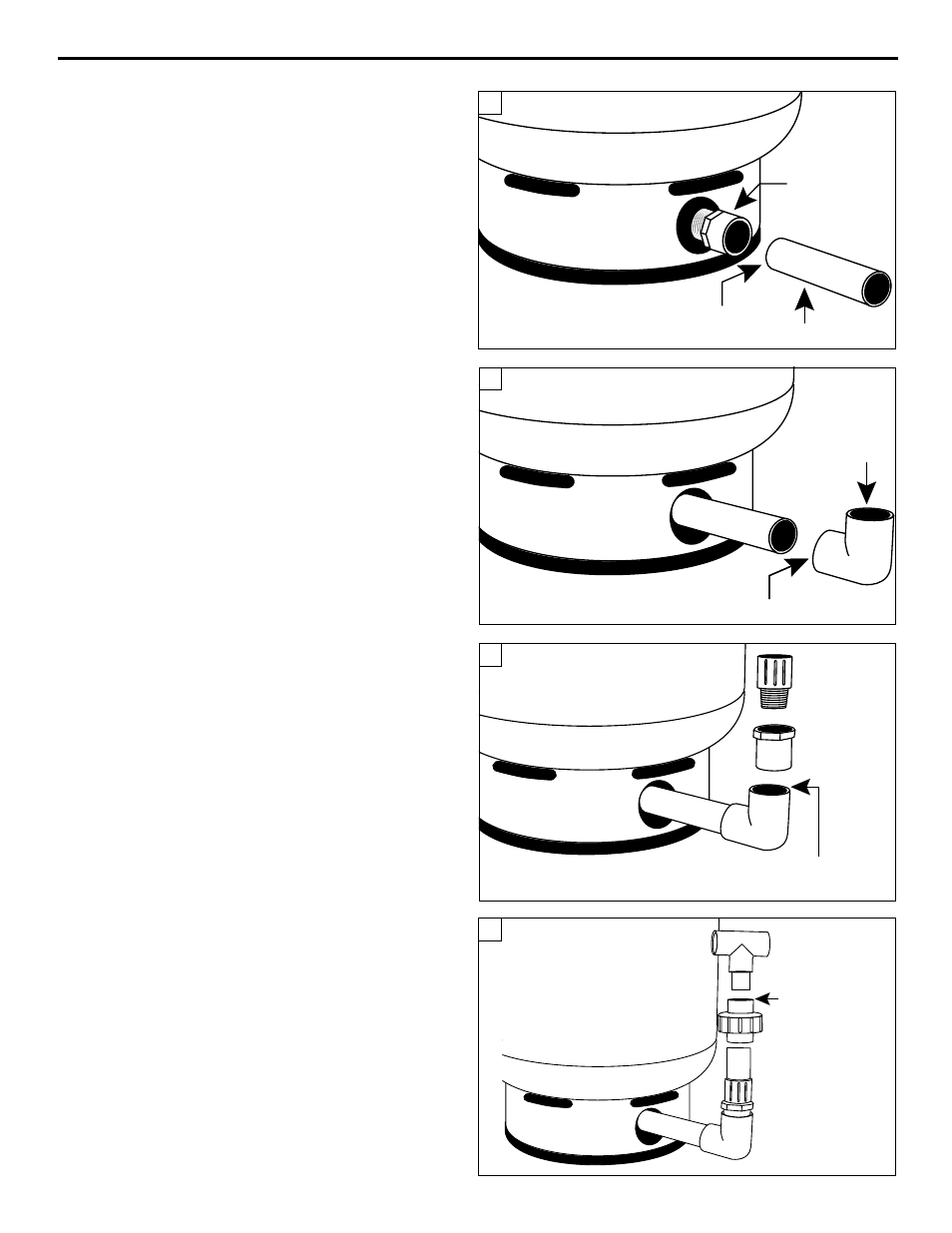

1. Most pressure tanks will have a 1 inch inlet
elbow on the bottom. Connect to this elbow
with a 1 in. MPT x 1 in. slip (glue) adapter
and short piece of pipe. ( Fig 1)
4. Attach a 3/4 in. pipe to the reducer bushing.
Install an optional 3/4 in. union and continue
with pipe and 3/4 in. x 3/4 in. x 3/4 in. tee.
( Fig. 4)
3. Attach a 1 in. pipe to the elbow and a 1 in.
x 3/4 in. reducer bushing to the pipe.
( Fig. 3)
2. Install a 1 in. elbow. ( Fig. 2)
IL1365 Glue
Adapter
Pipe
1
Glue
Adapter
Coupling
3
IL1368
Glue
Tee
Union
4
IL1366
Glue
Elbow
2
