7
IL1360
5
5. Finish the connection to your well with
additional pipe and fittings as needed.
( Fig. 5)

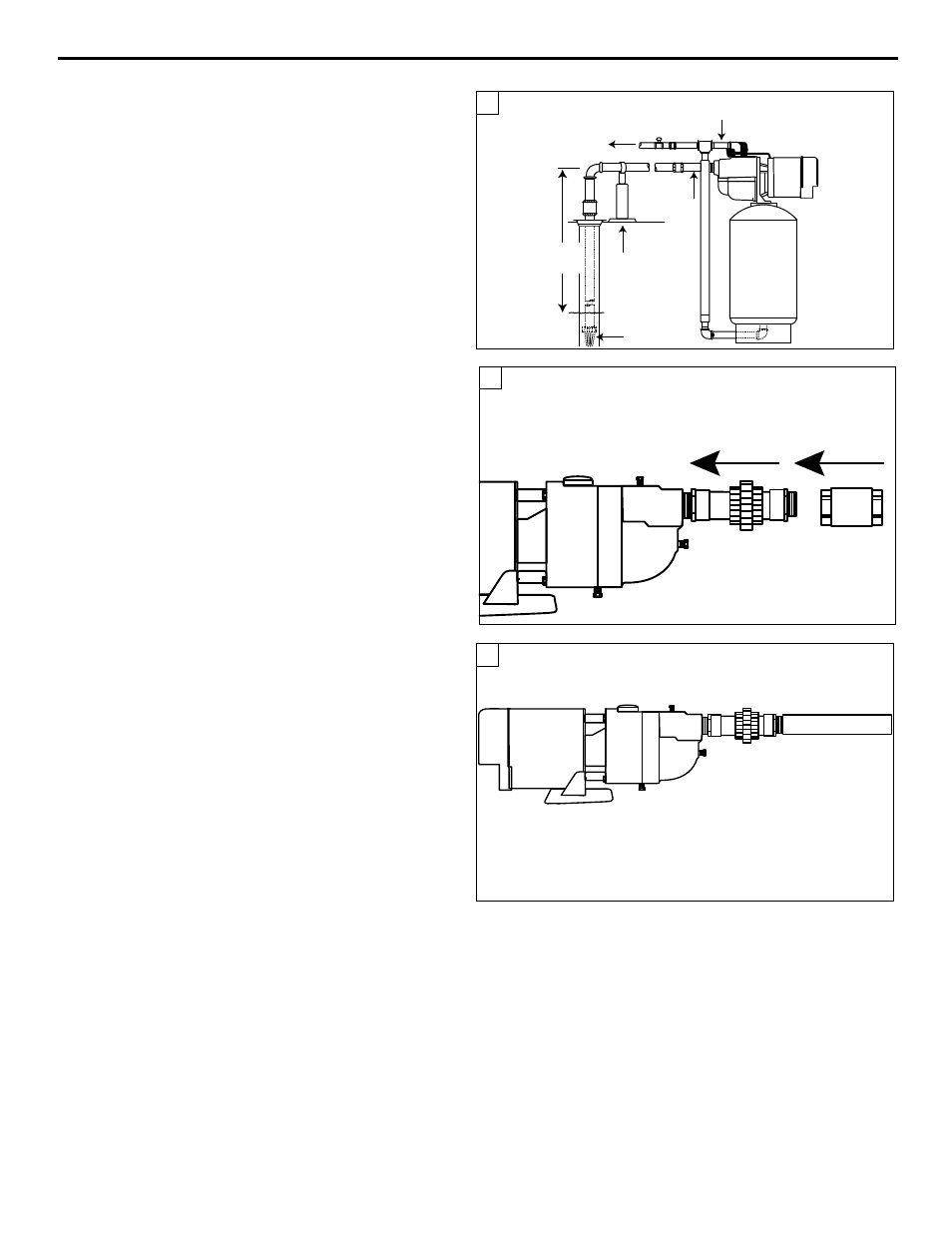

4a. NOTE: For drilled (cased) wells, a foot valve
is required in the well at the end of the pipe
to maintain prime. ( Fig 4a)
IL1359
Pump
Flow
Arrow
4b
WELL TO PUMP CONNECTION (SUCTION PIPE) (CONTINUED)
IL1104
Water Level
25 ft.
Max
Suction
Lift
3/4 or 1 in.
Discharge Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
4a
4b. For driven wells, a check valve is required
at the top of the well to maintain prime. Flow
arrow must point toward pump.
( Fig.4b)
