Star Water Systems S1101 SERIES - Manual

SW0701
0909
Supersedes
NEW

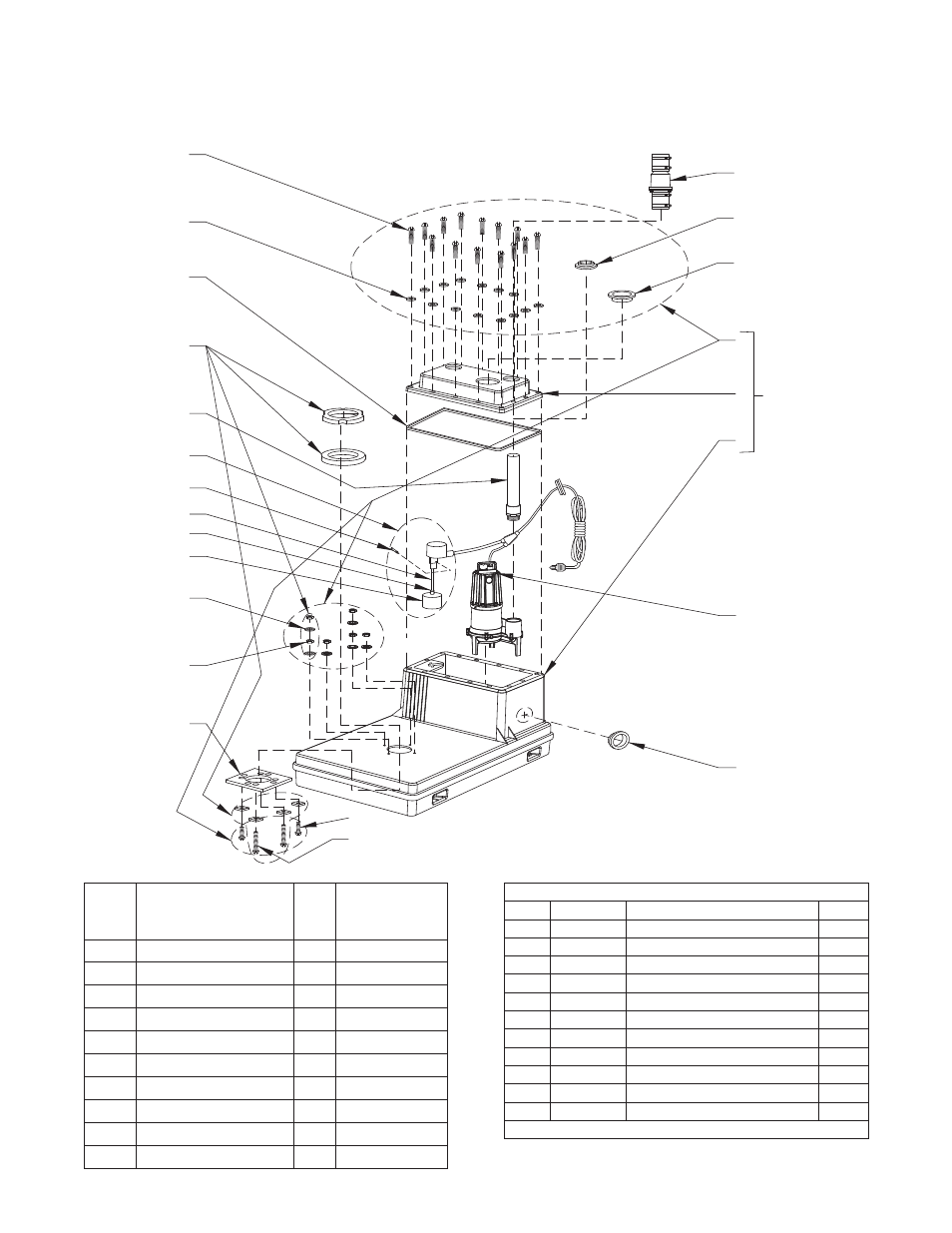

PowerFlush REPAIR PARTS
“S1101” SERIES
10
13
5
12
11
20
18
19
21
17
16
15
14
11
13
(OPTIONAL)
8
6
4
2
3 1
7
9
8
SK2158
REF.
NO.
DESCRIPTION QTY MODEL 1102
3/02 to
Present
1 Tank & Lid Assembly 1 010658
2 Tank 1 011022
3 Lid 1 011023
4 Hardware Pack 1 010497
5 Toilet Flange 1 005521
6 Pump 115V 1 1102RP
7 Back Flow Device 1 006817
15 Discharge Pipe 1 008515
16 Switch Hardware Pack 1 010532
21 Kit, Wax Ring Seal 1 008634
HARDWARE PACK P/N 010497
ITEM P/N DESCRIPTION QTY
8 005588 Seal, Discharge 2" 2
9 005587 Seal, Vent 3" 1
10 004529 Screw, .25-20 x 2" 2
11 004480 Washer, SS-.25" Standard Flat 20
12 001812 Nut, .25-20 H-SS 6
13 004531 Screw, .25-20 x 1" LG RHM SS 16
14 010524 Seal Foam - Closed Cell 1
17 009121 Float Rod Pin 1
18 010499 Float Rod 1
19 009120 Float Rod Stops 2
20 009119 Float Bulb 1
Note: Components are shipped each.
