10

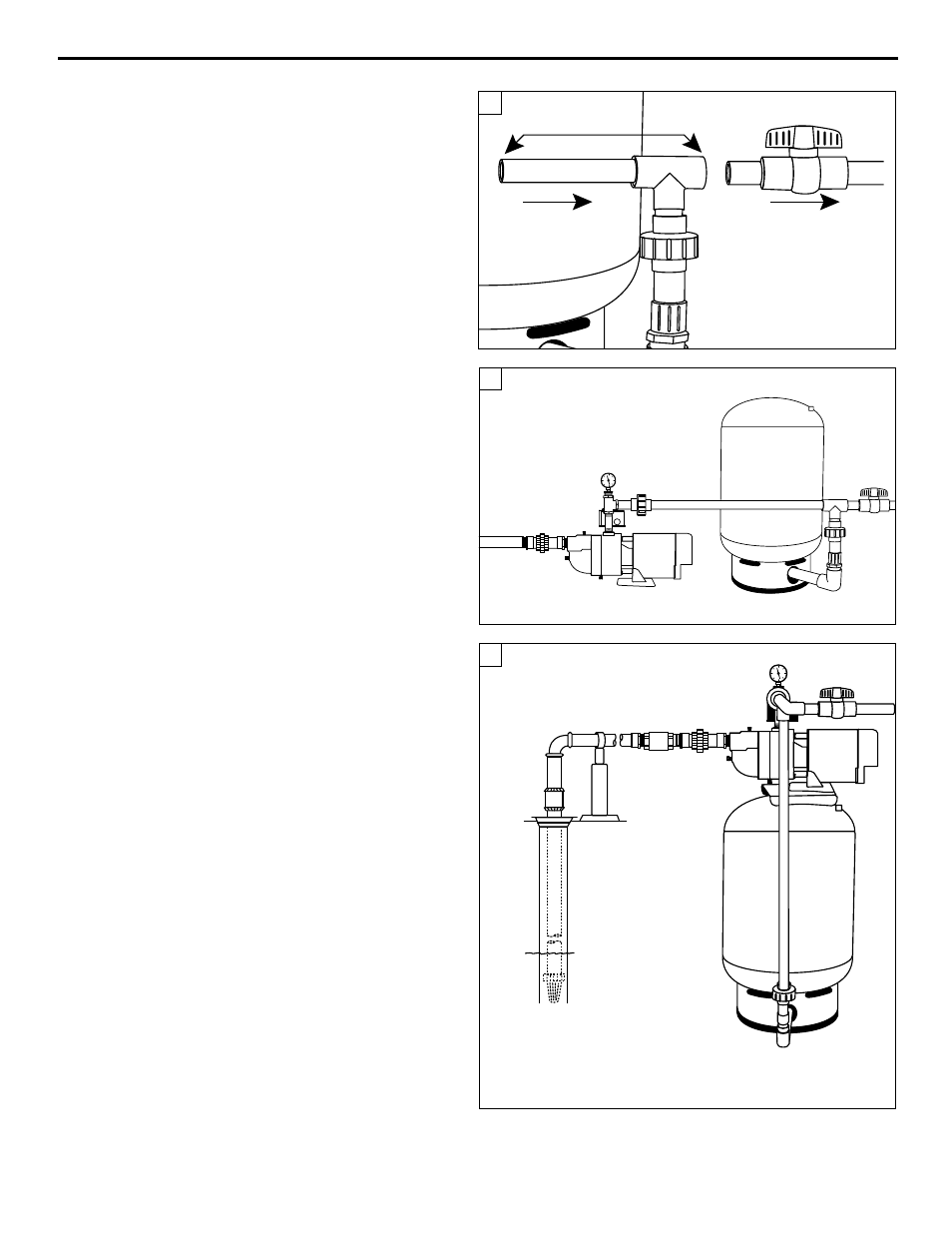

TANK TO HOUSE CONNECTION (CONTINUED)
5. Make the connection to the house plumbing.
From the tee, install pipe and shut off valve
(optional). ( Fig 5)
IL1370
6
IL1371
7
7. Optional tank mounted system is shown.
Connections are basically the same as
explained in previous steps. ( Fig. 7)
6. Completed installation with piping and tank is
shown ( Fig. 6)
IL1369
Glue
To House
Plumbing
From Pump
Shut off valve
5
