14

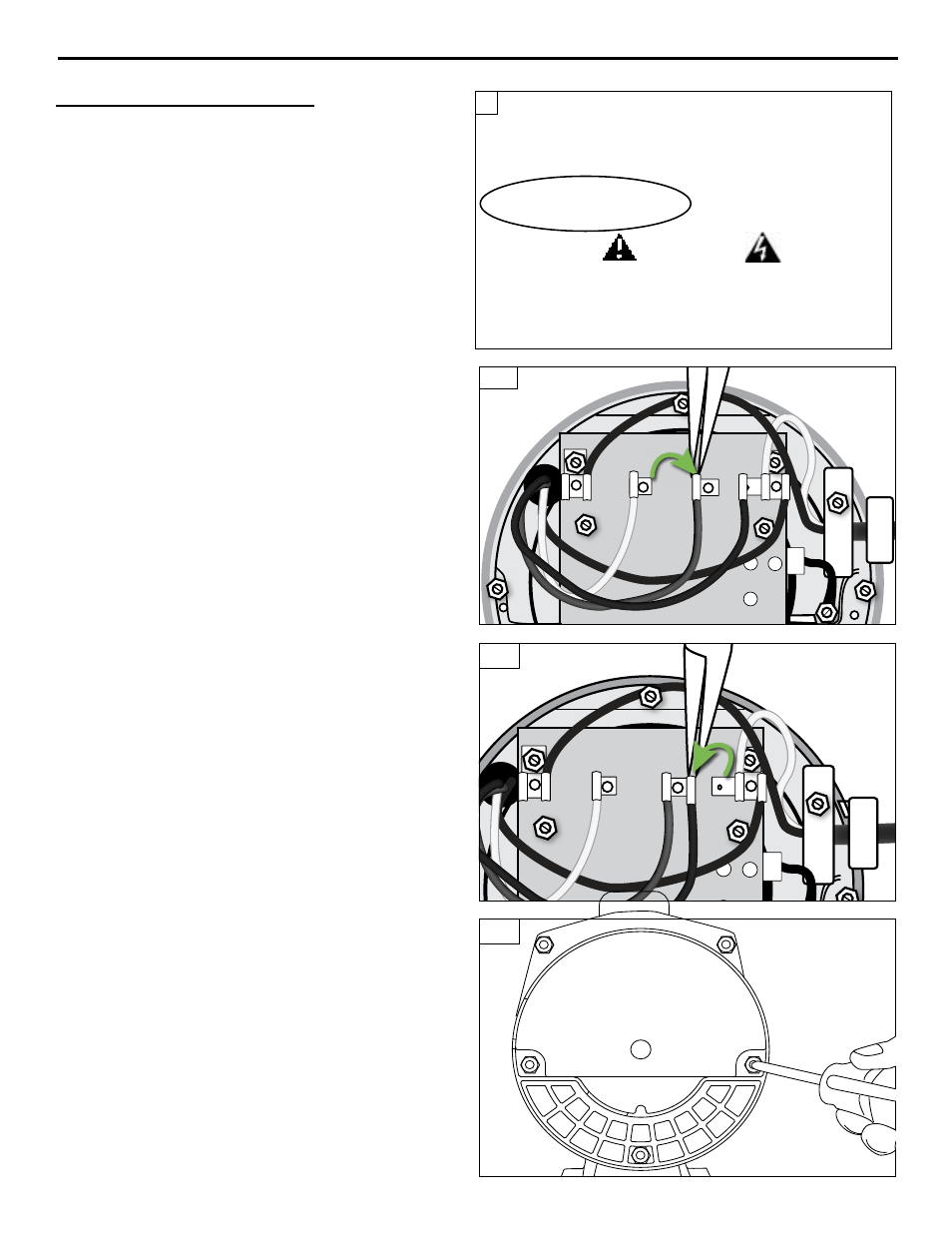

To change from 115V to 230V
11. The motor of this pump is dual voltage and
can run on either 115V or 230V. In general,
230V is more economical to run, and
requires a smaller wire size. Most models
are pre-set in the factory to run at 115V.
NOTE: See pump label to verify voltage
prewired at the factory. (
Fig. 11)
12. For 230V service, change the following
wires on the terminal board:
a. Using a pair of needle nose pliers,
pull the gray wire with the female flag
connector from the “A” terminal spade
post. Place it to the right on the “B”
terminal space post. (
Fig. 12a)
b. Pull the red wire with the female flag
connector from the “L2” terminal. Place it
to the left on the “B” terminal space post.
(
Fig. 12b)
A
B
L1
L2
IL1355
GRAY
RED
12a
A
B
L1
L2
IL1356
230V
GRAY
RED
12b
c. Reinstall the rear motor cover. (
Fig.12c)
NOTE: To change voltage from 230V to 115V,
simply reverse instructions above.
12c
PUMP ELECTRICAL CONNECTIONS (CONTINUED)
S
TAR
®
C
US
LR90197
UL Std. No. 778
ENCLOSURE 3
starwatersystems.com
Pump:
ES05S
Rev:
B
Motor:
98L105
HP:
1/2
PH
1
Hz
60
Volts
115/230
S.F.
1.2
Amps
6.4/3.2
S.F. Amps:
8.6/4.3
RPM
3450
Type
C
Duty:
Cont.
Temp
65C
KVA Code
G
Frame
56L
Ins Class
B
Factory prewired for 115V
Thermally protected automatic
Check voltage of power source
Use copper conductors only
ELECTRICAL HAZARD
Improper installation may result in fi re, explosion, electrical short or injury. Replace all covers
before operating. Ground motor in accordance with local and national electrical codes.
Disconnect power source before touching internal parts. Motors equipped with automatic
protection may restart without warning.
See instruction manual for proper installation procedure.
Se reporter au manuel d’instructions pour suivre la procédure adéquate d’installation.
Consulte el instructive para conocer el procedimiento de instalación correcto.
L1
L2
A
B
L1
L2
A
B
IL0180
YELLOW
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
WHITE
GRAY
RED
TAN
YELLOW
WHITE
GRAY
RED
TAN
DATE CODE:
0713*
Made in USA
11
