6

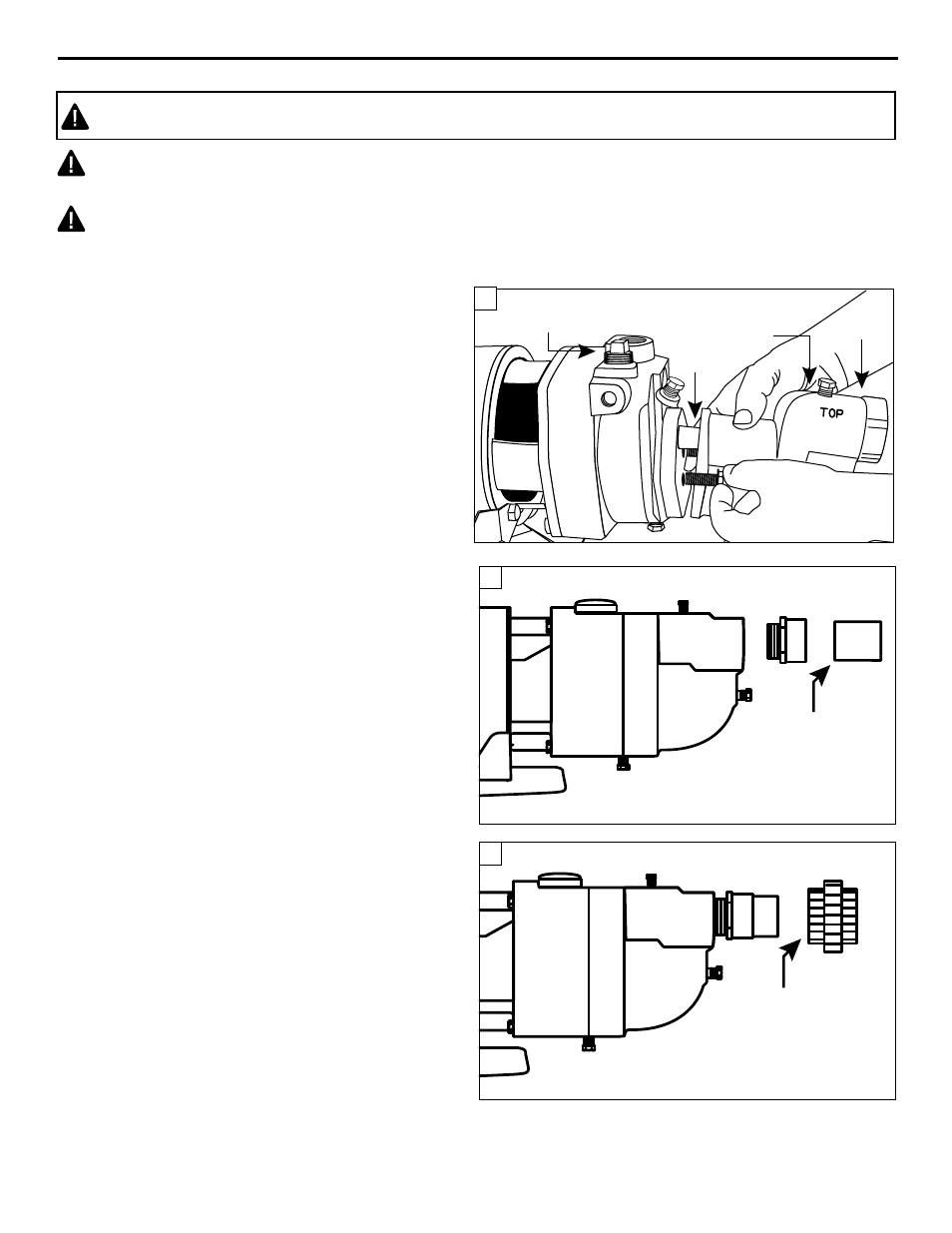

WELL TO PUMP CONNECTION (SUCTION PIPE)
3. The use of a union (optional) will assist with
easy connection and disconnect. ( Fig. 3)
IL1357
Glue
2
IL1358
Glue
3
1. JHU10S, EK10S, JHU15S, EL10S CPH05S
Models Only
Attach ejector to face of pump with two (2)
bolts and gasket provided. Venturi tube on the
ejector inserts into the top tapping of the face
of the pump (Fig. 1).
NOTE: Models ES05S, EK05S, ES07S,
EK07S, EL05S and EL07S have built-in
ejector.
IL1324
Priming Port
Venturi
Tube
This Side
Up
Ejector
1
CAUTION: Dry-fit entire assembly to ensure proper fit before gluing or taping parts.
CAUTION: Follow all proper gluing procedures as specified by the glue manufacturer. Always
glue in a vertical direction whenever possible to prevent glue from dripping inside pipe or fittings
CAUTION: Use pipe tape and pipe paste compound on all male threads. Tighten with wrench to
a snug fit and add another 1/4 turn to ensure proper seal.
2. Make the connection to your well first. Wrap
all threaded fittings with pipe tape 5 times
and then apply a pipe paste (pipe dope) to
ensure an air tight connection. ( Fig. 2)
