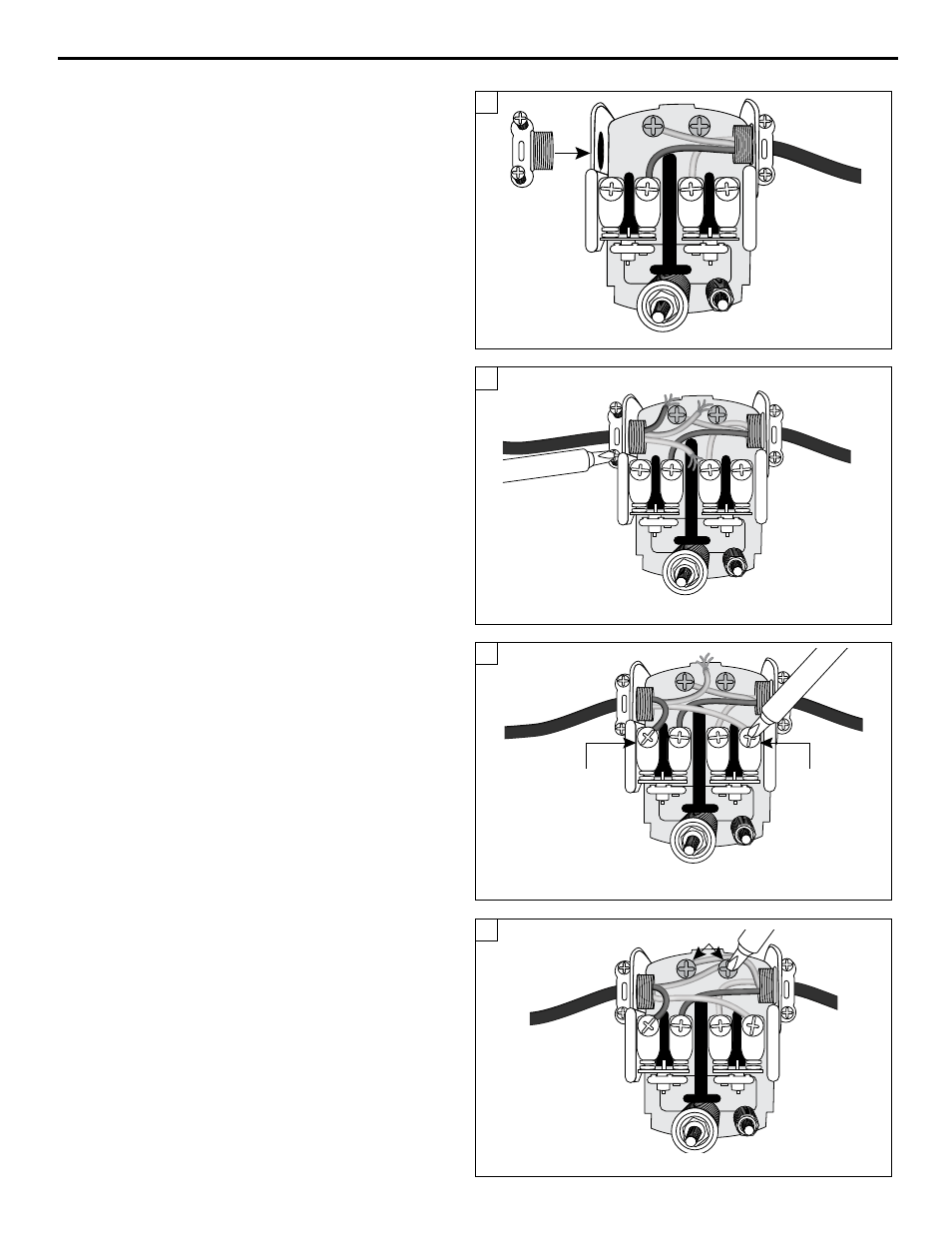

7. Insert an electrical wire strain relief into the
opening in the opposite side of the pressure
switch. ( Fig. 7)
IL1376
Wire from
motor
Pressure
Switch
Strain
Relief
7
Wire from
motor
Wire from
power
supply
8
Wire from
motor
Wire from
power
supply
Outside
terminal
Outside
terminal
9
Wire
from
motor
Wire from
power
supply
Ground Screws
10
10. Connect the green ground wire from the
power supply to the remaining green
ground screw in the pressure switch and
re-attach the pressure switch cover.
( Fig. 10)
9. Connect the two wires from the power supply
to the two outside terminals on the pressure
switch. ( Fig. 9)
8. Thread the cable from the power supply
through the strain relief and tighten both
screws on the strain relief. Do not crush wire.
( Fig. 8)
PUMP ELECTRICAL CONNECTIONS (CONTINUED)
