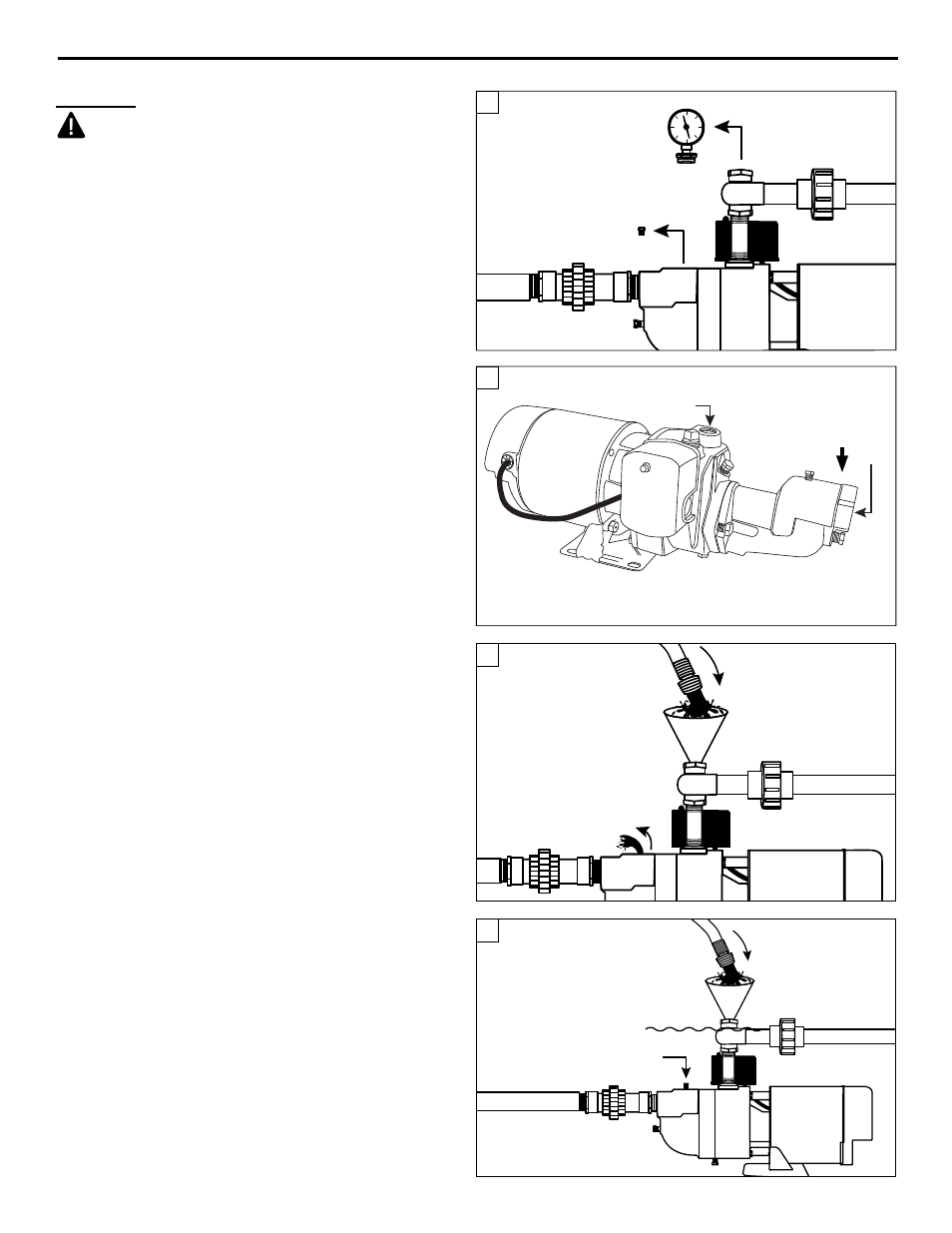

PUMP PRIMING & STARTUP
PRIMING
CAUTION: All pumps must be primed
(filling the cavity with water) before they are
first operated. This may take several gallons
of water, as the suction line will be filled in
addition to the pump cavity.
1. Remove the priming plug with pressure
gauge and air relief plug.
( Fig. 1a with built-in ejector)
(Fig. 1b with bolt-on ejector)
IL1351
2
IL1352
Water Level in
Pump Cavity
3
3. Replace air relief plug and continue adding
water to pump cavity until water reaches the
top of the priming plug. (Fig. 3)
2. Slowly fill pump cavity until water comes out
of air relief hole on top of the pump. ( Fig. 2)
IL1350
Priming Plug
with Pressure
Gauge
Air Relief Plug
IL0068
3/4 or 1 in.
Discharge
1-1/4 in.
Suction
Air relief plug
1a
1b
