SEED HAWK ® 2014 AIRCART OPERATOR’S MANUAL SEED HAWK ® 2014 AIRCART OPERATOR’S MANUAL 2
1.1 Description of the Machine

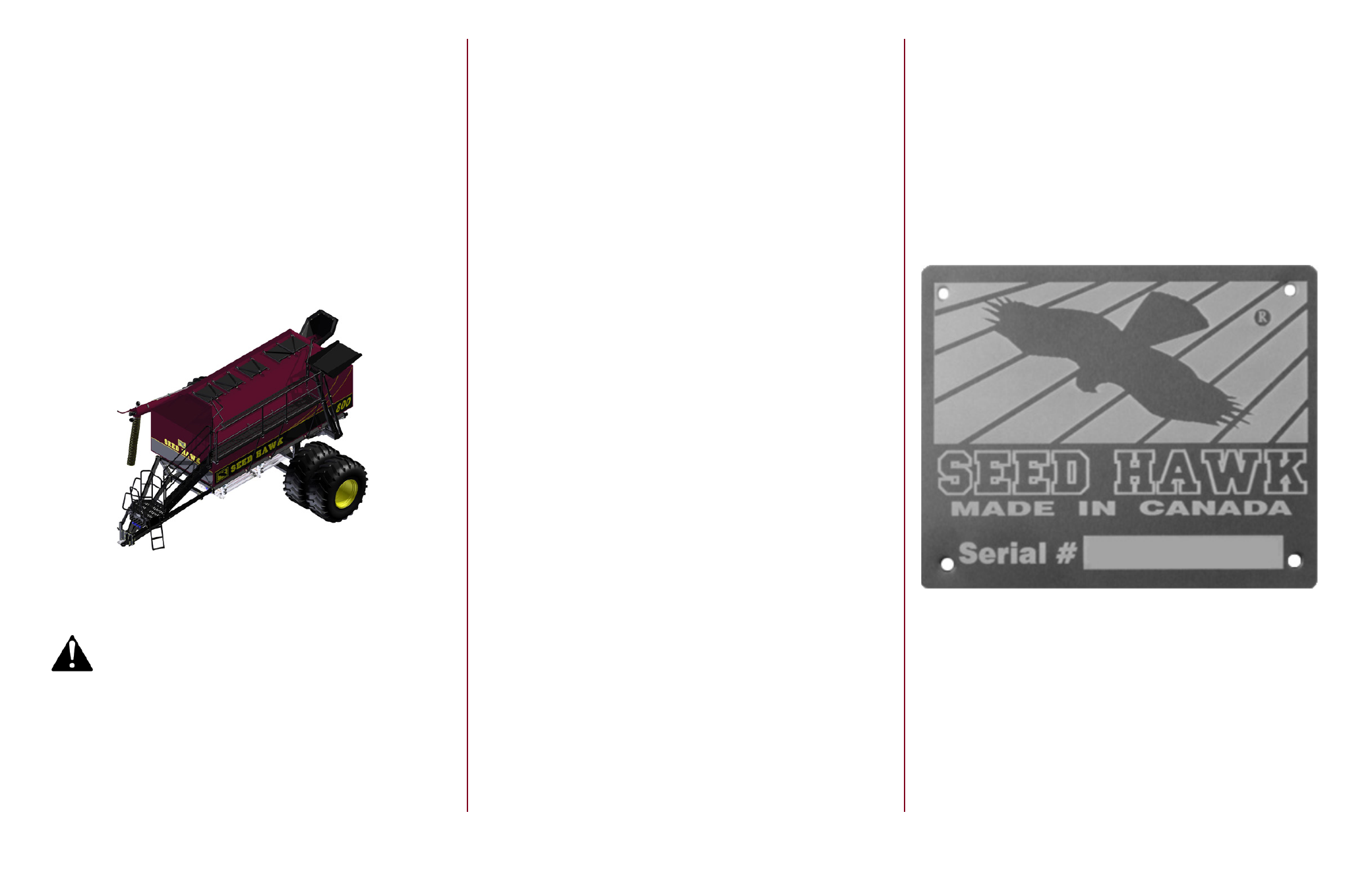

1.2 Illustration of the Machine
The Seed Hawk
®
aircart is a single axle cart which is available as a tow between
or a tow behind except the 800 aircart which is only available in the tow behind
configuration. The 500, 600, and 800 bushel aircarts have three compartments
and a standard two fan configuration. The meters are designed to utilize each
compartment for high efficiency by being able to divert the product into either
the seed or fertilizer air stream. Multiple rollers are available for each meter
which gives the meter the capability of accurately dispensing every type of
product, from low amounts of canola to high rates of fertilizer. A hydraulic drive
system comes standard on all Aircart models.
Model 800 shown in with a 10 in. fill auger and optional bag lift.
WARNING! Some pictures in this Operator’s Manual
show the machine with shields removed to better show
the subject of the picture. The Seed Hawk
® aircart must
NEVER be operated with any of the shields either opened
or removed. Ensure that ALL shields are attached, closed
and in good working condition prior to operating the Seed
Hawk
® Aircart.
IMPORTANT! All references to “LEFT” or “RIGHT”, as used throughout this
Operator’s Manual, are determined by facing the direction of the machine’s
normal forward travel when in use.
3
1.3 Machine Serial Number
The serial number plate, as seen in the below picture, is located on the cradle
near the front of the aircart.
Record the machine Model and Serial Number in the spaces provided below.
Use these numbers when contacting the dealer for repair parts, warranty or
service assistance.
Model #: _________________
Serial #: _________________
