SEED HAWK ® 2014 AIRCART OPERATOR’S MANUAL SEED HAWK ® 2014 AIRCART OPERATOR’S MANUAL 30

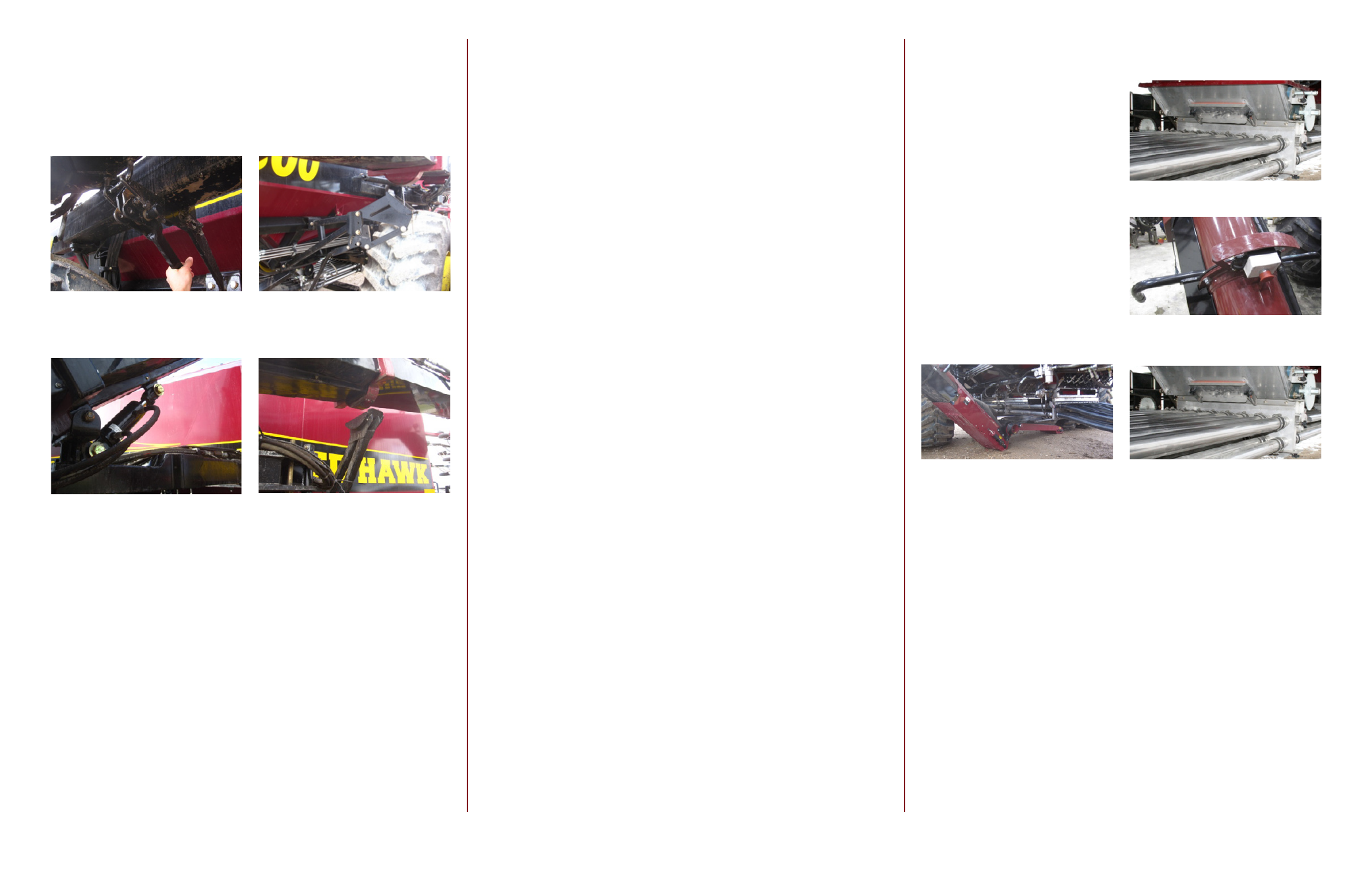

4.4.1 Positioning The Conveyor
NOTE: Ensure that the area
in the vicinity of conveyor
operation is free of obstruc-
tions and that all bystanders,
especially children, are kept
at a safe distance before
positioning or operating the
conveyor.
NOTE: If remote does not
operate properly use manual
levers provided as backup
control
2. Remove pin from outer arm lock-
ing mechanism and unlatch.
1. Ensure the tractor circuit is engaged in the correct direction prior to en-
gaging the conveyor diverter valve. If circuit is already engaged, direct the fan
diverter valve to the conveyor position from the fan setting. Use the remote
provided to move the conveyor in and out of transport.
3. Remove pin from rear locking arm,
swing out handle, and release
conveyor.
4. Maneuver conveyor, using tilt cylinder first to lift conveyor out of the front
saddle.
6. Hydraulic cylinders will hold the position so conveyor will not move even if
placed on uneven terrain.
5. Move the outer arm and then the inner arm to position conveyor where fill-
ing or emptying the Aircart is optimal. Unlatch and unfold the conveyor hopper.
31
4.4.2 Operating the Conveyor
4.4.3 Conveyor Position for Unloading Aircart
1. Ensure that all screens and shrouds
are in place and that cleanout gate on
each meter is closed.
2. Activate tractor hydraulic circuit
#4, and pull the diverter valve up to
the auger circuit.
3. Use either of the buttons located
at the top and bottom of the convey-
or to start and stop the conveyor.
1. Using the remote, rotate the con-
veyor hopper under any of the aircart
compartments in order to empty
them. 2. Loosen the cross thumb-nuts on
the cleanout gate, and slide it up to
allow product to fall between the
airstream tubes.
3. Once emptied, the bottom airstream door can be removed for complete
cleanout below the meter.
NOTE: Whether filling or
unloading the Aircart, the
auger performs at its highest
capacity when product is fall-
ing directly into the flighting.
