SEED HAWK ® 2014 AIRCART OPERATOR’S MANUAL SEED HAWK ® 2014 AIRCART OPERATOR’S MANUAL 48

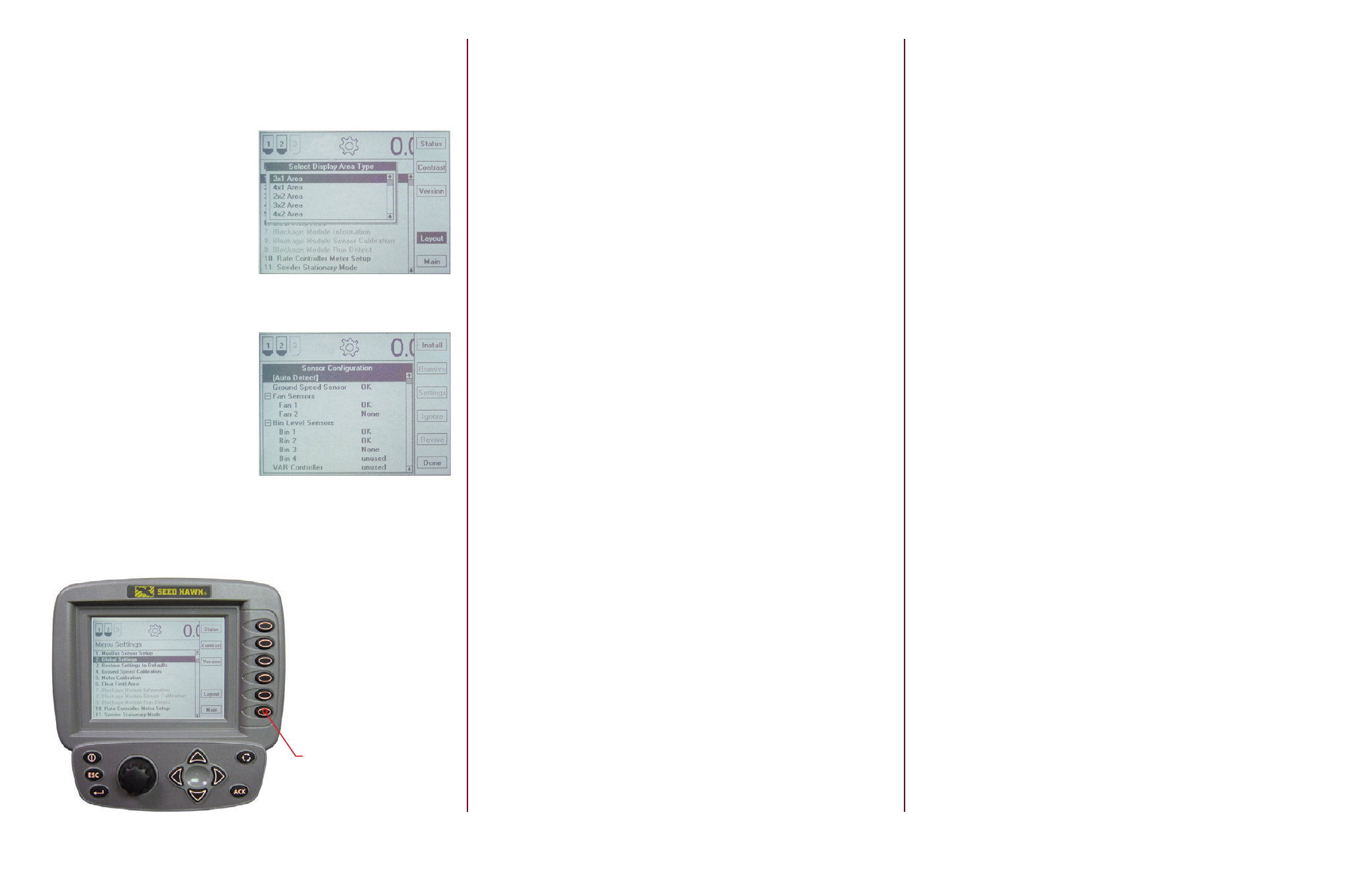

7.3.5 Layout Menu
7.3.6 MuxBus Sensor Setup Menu
This Soft Key Menu allows the user to configure the User Selectable Display
Window Layout based on the amount of information desired to be displayed.
This Soft Key Menu selection allows
the operator to access system set-
tings, calibration settings and factors,
as well as install, configure and cali-
brate all sensors and settings for the
monitor system.
Highlight your desired Layout Option
using the
Selector Knob or Navi-
gation Keys. Finalize your selection
by pressing the
Toggle or Enter
Key.
NOTE: The VAR Controller
listed is not used in this appli-
cation.
The Setup Menu is accessed from the main screen by pressing any Soft Key to
bring up the Soft Key Menu, then selecting Setup from the Soft Key Selections.
7.4 Menu Settings
NOTE: The pressure sensor
listed as a MuxBus sensor
is available but a different
sensor than the Packing
Pressure sensor. That sensor
is connected to the hydraulic
drive control module and is
communicated on the CAN
network. It is called Shank
Pressure in the layout item
select menu.
When the Setup key is
Pressed the Menu Settings
screen lists 12 choices
49
3. Restore Settings to Defaults: This is used to return all settings to factory
defaults.
5. Meter Calibration: This is used to perform stationary meter calibration
tests and enter accurate meter calibration information.
4. Ground Speed Calibration: This is used to perform a field calibration for
accurate ground speed input. The accuracy of this calibration affects application
rates, acre accumulation, and ground speed.
6. Clear Field Acres: Used to clear the field acre register.
NOTE: The total field acres
cannot be cleared from the
Menu Settings screen. To
clear the Total Acres, a USB
drive with a program to clear
the acres must be used.
10. Rate Controller Meter Setup: This menu choice displays the application
rate per meter revolution determined by the individual meter calibrations and
allows you to enter different values directly if desired. This screen is where the
pulses per revolution of the meter rotation sensor can be entered if a value
different than the factory configuration is needed and the increment rate for
on the go application rate changes is entered for each meter. This screen is also
where the low meter RPM alarm point is set
11. Seeder Stationary Mode: This menu choice allows you to enter a simu-
lated ground speed so the implement can be operated standing still to perform
operational checks and trouble shoot problems
12. Remove all sensors: This menu choice allows you to quickly unlearn all
MuxBus sensors installed on the system. This is a necessary step if it becomes
necessary to relearn the MuxBus system on a monitor that sensors installed.
2. Global Settings: Use this menu selection to set the units of measure, lan-
guage, implement width, the volume of the alarm, the backlight and contrast of
the screen, and the master switch mode
7, 8, 9. These menu items are for use with Loup Electronics blockage
monitoring and do not currently apply to the Seed Hawk monitor.
1. MuxBus Sensor Setup:
This is used to install and remove sensors that operate on the MuxBus network.
These include the ground speed sensor, the Fan sensors, the Bin Level sensors,
pressure and flow sensors.
