47 INSTRUCTION MANUAL
8-CHANNELS MODEL

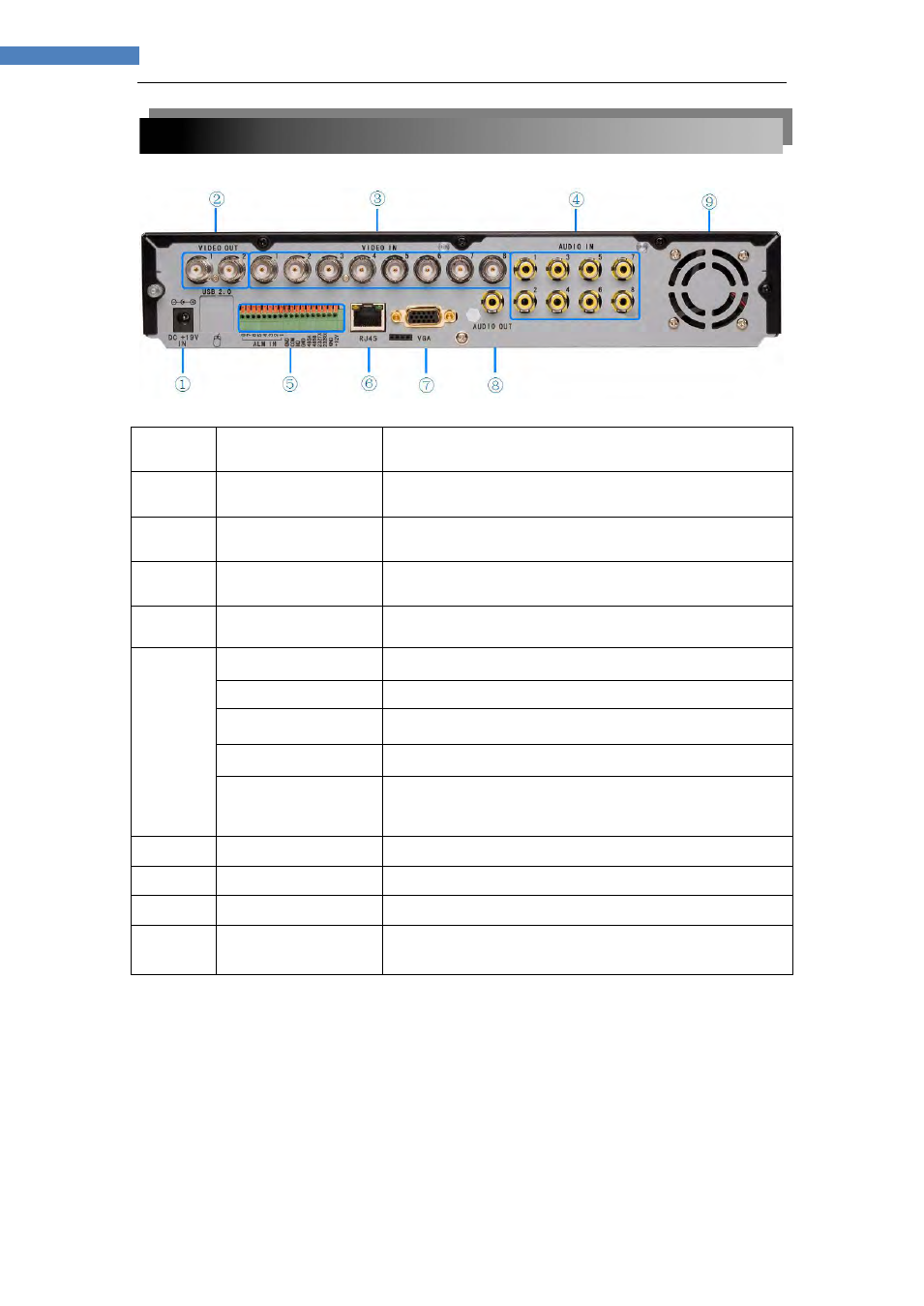

Connectors on Rear Panel
Item Physical connector Connector description
1 POWER input DC 19V/3.42A（3A）
2 Video output Two video output for connecting TV or monitor (BNC)
3 Video input For connecting analog video signal input (BNC)
4 Audio Input For connecting audio signal
5
Alarm Input 8 I/O alarm input
Alarm Output I/O output for alarm
RS485 RS 485 for connecting PTZ
RS232 For connecting PC
+12V
Power supply for DC relay and the current is 100MA
(make OK short circuit can not happen)
6 Network For connecting Ethernet
7 VGA output Optional
8 Audio output For connection audio output
9 Fan
Please check the fan function for diary maintained and
change new one if the fan has some problems
