16 INSTRUCTION MANUAL
3) Under AUDIO, select ENABLE or DISABLE. If audio recording is enabled, the
system will record audio from connected audio capable cameras (not included).
4) Under REC. MODE, select POWER UP or TIMER RECORD. If you select
POWER UP, the system will record continuously (Normal Recording) when the
system is powered on. If you select
TIMER RECORD, you have to set a
recording schedule on the system.
5) Under REC. SIZE, select 15MIN, 30MIN, 45MIN, or 60MIN.
NOTE: Record Size sets the file size for recorded video files on the system.
Instead of recording data as one large file, the system will divide the data into
blocks of 15, 30, 45, or 60 minutes. This makes the recorded data easier to
search.
6) Click APPLY. Click CLOSE in the confirmation window.
7) Click EXIT in every menu until all windows are closed.
Recording Schedule
By default, the system is set to record continuously. You can program the system to
record according to a customized recording schedule.

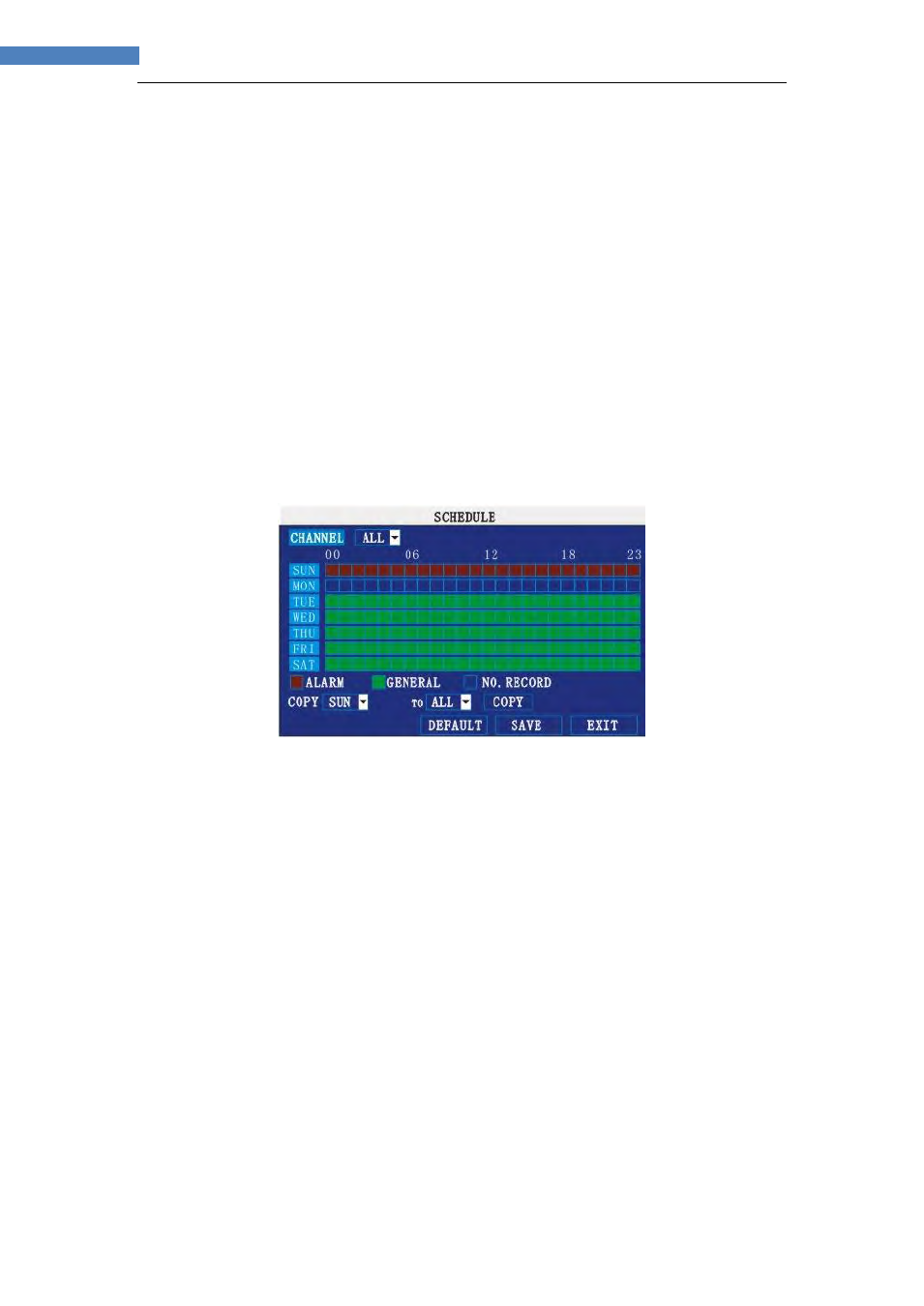

Figure 2.4.2.3.1 Recording Schedule
The Schedule Grid shows the days of the week and hours 0~23. You can set Alarm
Recording (Red), General (Normal) Recording (Green), or No Recording (Blue) to each
time block of each day.
To set a recording schedule:
1) Open the Main Menu and click RECORD.
2) Under REC. MODE, select TIMER RECORD.
3) Click SCHEDULE. The Schedule menu opens.
4) Under CHANNEL, select specific channels or select ALL.
5) Below the grid, click either ALARM (red), GENERAL (Green), or NO RECORD
(Blue) and then click a time block on the desired day.
6) Use the FROM/TO drop-down menus to copy the schedule of one day to another.
For example, if you want your schedule for Monday to be the same on Wednesday:
under FROM select MON, under TO select WED, and then click COPY.
7) Click SAVE.
8) Click EXIT in each menu until all windows are closed.
Example
You want your system to record continuously on all channels from 9 AM to 5 PM
