45 INSTRUCTION MANUAL
4. DVR INSTALLATION GUIDELINE

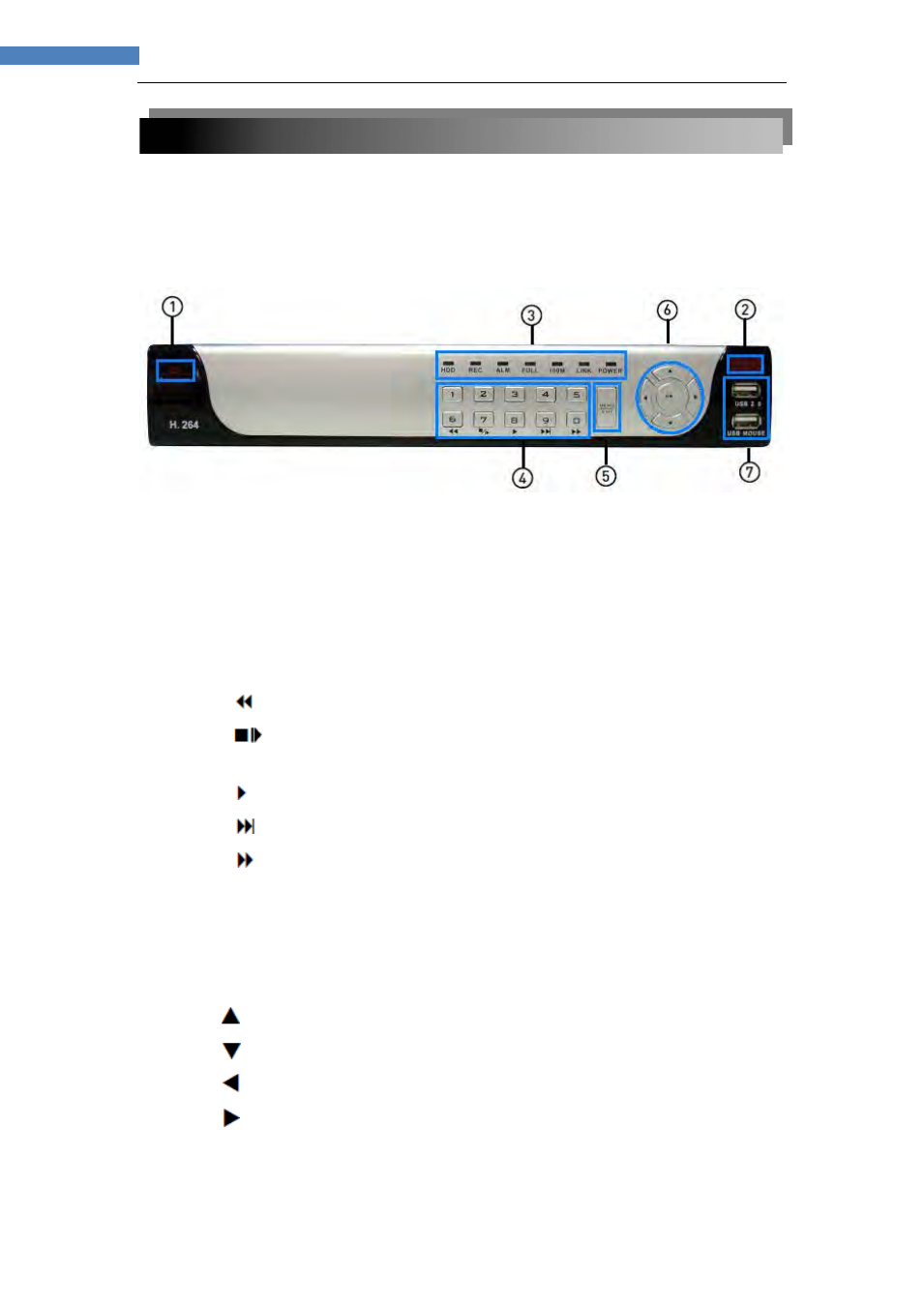

4.1 FRONT PANEL
1. THE DEFINITION OF BOTTOMS AND CONNECTORS ON FRONT PANEL
1） Power: Press to power the system ON/OFF.
2） IR Sensor: IR receiver for the remote control.
3） LED Indicators: Shows status of HDD, recording, alarm, network, and power.
4） Channel/Numbers/Playback: Press buttons 1~4 (4-channel models) or 1~8
(8-channel models) to view the selected channel in full-screen; press buttons 1~0 to input
passwords and user IDs; during playback, press the following:
• 6/ : Increase reverse playback speed 1X, 2X, 4X
• 7/ : Press to freeze playback to one frame, then press again to advance
frame-by-frame
• 8/ : Press to start playback
• 9/ : Press to slow playback speed by 1/2, 1/4, 1/8
• 0/ : Press to increase forward playback speed 1X, 2X, 4X
5） MENU/EXIT: Press to open/close the main menu.
6） Navigation/OK: Press the Navigation buttons to perform the following:
• OK: In menus, press to confirm selections; in PTZ mode, press to change the
navigation buttons to control the connected PTZ camera (not included)
• : Press to move cursor up; in PTZ mode, press to pan camera up
• : Press to move cursor down; in PTZ mode, press to pan camera down
• : Press to move cursor left; in PTZ mode, press to pan camera left
• : Press to move cursor right; in PTZ mode, press to pan camera right
7） USB: Connect a USB flash drive to the top port for data backup and firmware
upgrades connect a USB mouse to the bottom port.
