18 INSTRUCTION MANUAL
opens.
2) Choose a channel you wish to apply the Mask Field. Click NEXT PAGE if
necessary (8-channel models only). Select ON from the SWITCH drop-down
menu.
3) Click SETUP. The Mask Menu disappears and the select channel is shown in
full-screen.
4) Using the mouse, click and drag the cursor over the area you want to conceal. A
single click will produce a small black square.

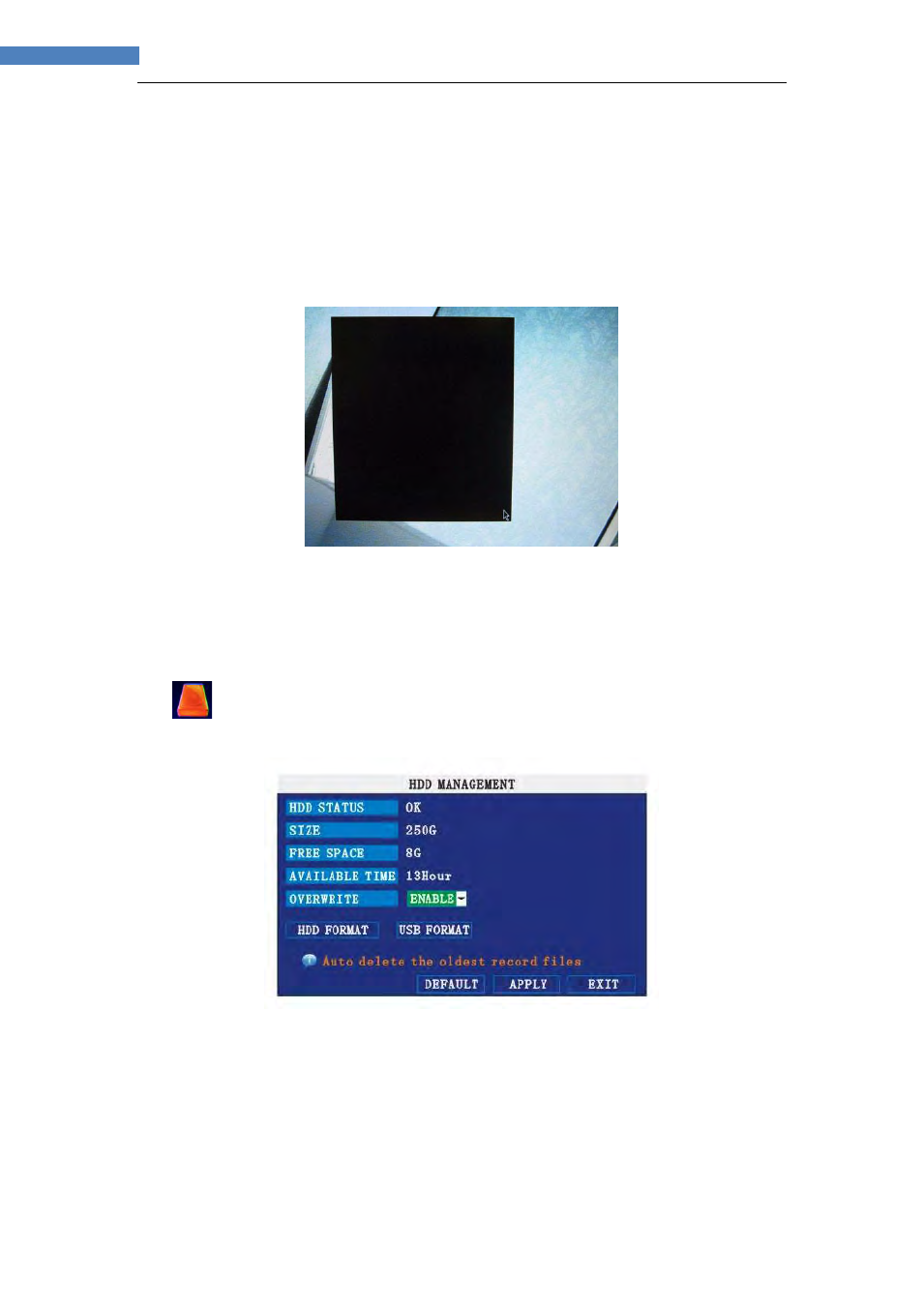

Figure 2.4.2.3.4 Mask Field
5) Right-click anywhere on the screen to return to the Mask Field menu.
6) Click
APPLY. Click CLOSE in the confirmation window.
7) Click EXIT in all menus until all windows are closed.
4 HDD MANAGEMENT
Displays essential information about the system`s internal hard drive, and lets
you format the internal HDD and external USB flash drive (not included).
Figure 2.4.2.4 HDD management menu
The HDD menu displays the following:
• HDD STATUS: The system will display "OK" for normal operation
• SIZE: The size (in gigabytes) of the internal hard disk drive. The size of your
system`s internal hard drive will vary by model
• FREE SPACE: The space (in gigabytes) remaining on the system`s internal HDD
• AVAILABLE TIME: The recording time (in hours) remaining on the HDD based on
