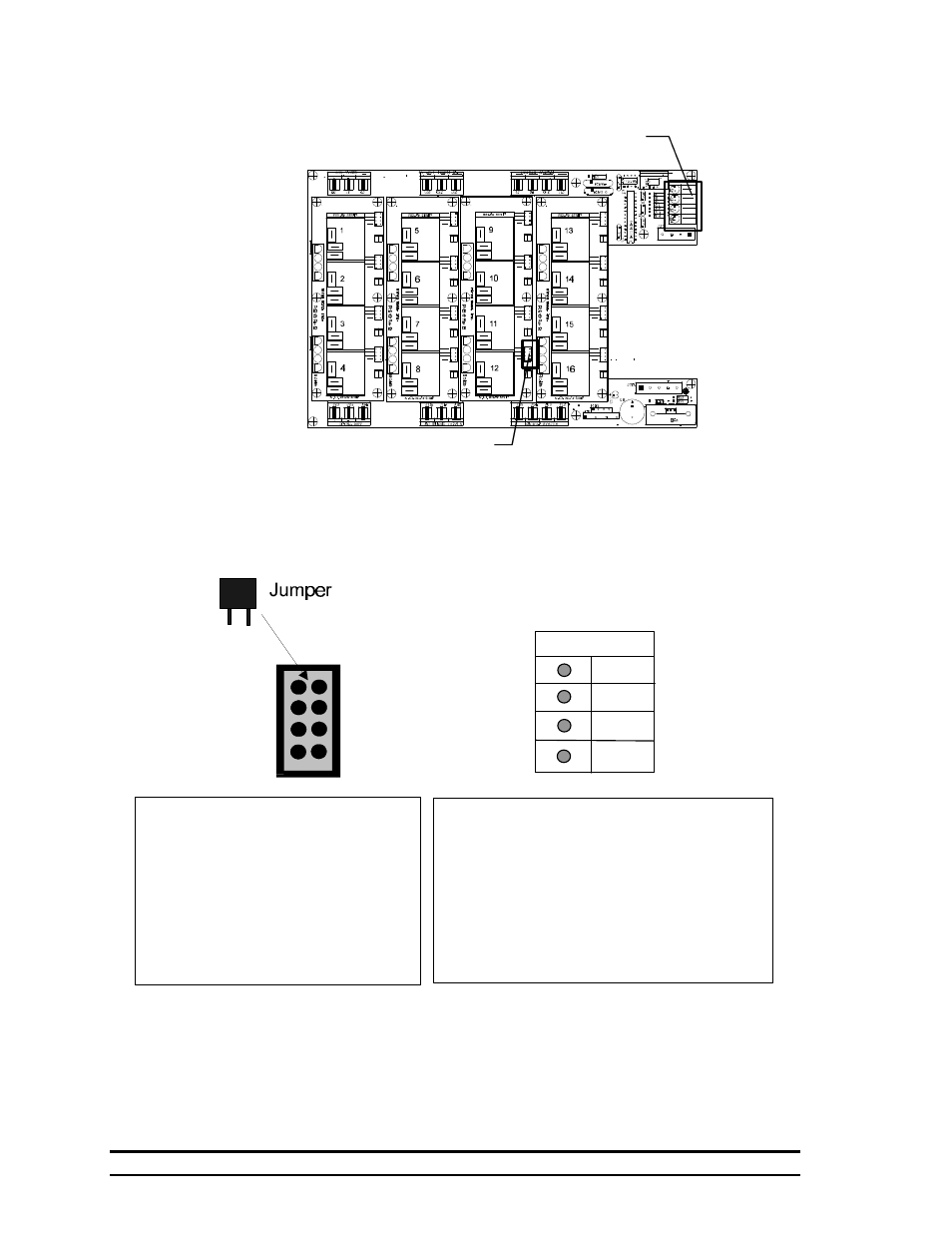

17.3 16 Stage SCS™ Panel
Back-Up Jumper Positions
(One Jumper block for each stage)
Cool 1 – Cool Negative
Cool 2 – Cool Negative Tunnel
Cool 3 – Cool Tunnel
Heat – Heat Stage
No Jumper – Stage not on Back-Up
NOTE: Jumpers must match the settings
of the Master Controller.
Inset A
Jumper Positions
Inset B
SCS Status Indicators
STATUS LEDs
Power
Normal
Receive
Transmit
LED Status Indicators
Power – Green when power applied to board.
Normal – Red when Network and Board are OK.
Receive – Red when receiving over the Local
Network. (NOTE: This LED may appear
to be on continuously)
Transmit – Red when transmitting to the Master
Controller.
COOL 3
COOL 2
COOL 1
HEAT
