Brocade VDX 8770-8 QuickStart Guide

7 of 34

Publication Number: 53-1002555-01

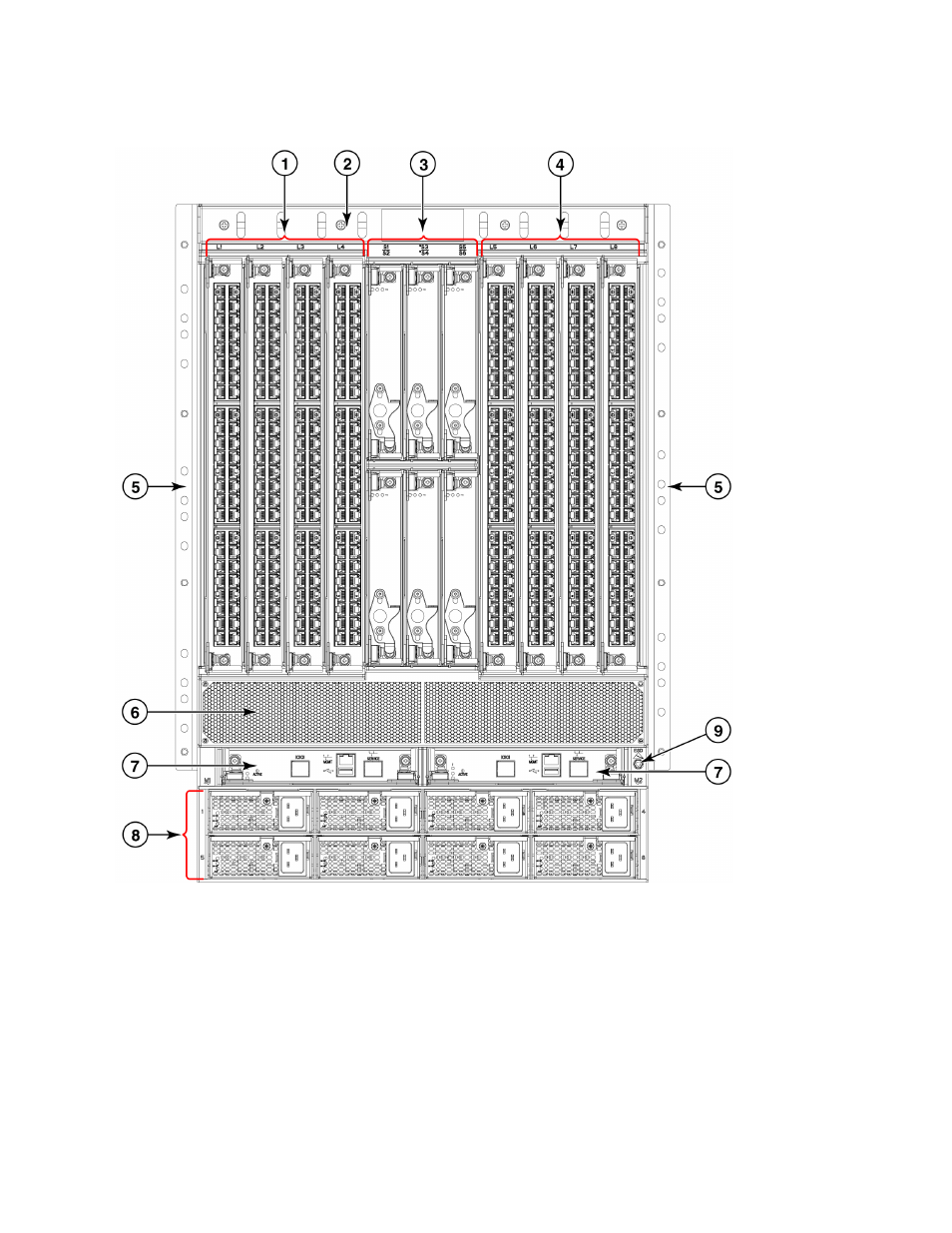

FIGURE 1

Port side of the Brocade VDX 8770-8 (sample configuration)

1

Line cards L1 through L4 (left to right)

6

Intake Vent

2

Cable management comb

7

Management modules MM1 and MM2 (left to
right)

3

Switch fabric modules S1 through S6 (odd numbers
above, even numbers below, left to right)

8

Power supplies 1 through 8 (1 through 4 above,
left to right, 5 through 8 below, left to right))

4

Line cards L5 through L8 (left to right)

9

ESD jack

5

Mounting flanges
