Brocade VDX 8770-8 QuickStart Guide

19 of 34

Publication Number: 53-1002555-01

Complete this procedure to insert a new line card.

1. Unpack the new line card and remove it from the anti-static bag.

2. Inspect the module for damage.

3. Remove the protective covers from the backplane connectors.

4. Orient the line card so that the ports are at the front of the switch.

5. Open the ejectors by rotating them toward the center of the line card face and align the flat side of the line card

inside the top and bottom rail guides in the slot. Line cards can be inserted in any of the slots labelled L1
through L8.

6. Slide the line card all the way into the slot.

7. Close the ejectors by rotating them away from the center of the line card. The levering action of the ejectors

seats the line card in the slot.

8. Tighten the captive screws using the Phillips screwdriver.

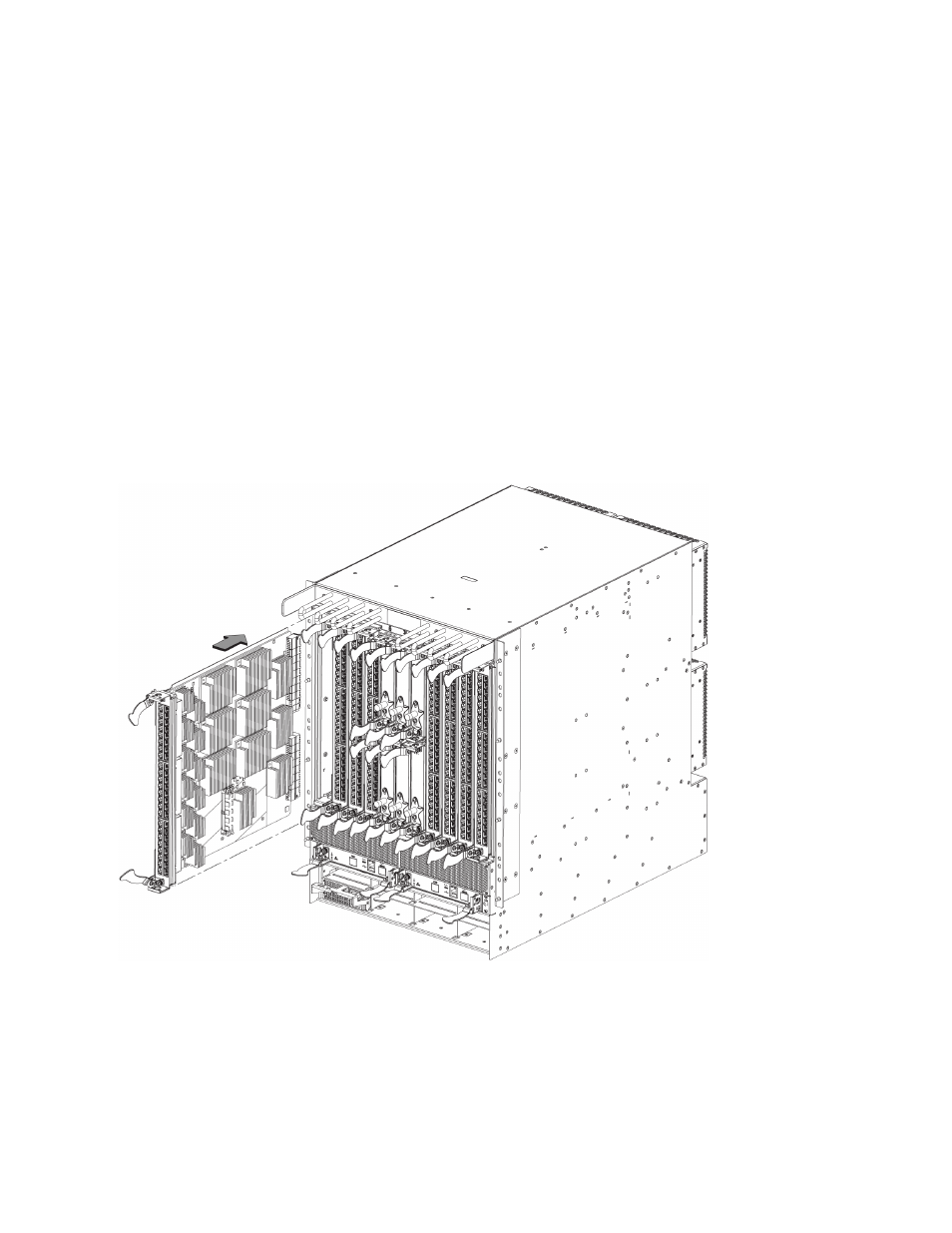

FIGURE 7

Inserting a line card (48x10G card shown)
