Brocade VDX 8770-8 QuickStart Guide

15 of 34

Publication Number: 53-1002555-01

12x40G line card module — Ports are numbered from 1 through 12 from from top to bottom when installed in
the switch. Refer to

Figure 3

.

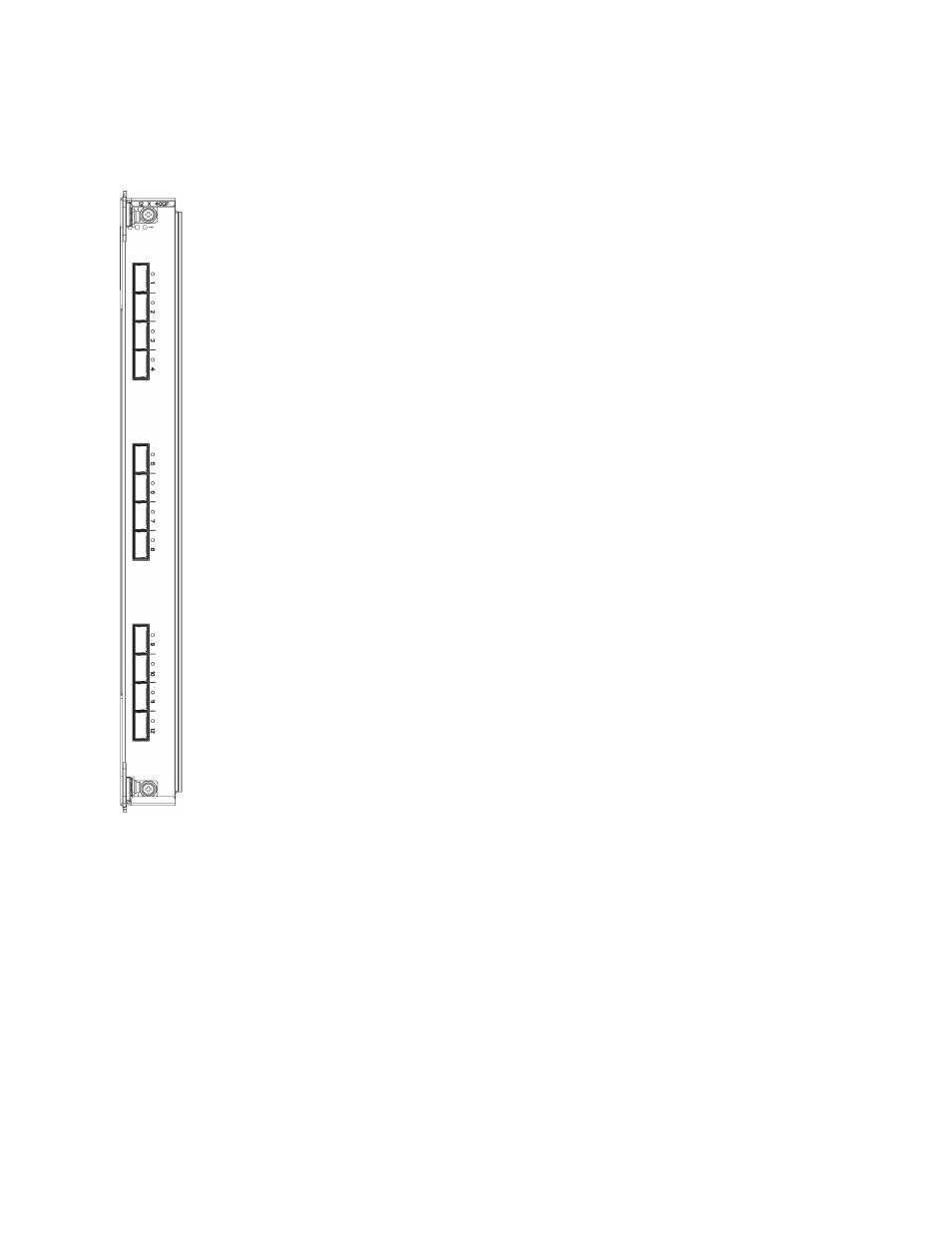

FIGURE 3

12x40G line card
