Brocade VDX 8770-8 QuickStart Guide

Publication Number: 53-1002555-01

48x1G and 48x10G line card modules — Ports are numbered from 1 through 48, from top to bottom, with the
odd-numbered ports on the right row and the even-numbered ports on the left row when installed in the switch.
Refer to

Figure 4

.

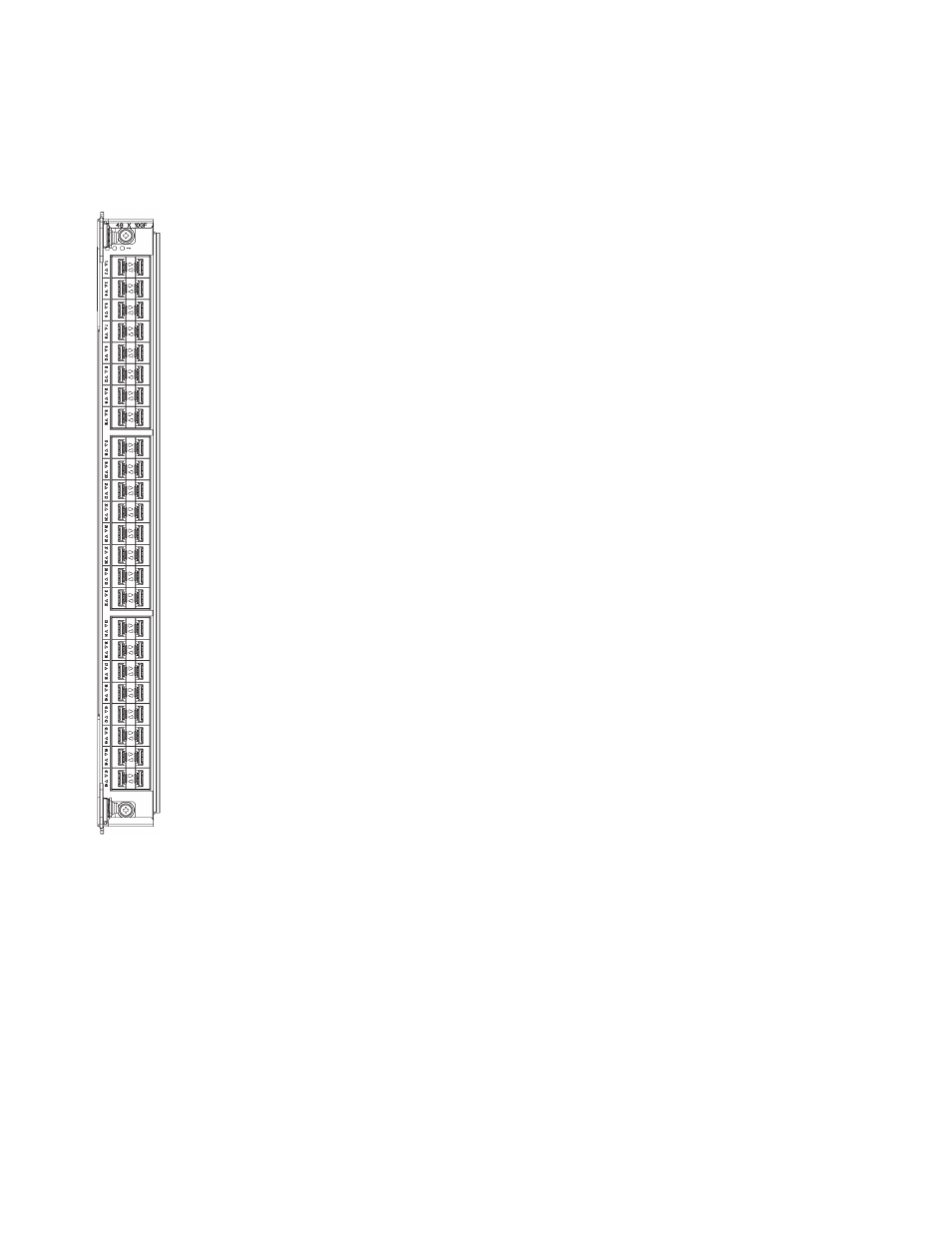

FIGURE 4

48x10G line card (48x1G line card similar)

Inserting a management module

For this procedure, refer to

“ESD precautions”

and

Figure 5

.

Complete the following steps to insert an MM.

1. Unpack the new MM and remove it from the anti-static bag.

2. Inspect the module for damage.

3. Remove the protective caps from the b ackplane connectors.

4. Rotate the ejectors toward the center of the module.
