Brocade VDX 8770-8 QuickStart Guide

17 of 34

Publication Number: 53-1002555-01

5. Align the module pan with the guides in the slot. The first MM should be installed in slot M1.

6. Slide the MM into the slot until it is firmly seated.

7. Rotate the ejectors away from the center of the module face until the module is tight in the slot.

8. Tighten the captive screws using the Phillips screwdriver.

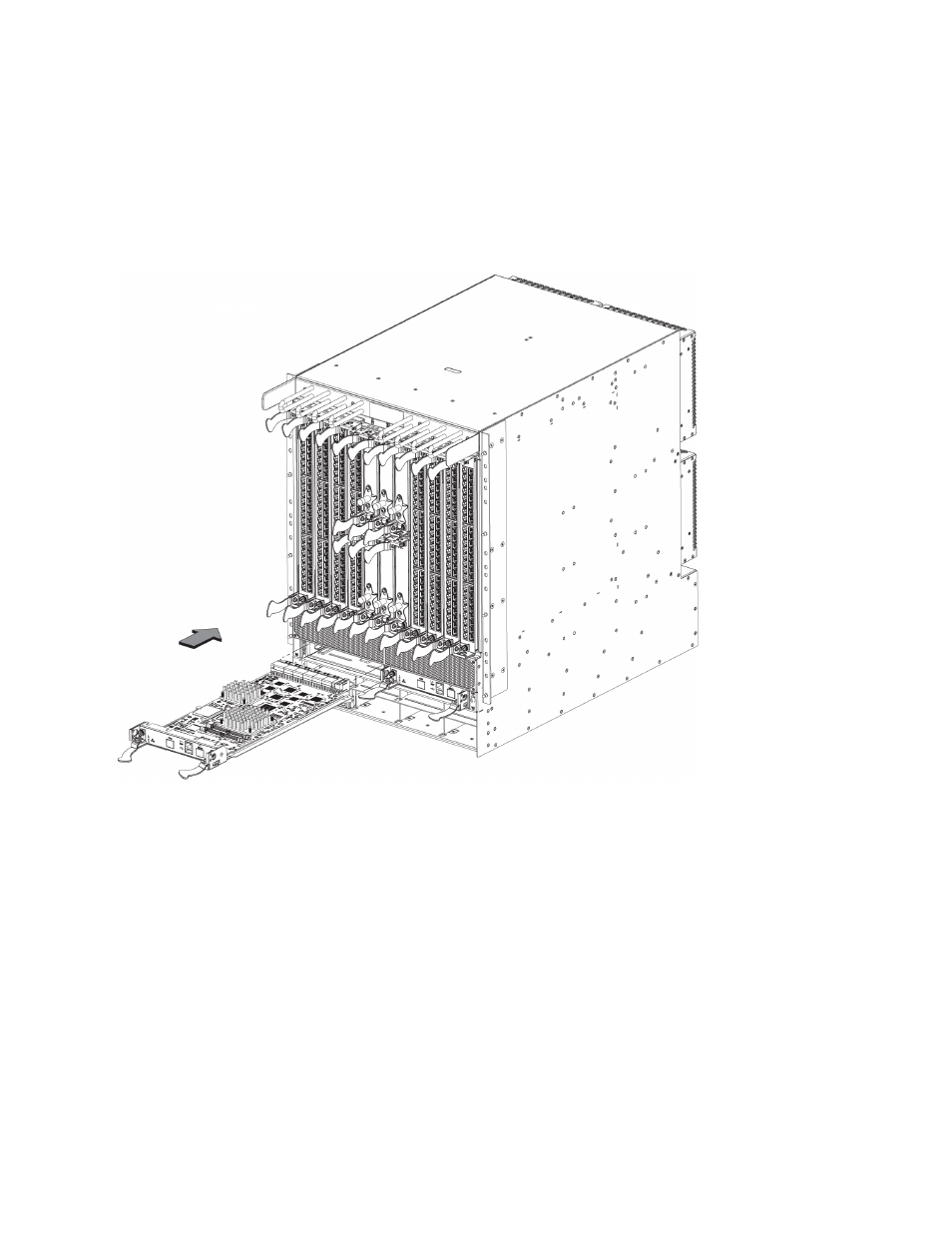

FIGURE 5

Inserting a management module

Inserting a switch fabric module

For this procedure, refer to

“ESD precautions”

and

Figure 6

.

Complete the following steps to insert the SFM.

1. Unpack the new SFM and remove it from the anti-static bag.

2. Inspect the module for damage.

3. Remove the protective caps from the backplane connectors.

4. Unscrew the power enable pin, pull it outward, and move the slider toward the center of the module face.
