6. OPERATION VIA BRAIN TERMINAL

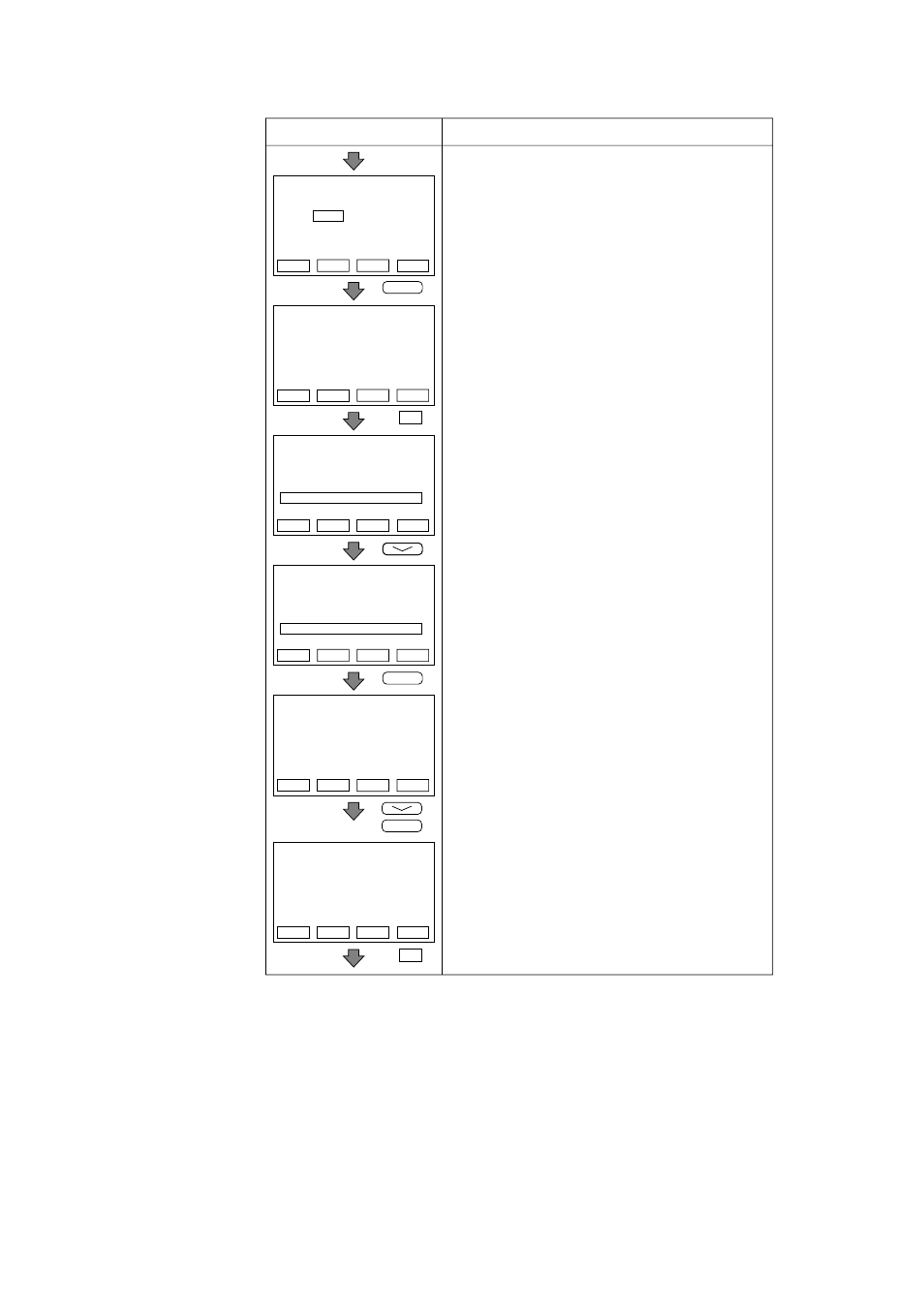

Display Description
Press ENTER key twice at an interval of a few seconds.
The display as shown on the left appears.
If the data is correct, press F4 key [OK].
The parameter panel is displayed again.
Select “B04:FLOW UNIT” by feeding the page with the arrow key.
Press ENTER key to display the data setup panel.
Select “m 3 ” with the arrow key and press ENTER key twice at an
interval of a few seconds. Default:m
(If the security panel appears, enter the security code.*)
PARAM
B01: TAG NO
B02: DAMPING
3.0 S
B03: FLOW SPAN
30.0 m/s
DATA DIAG ESC
SET
B03:FLOW SPAN
1.00 m/s
30.0
DEL CLR ESC
SET
B03:FLOW SPAN
30.0 m/s
PARAM
B02: DAMPING
3.0 S
B03: FLOW SPAN
30.0 m/s
B04: FLOW UNIT
m
DIAG DATA ESC
SET
B04:FLOW UNIT
m
< km3 >
< m3 >
< l >
< cm3 >
ESC
ENTER
ENTER
× 2
NO OK
F4
ENTER × 2
SET
B04:FLOW UNIT
m3
NO OK
F4 If the data is correct, press the F4 key [OK].
*km : 10 3 X m
cm : (10 -2 X m)
3 3
3 3
* For entry of the security code, see IM1C0A11-01E.
