4.2.4 Alarm Display Mode
• When an alarm occurs, a content of the alarm is shown as an alarm code number.
However, this mode is available during the Flow Rate Display Mode.
In this mode, alarm number and flow rate are shown alternately.
For example;

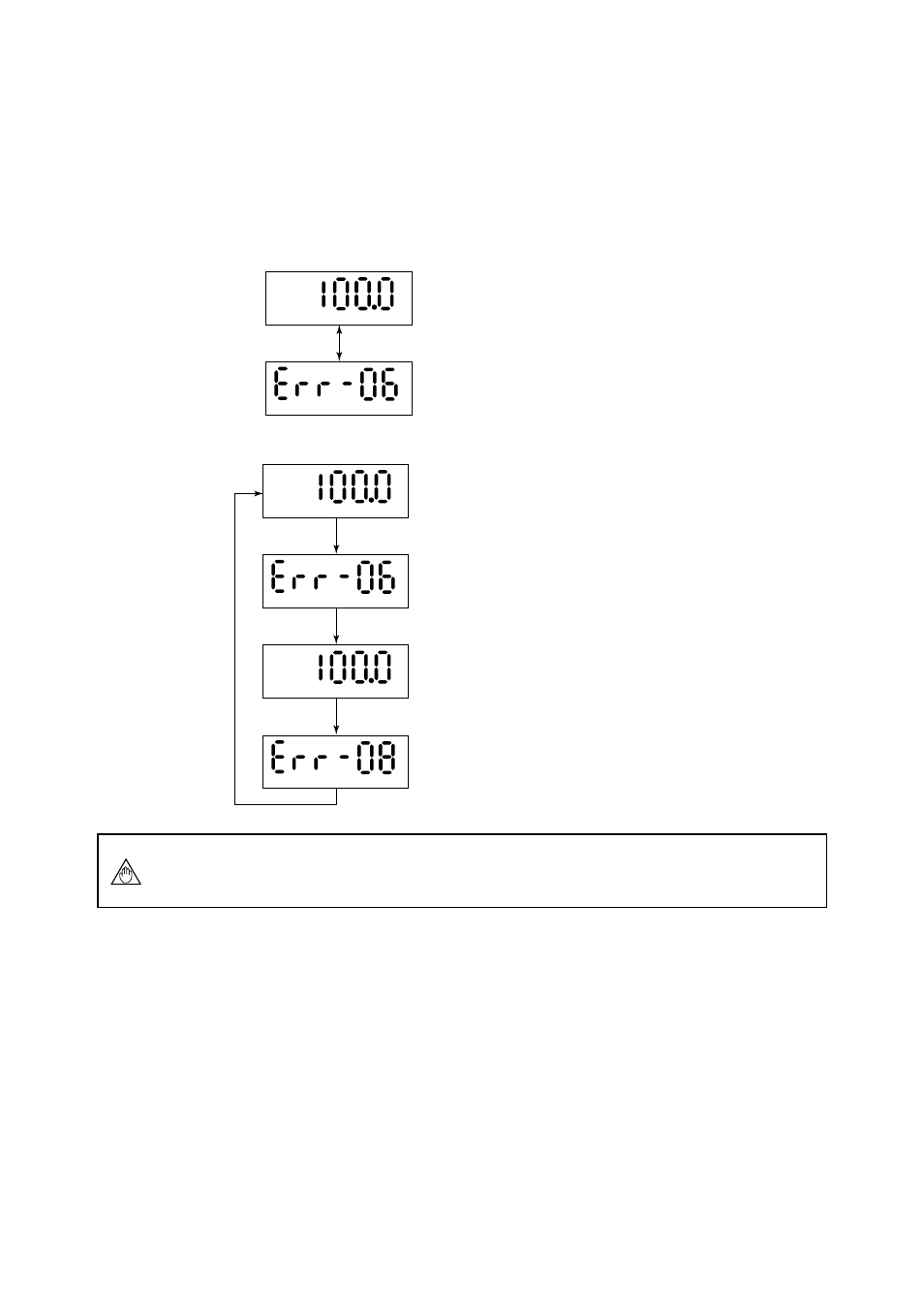

• When alarm No. 6 is raised.
%
<< Flow Rate is indicated for 4 sec.
<< Alarm No. is indicated for 2 sec.
• When alarm No.6 and No.8 are raised at the same time.
%
%
<< Flow Rate is indicated for 4 sec.
<< Alarm No.6 is indicated for 2 sec.
<< Flow Rate is indicated for 4 sec.
<< Alarm No.8 is indicated for 2 sec.
For further description of the alarm functions, please refer to “Chapter 8.2 Self-
diagnostics Functions”.
NOTE
