Create RAID Volume
To recreate the RAID system as Mirrored = RAID1 use the CREATE VOLUME
MENU:

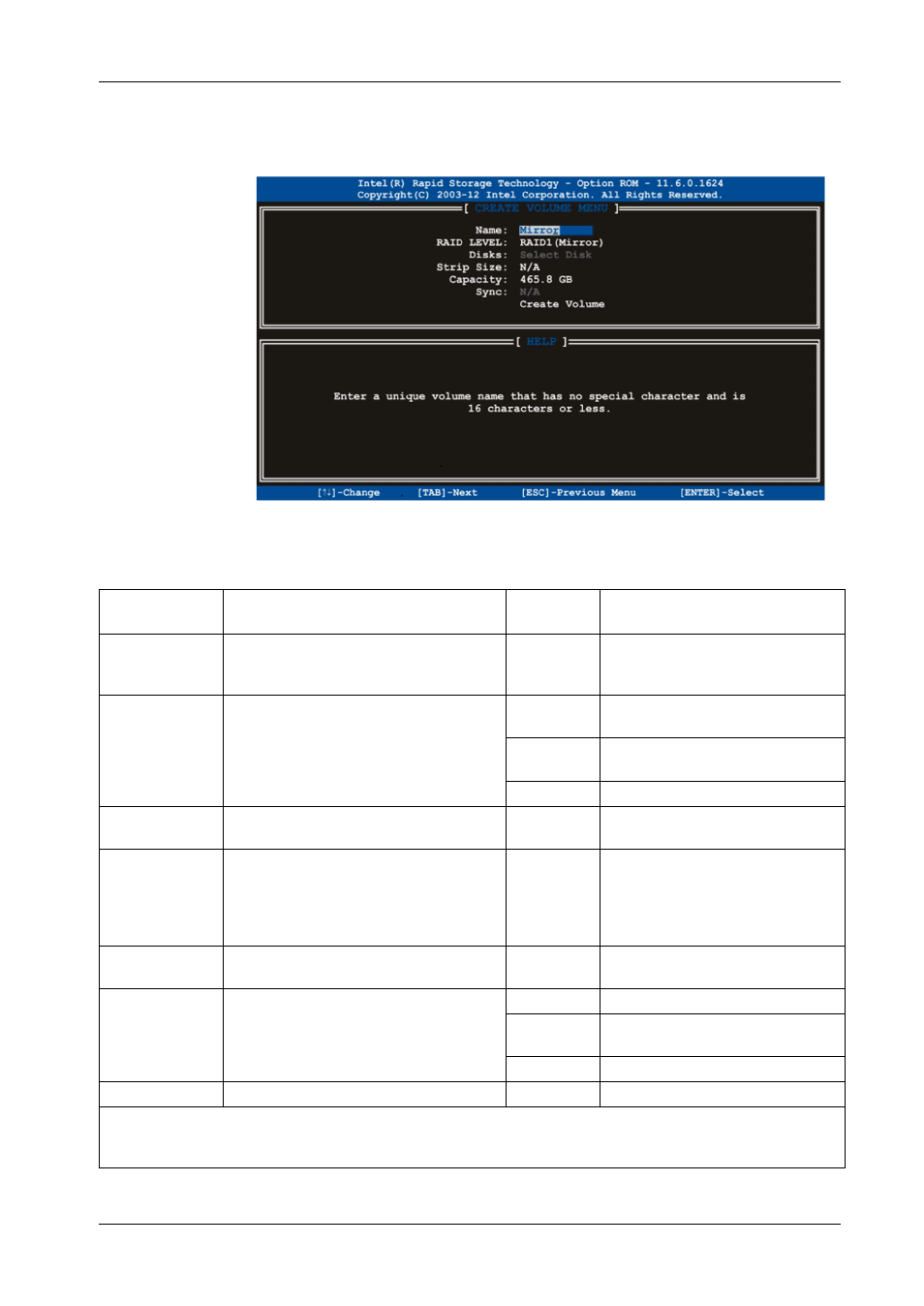

The table shows the Configuration Utility - Create RAID volume:
Parameter Description Setting
Options Effect
Name Option for entering the RAID name. Name with
up to 16
characters Assigns a name to the RAID volume.
RAID Level Option for setting the RAID level. RAID0
(Stripes) Creates RAID0.
RAID1
(Mirror) Creates RAID1.
Recovery Creates recovery RAID.
Disk 1 Specifies the installed hard disks as either
Master or Recovery. Master,
Recovery Defines the hard disks as Master or
Recovery.
Strip Size
2 Option for configuring the size of data
blocks. 4 kB, 8 kB,
16 kB,
32 kB,
64 kB,
128 kB Configures the size of the data block.
Capacity Option for configuring the RAID capacity. – Configures the memory size of the
RAID.
Sync
3 Option for configuring RAID
synchronization. N/A –
Continuous Automatically synchronizes the
RAID.
On request Manually synchronizes the RAID.
Create Volume Creates the RAID volume. – Creates the RAID volume.
1) This setting is only possible if RAID level is set to Recovery.
2) This setting is only possible if RAID level is set to RAID0(Stripe).
3) This setting is only possible if RAID level is set to Recovery.
