AFL-F08A-N270 Panel PC
Page 27

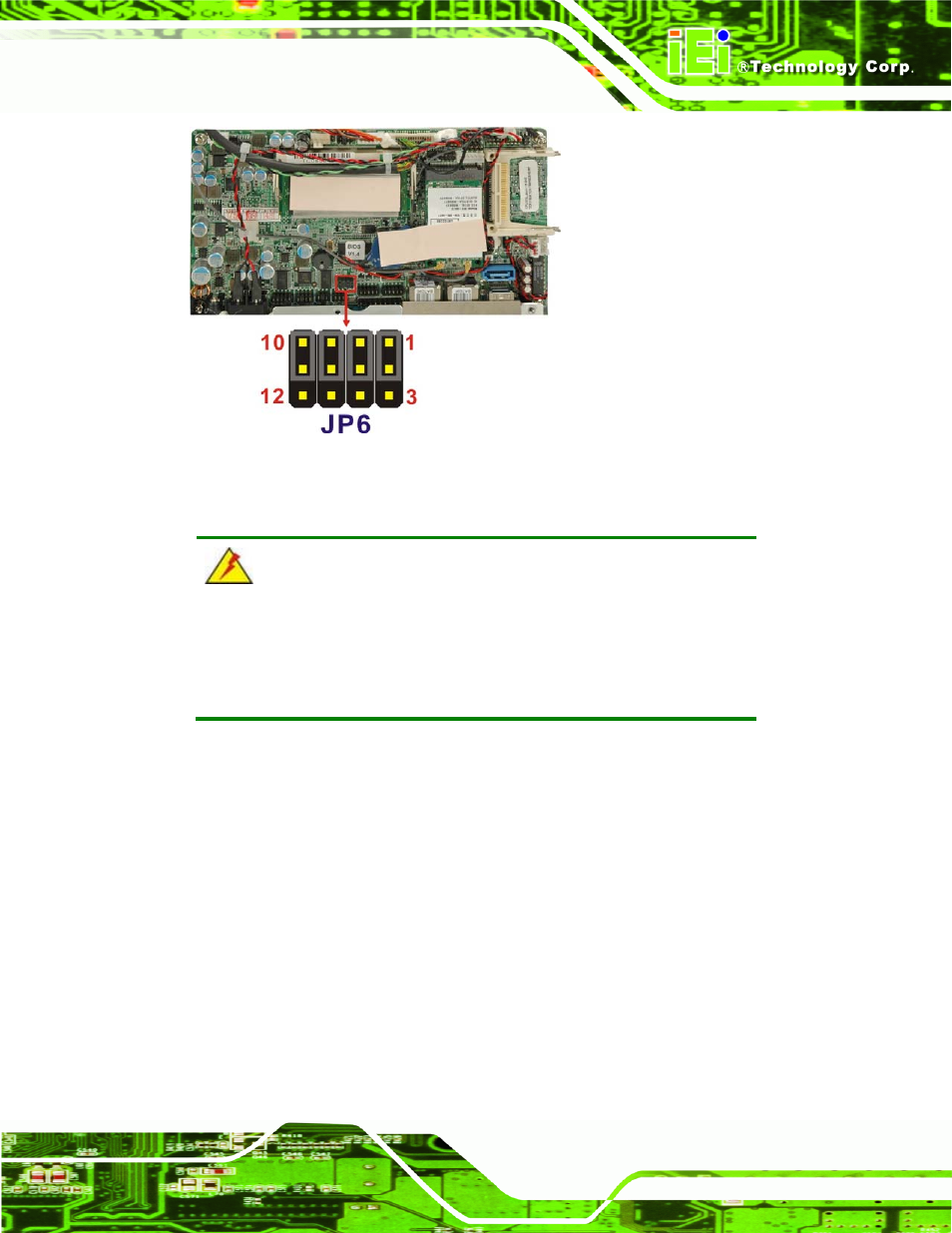

Figure 3-12: COM3 RS-232/422/485 Serial Port Select Jumper Location
3.8 Mounting the System
WARNING!
When mounting the system onto an arm, onto the wall or onto a panel,
it is better to have more than one person to help with the installation to
make sure the panel PC does not fall down and get damaged.
Available mounting methods are listed in the subsections below.
3.8.1 Wall Mounting
To mount the system onto the wall, please follow the steps below.
Step 1: Select the location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four screw holes in the bracket on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
