AFL-F08A-N270 Panel PC
Page 105
NOTE:
Please reserve enough space for partition 3 for saving recovery
images.

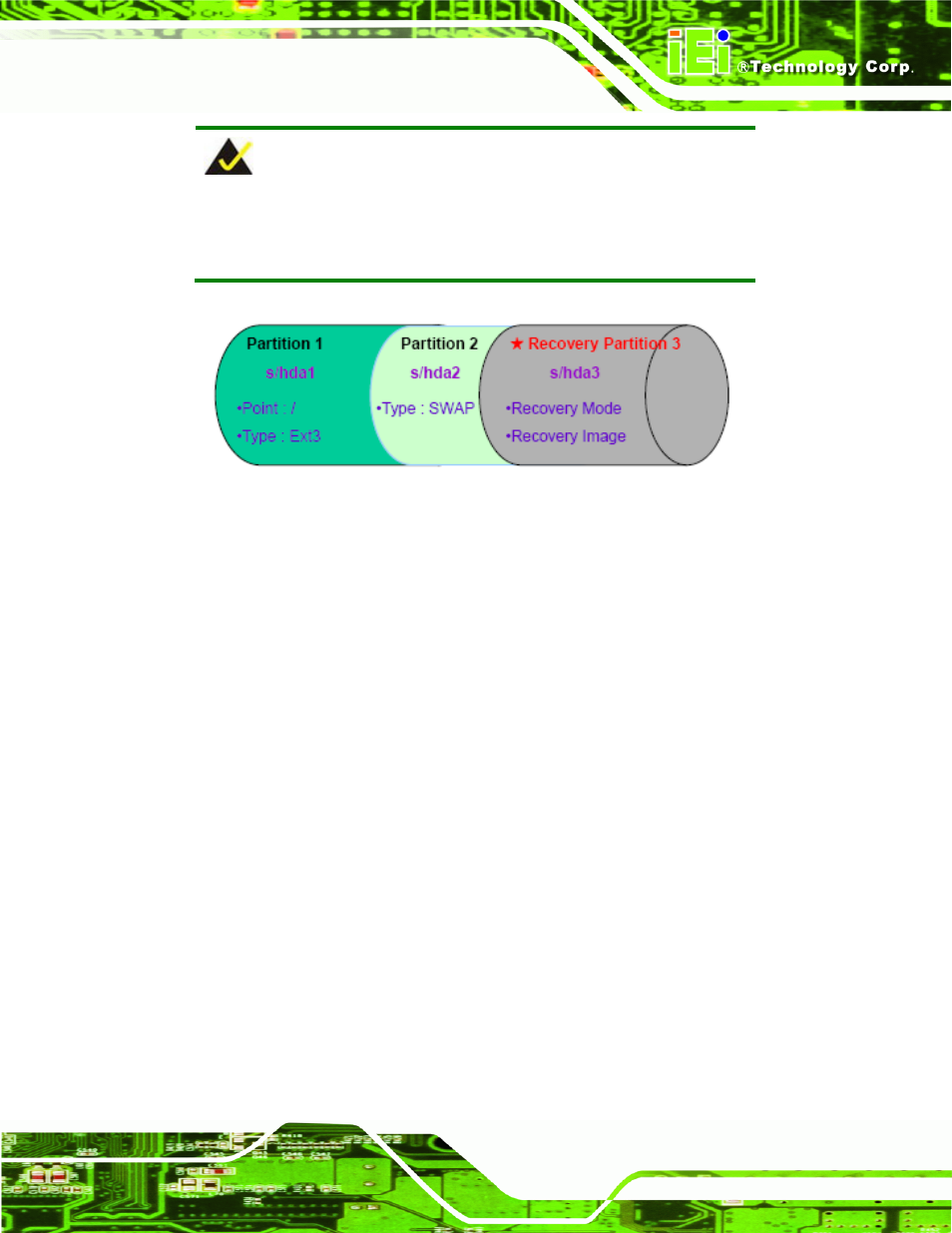

Figure B-22: Partitions for Linux
Step 3: Create a recovery partition . Insert the recovery CD into the optical disk drive.
Follow Step 1 ~ Step 3 described in Section
786H786H643H643H
B.2.2 . Then type the following
commands (marked in red) to create a partition for recovery images.
system32> diskpart
DISKPART> list vol
DISKPART> sel disk 0
DISKPART> create part pri size= ___
DISKPART> assign letter=N
DISKPART> exit
system32> format N: /fs:ntfs /q /v:Recovery /y
system32> exit
Step 4: Build-up recovery partition . Press any key to boot from the recovery CD. It will
take a while to launch the recovery tool. Please be patient. When the recovery
tool setup menu appears, type <3> and press (
787H787H644H644H
Figure B-23 ). The
Symantec Ghost window appears and starts configuring the system to build-up a
recovery partition. After completing the system configuration, press any key to
reboot the system. Eject the recovery CD.
