AFL-F08A-N270 Panel PC
Page 22
Clear CMOS Description
Short 1 - 2 Keep CMOS Setup Default
Short 2 - 3 Clear CMOS Setup
Table 3-3: Clear CMOS Jumper Settings

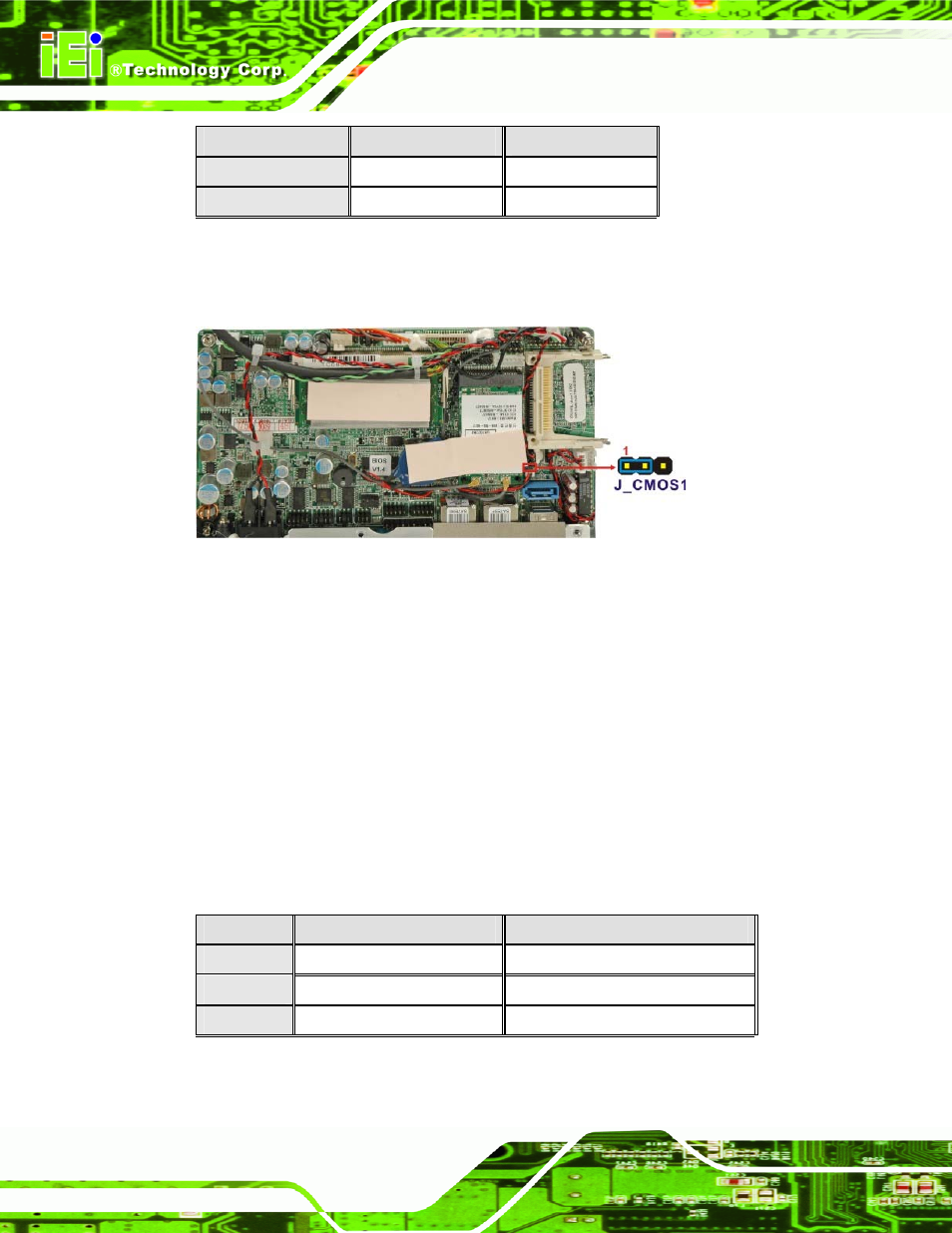

The location of the clear CMOS jumper is shown in
516H516H
Figure 3-8 below.
Figure 3-8: Clear CMOS Jumper
3.7.5 COM Port Pin 9 Select
Jumper Label: JP8 and JP10
Jumper Settings: See
517H517H
Table 3-4
Jumper Location: See
518H518H
Figure 3-9
Two jumpers (JP8 and JP10) configure pin 9 on COM1 and COM3 DB-9 connectors. Pin 9
on the COM1 and the COM3 DB-9 connectors can be set as the ring (RI) signal, +5 V or
+12 V. The COM1 and COM3 Pin 9 Setting jumper selection options are shown in
519H519H
Table
3-4 .
JP8 Description
Short 1-3 COM1 RI Pin use +12 V
Short 5-7 COM1 RI Pin use +5 V
Short 7-9 COM1 RI Pin use RI Default
Table 3-4: COM1 Pin 9 Setting Jumper Settings
