AFL-F08A-N270 Panel PC

Page 17

Step 1:

Undo the CompactFlash® cover fastening screw.

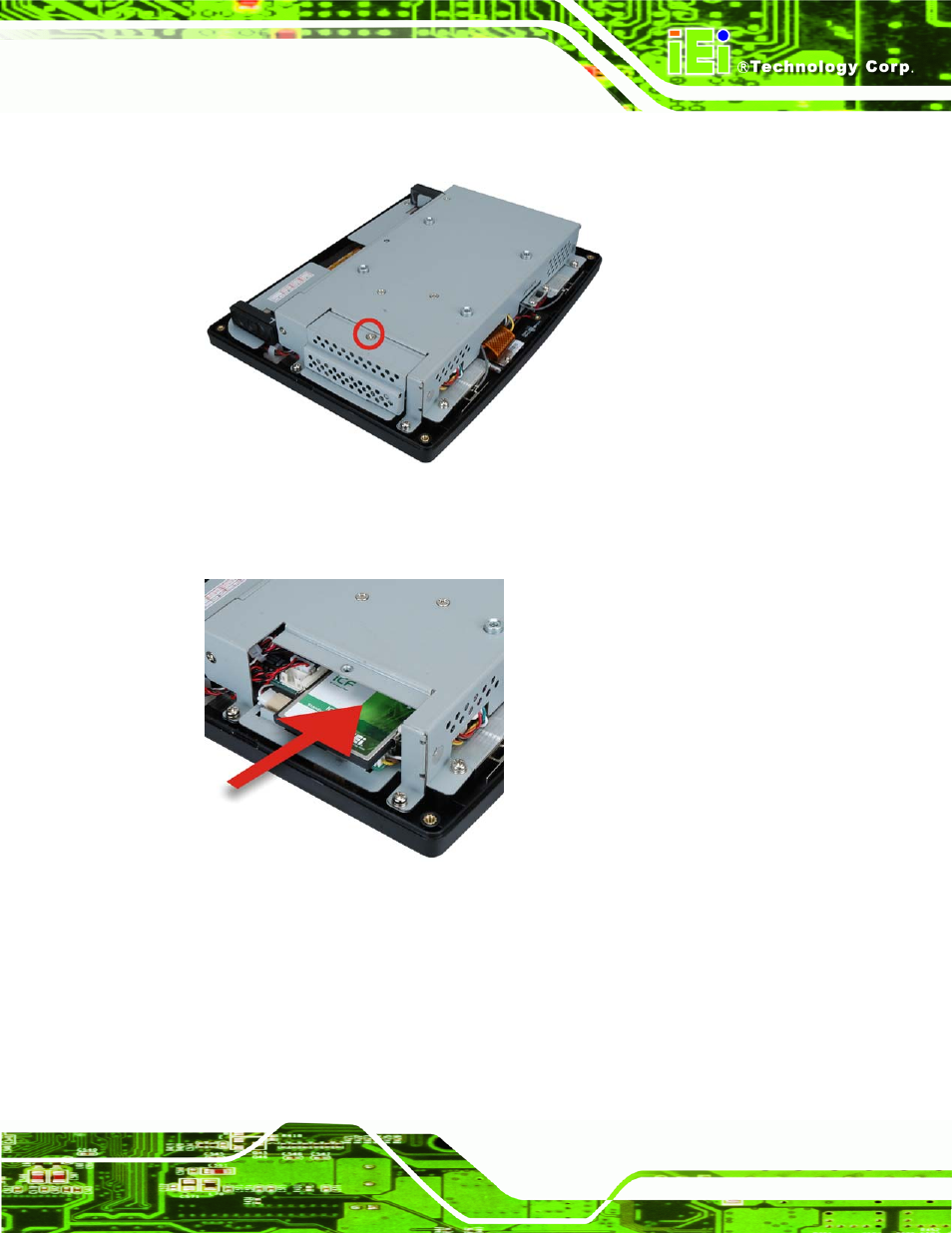

Figure 3-3: CompactFlash® Card Cover

Step 2:

Slide the CompactFlash® card into the slot under the cover.

Figure 3-4: CompactFlash® Install

Step 3:

Once installed, replace the cover and screw.

Step 0:

3.6 Internal Cover Removal

To change jumper settings and to access most internal parts, the internal aluminum cover

needs to be removed. To remove this cover, please follow the steps below.
