AFL-F08A-N270 Panel PC
Page 3
1.2 Features
There are four models in the AFL-F08A-N270. Both models feature the following:
ƒ 1.6 GHz Intel® Atom™ N270 processor
ƒ Intel® 945GSE and ICH7-M chipset
ƒ Up to 2 GB One 1.0 GB 533 MHz DDR2 SDRAM SO-DIMM pre-installed
(supports up to 2.0 GB 533/400 MHz DDR2 SDRAM)
ƒ 802.11 b/g/n wireless module
ƒ Two USB 2.0 ports
ƒ IP 64 compliant front panel
ƒ Touch screen (multitouch or standard)
ƒ Bluetooth
ƒ RoHS compliance
1.3 Front Panel
The front side of the AFL-F08A-N270 is a flat panel TFT LCD screen surrounded by an
ABS/PC plastic frame. The overview of the front panel is shown below.

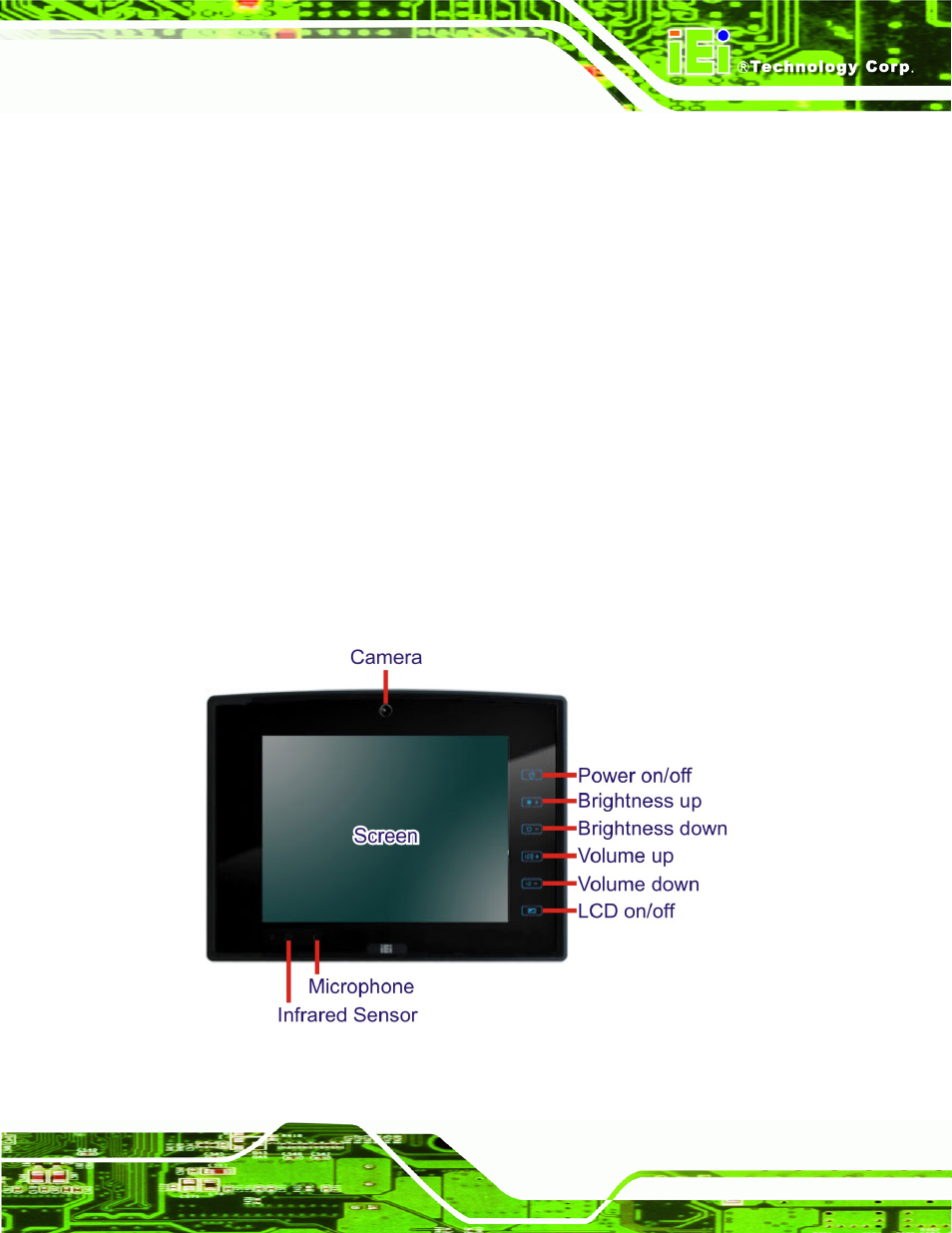

Figure 1-2: AFL-F08A-N270 Front View
