Step 1:

Remove the retention screws and lift the cover off the flat panel PC.

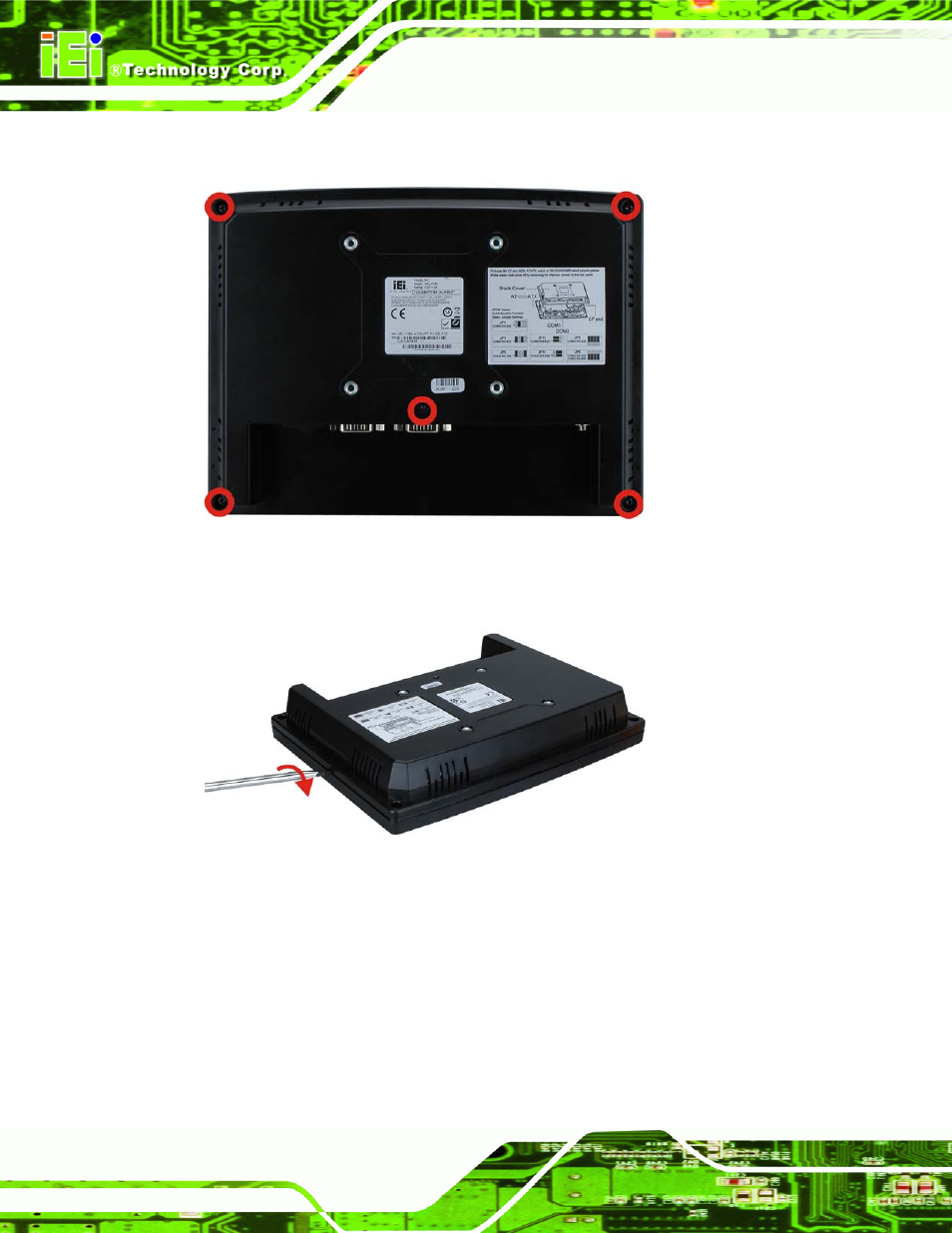

Figure 3-1: Back Cover Retention Screws

Step 2:

Use a screwdriver to gently pry the edges of the system loose.

Figure 3-2: Pry The Rear Cover Off

Step 3:

The cover will come off easily. Slide down slightly to clear the serial port

connectors.

Step 0:

3.5 CF Card Installation

To install the CompactFlash® card, the cover plate must be removed. To remove the cover

plate and install the CompactFlash® card, follow the instructions below.
