AFL-F08A-N270 Panel PC
Page 5

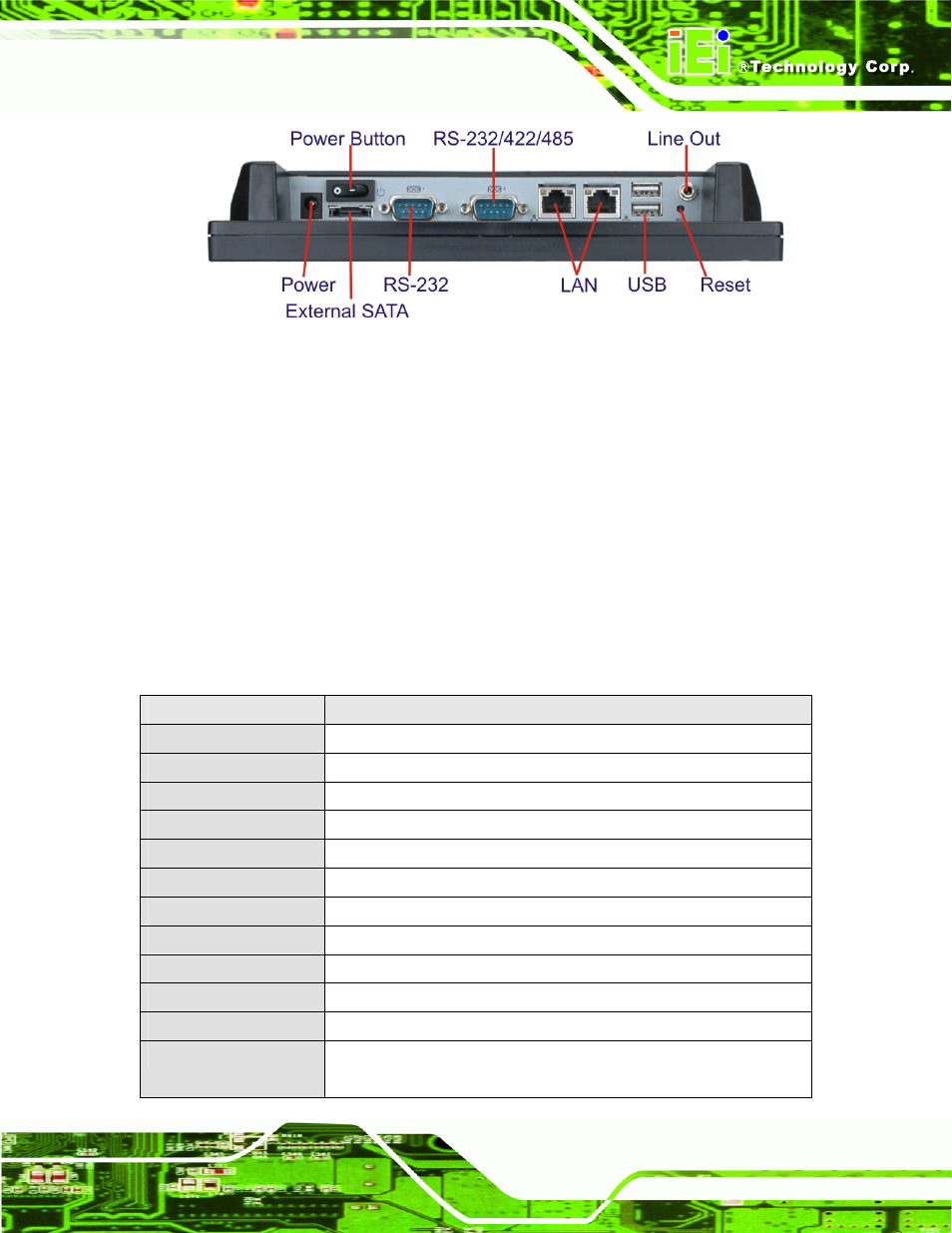

Figure 1-4: AFL-F08A-N270 I/O Interface Connector Panel
1.6 Internal Overview
The AFL-F08A-N270 has the following components installed internally:
ƒ 1 x Motherboard
ƒ 1 x 1.0 GB 533 MHz DDR2 SDRAM SO-DIMM
ƒ 1 x Wireless module
ƒ 1 x Bluetooth module
1.7 System Specifications
The technical specifications for the AFL-F08A-N270 systems are listed in
509H509H
Table 1-1.
Specification Description
LCD Size 8"
Max. Resolution 800 x 600
Contrast Ratio 500:1
Brightness (cd/m 2 ) 250
LCD Color 262K
Pixel Pitch (H x V) (mm) 0.2025 x 0.2025
Viewing Angle (H-V) 140°/130°
Backlight MTBF 30000 hours (LED)
SBC Model AFLMB-945GSE-N270
CPU 1.6 GHz Intel® Atom™ N270
Chipset Intel® 945GSE + ICH7M
Memory One 1.0 GB 533 MHz DDR2 SDRAM SO-DIMM pre-installed (supports up to
2.0 GB 533/400 MHz DDR2 SDRAM)
