PPC-5xxx-9455 Panel PC

Page 65

Rack/Cabinet Bracket

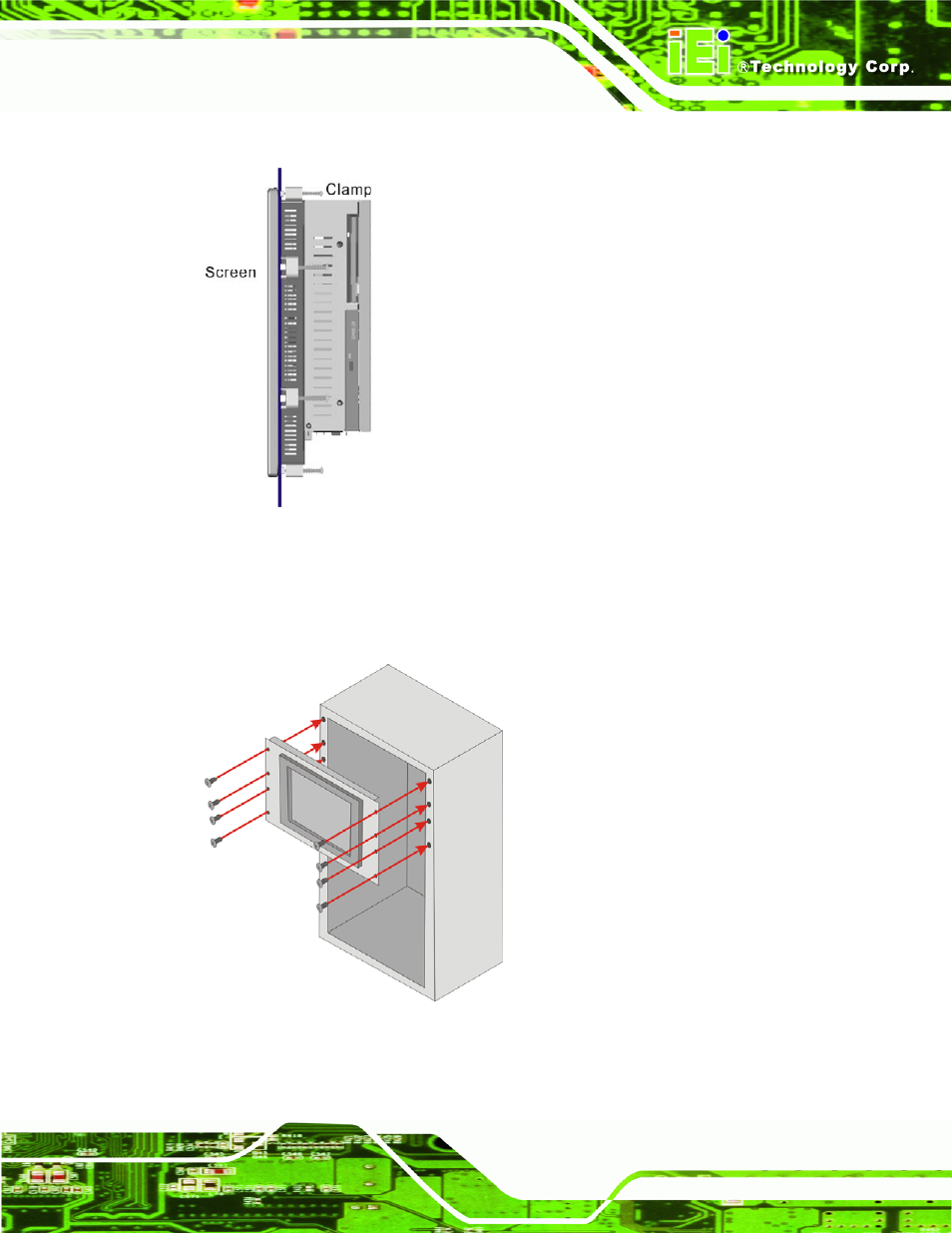

Figure 4-24: Secure the Rack/Cabinet Bracket

Step 4:

Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet

(Figure 4-25).

Figure 4-25: Install into a Rack/Cabinet
