PPC-5xxx-9455 Panel PC
Page 6
1.2.4 Bottom Panel
The bottom panel shown in Figure 1-5 has the following interfaces:
ƒ 1 x Power input connector
ƒ 1 x Power switch
ƒ 4 x USB connectors
ƒ 1 x Reset button
ƒ 2 x RJ-45 GbE connectors
ƒ 1 x PS/2 mouse connector
ƒ 1 x PS/2 keyboard connector
ƒ 5 x Serial port (COM) connectors
ƒ 1 x PCI add-on card slot
ƒ 1 x Parallel port connector
ƒ 3 x Audio jacks
ƒ 1 x VGA connector
ƒ 1 x CompactFlash® slot

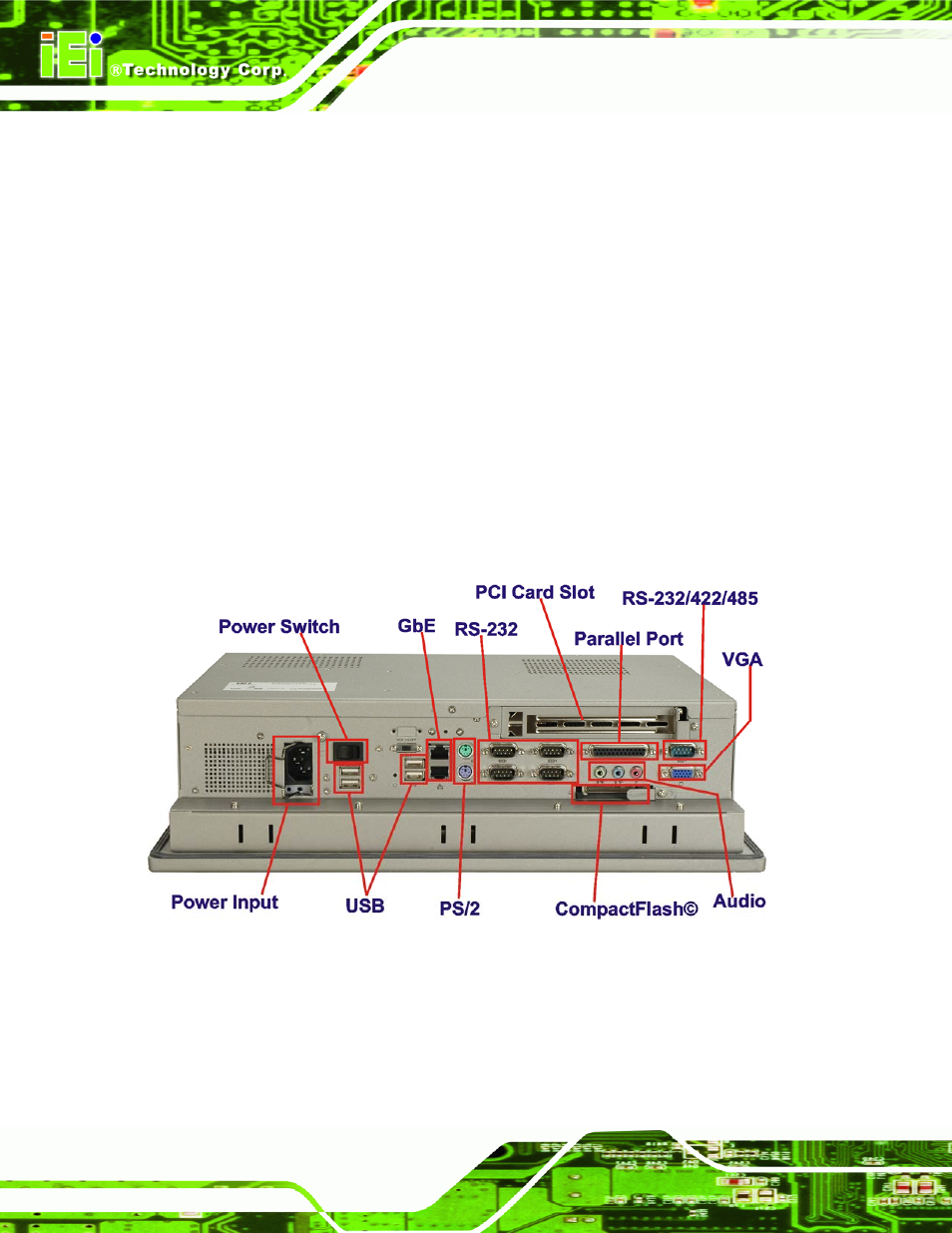

Figure 1-5: Bottom View
