PPC-5xxx-9455 Panel PC

Page 49

4.6.1 Hard Drive Installation

To install a HDD, please follow the steps below:

Step 1:

Remove the back cover (Section 4.4).

Step 2:

The HDD bracket is attached to the elevated platform by four retention screws.

Remove the four retention screws from the elevated platform (Figure 4-2).

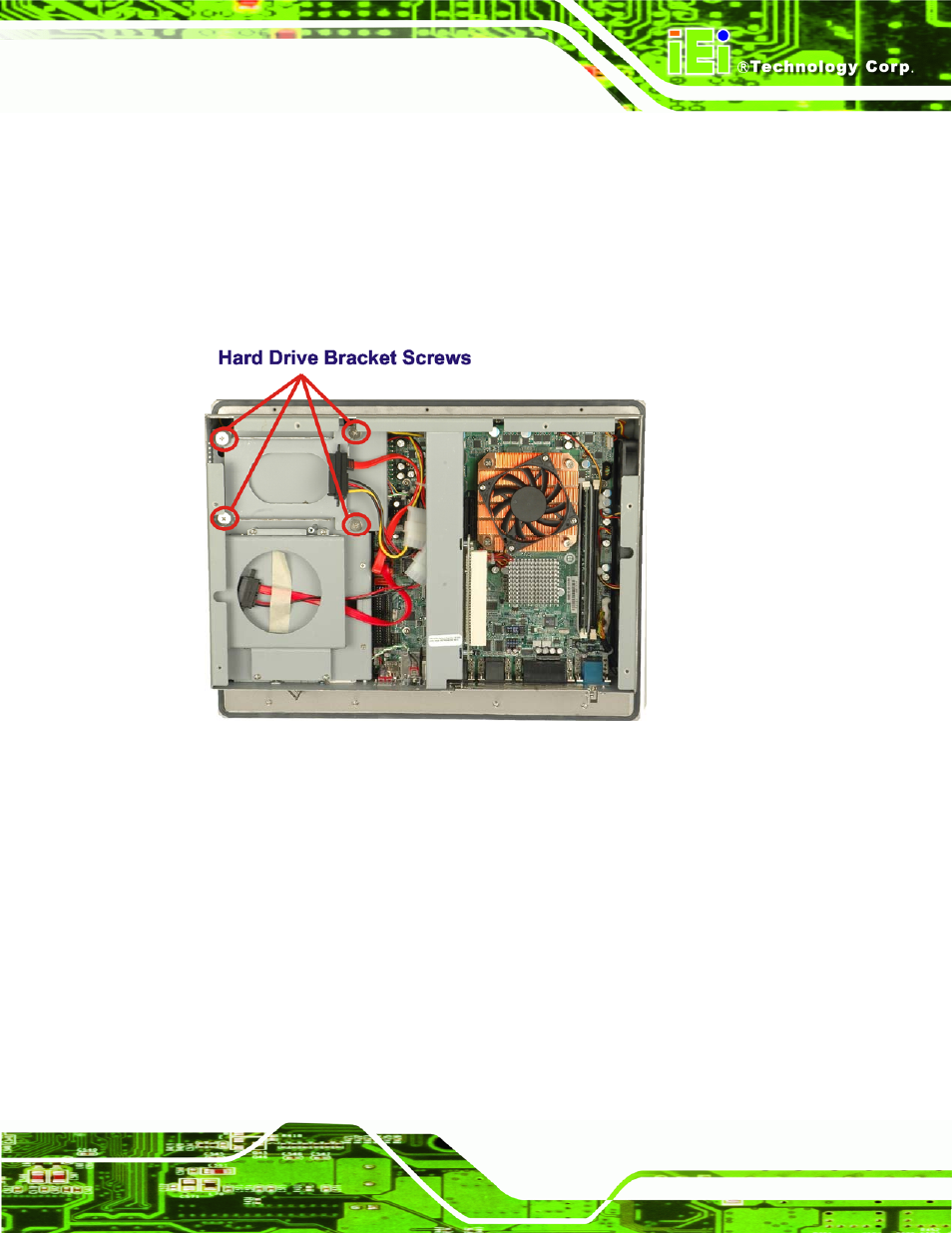

Figure 4-2: HDD Retention Screws

Step 3:

Attach the SATA connector cable to the bracket.
