PPC-5xxx-9455 Panel PC
Page 64
4.7.3 Rack and Cabinet Installation
To mount the PPC-5xxx-9455 into a rack/cabinet, please follow the steps below.
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the PPC-5xxx-9455 flat panel PC and the
rack/cabinet into which the PPC-5xxx-9455 is installed.
Step 1: Slide the rear of the PPC-5xxx-9455 panel PC through the rack/cabinet bracket
until the aluminum frame is flush against the front of the bracket (Figure 4-23).

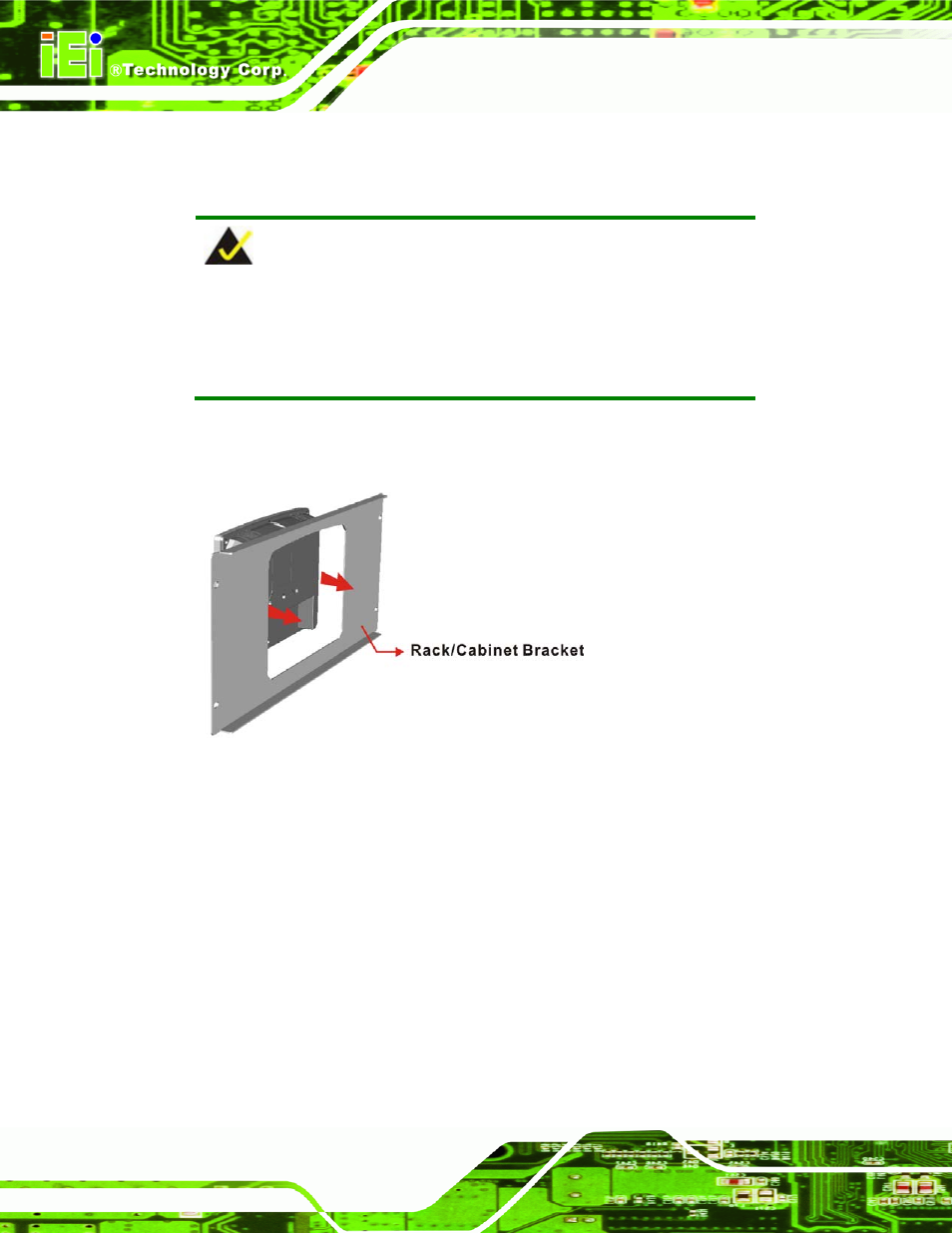

Figure 4-23: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the panel PC, behind the ABS/PC plastic frame.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket
(Figure 4-24).
