PPC-5xxx-9455 Panel PC

Page 51

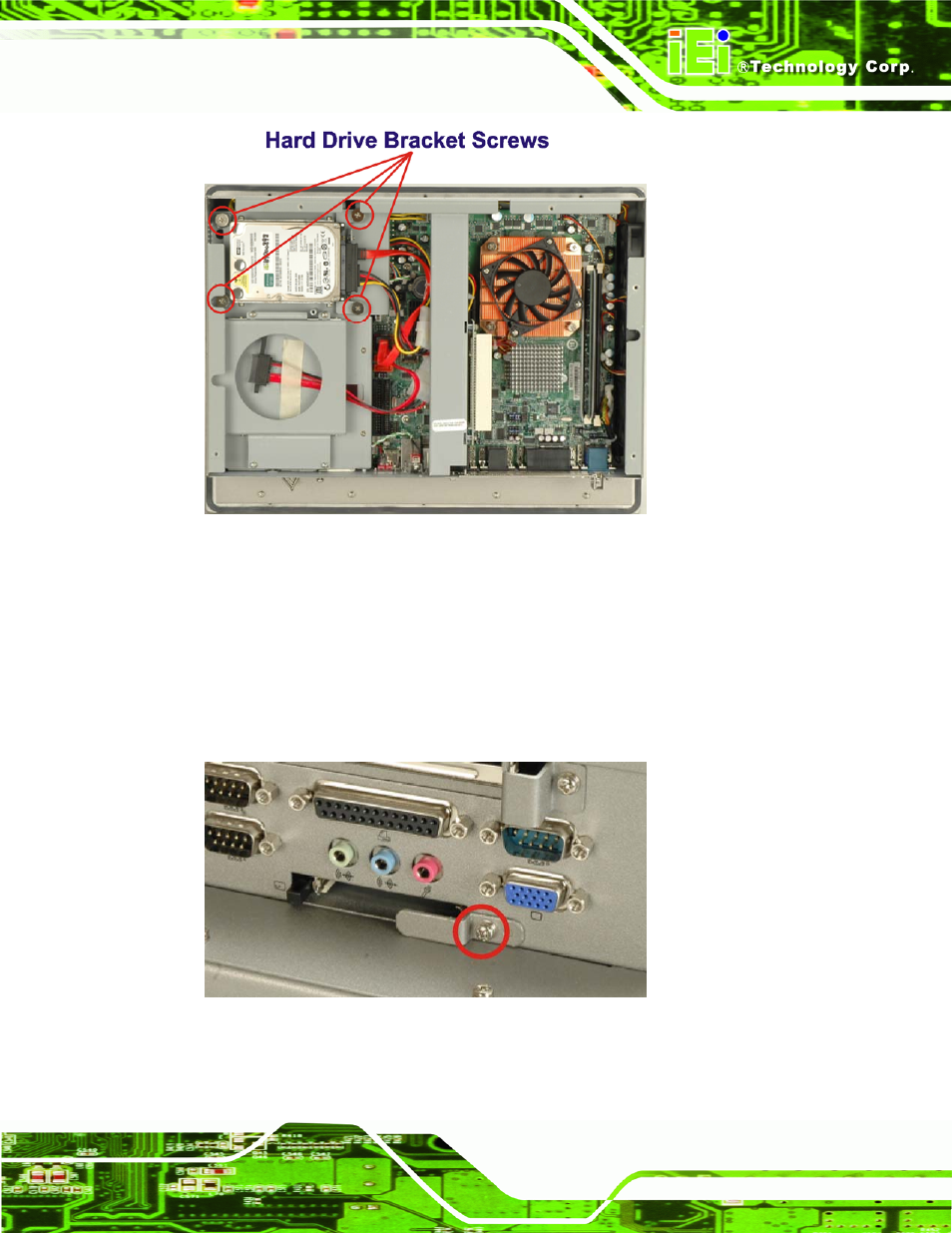

Figure 4-5: HDD Retention Screws

4.6.2 CompactFlash

®

Installation

To install the CompactFlash® card, please follow the steps below:

Step 1:

Undo the CompactFlash® slot cover screw and remove the CompactFlash®

cover plate.

Figure 4-6: CompactFlash® Cover Plate
