PPC-5xxx-9455 Panel PC

Page 52

Step 2:

Insert the CompactFlash® card into the slot.

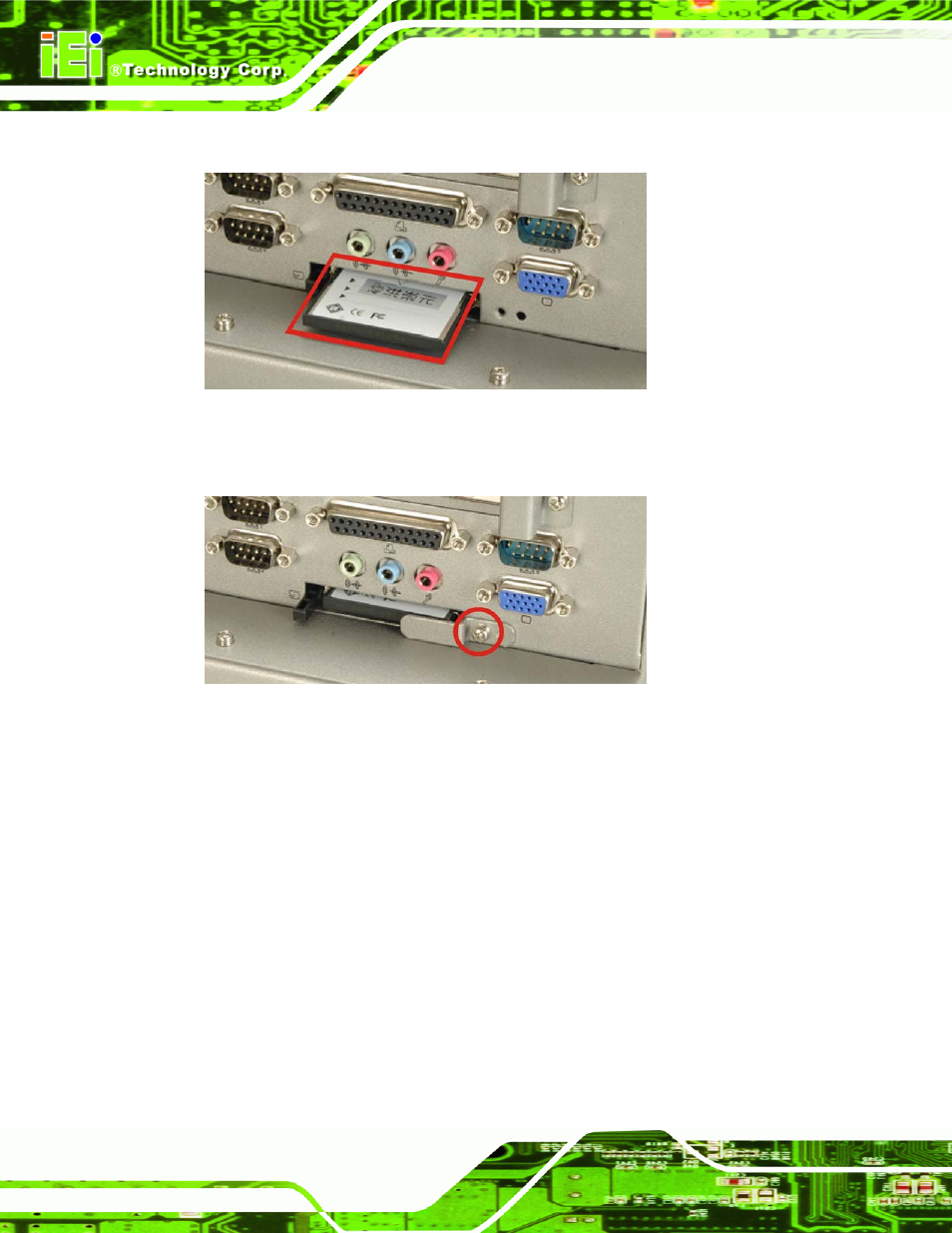

Figure 4-7: CompactFlash® Slot

Step 3:

Fasten the CompactFlash® cover plate.

Step 0:

Figure 4-8: CompactFlash® Cover Plate

4.6.3 CD Drive Installation

To install a CD drive, please follow the steps below.

Step 1:

Remove the back cover (Section 4.4).

Step 2:

Attach the CD drive adapter to the CD-ROM if it is an IDE drive (if it is a SATA

drive, proceed to Step 5:). Attach a CD drive adapter to a CD drive by aligning

the two retention screw holes in the CD drive adapter with the retention screw

holes on the rear side of the CD drive.

Step 3:

Place two spacers between the CD drive and CD drive adapter.

Step 4:

Insert two retention screws and secure the adapter to the CD drive (Figure 4-9).
