PPC-5xxx-9455 Panel PC
Page 23
2.3 Motherboard
The PPC-5xxx-9455 flat screen PC contains a POS-9455 motherboard. The motherboard
is the heart of any computer and is responsible for transmitting, receiving and processing
data as well as driving the different on-board devices. This chapter gives a brief
introduction to the POS-9455 motherboard. For more complete details on the connectors
and the different implementations of the POS-9455, please refer to the POS-9455 user
manual.

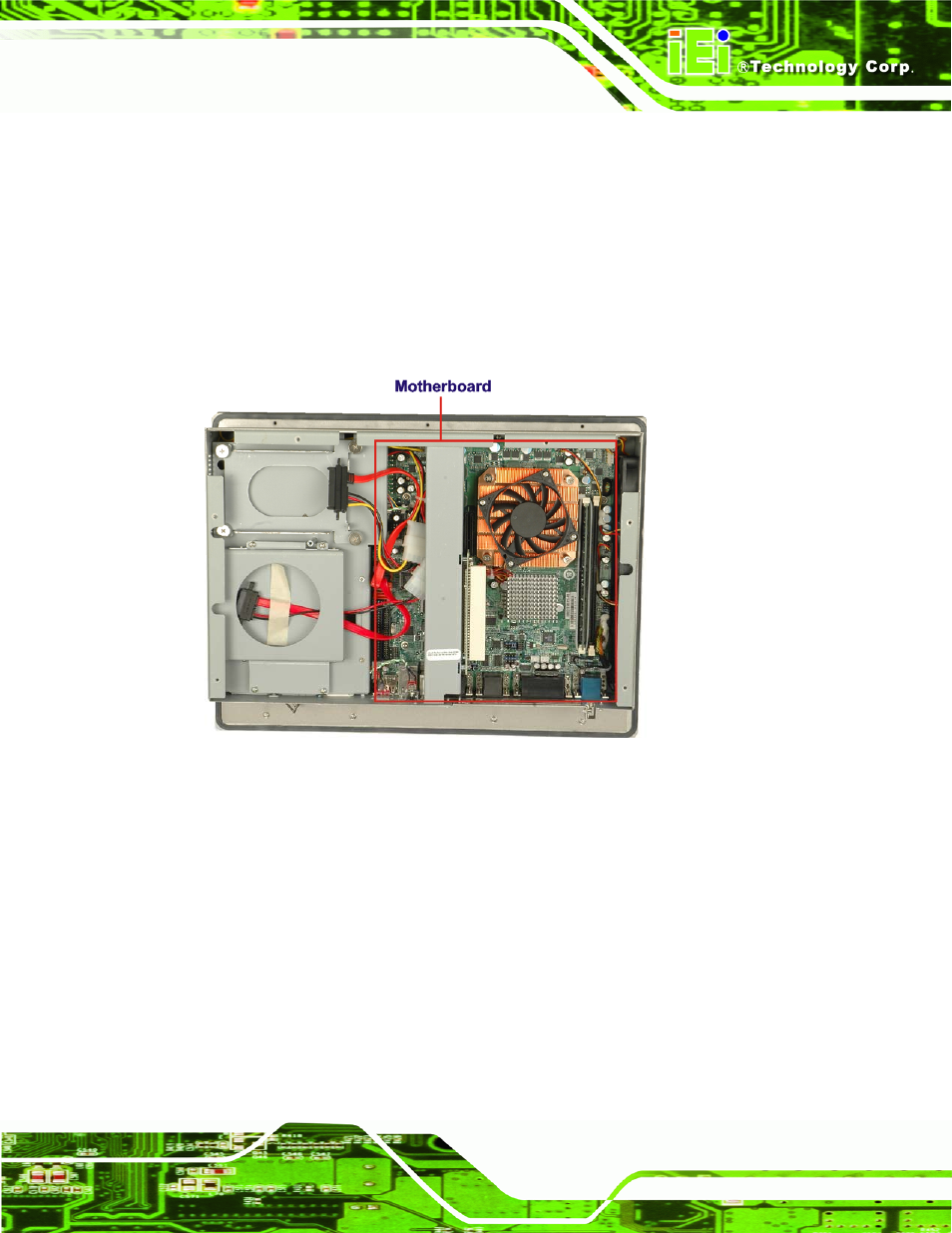

Figure 2-4: POS-9455 Motherboard
2.4 CPU Support
The PPC-5xxx-9455 panel PC is preinstalled with a LGA775 1.8 GHz Intel® Pentium®
processor E2160.
2.5 System Chipsets
The following chipsets are preinstalled on the board:
ƒ Northbridge: Intel® 945G
ƒ Southbridge: Intel® ICH7
