Page 80

KINO-QM670 Mini-ITX SBC

Page 65

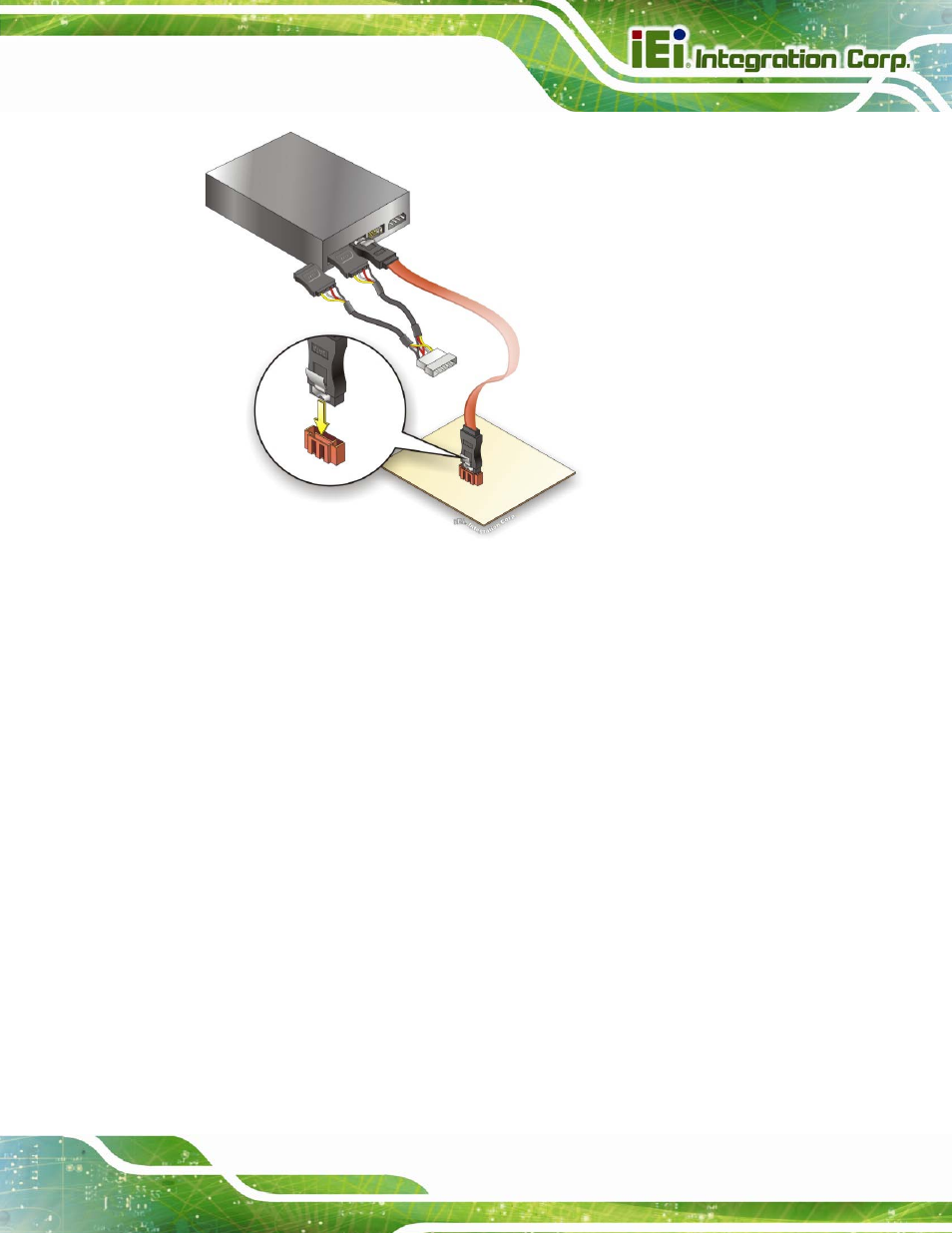

Figure 4-14: SATA Power Drive Connection

4.7.2 Dual RS-232 Cable with Slot Bracket

The dual RS-232 cable slot connector consists of two connectors attached to two

independent cables. Each cable is then attached to a D-sub 9 male connector that is

mounted onto a slot. To install the dual RS-232 cable, please follow the steps below.

Step 1:

Locate the connectors. The locations of the RS-232 connectors are shown in

Chapter 3.

Step 2:

Insert the cable connectors. Insert one connector into each serial port box

headers. See Figure 4-15. A key on the front of the cable connectors ensures

the connector can only be installed in one direction.
