1.1 Introduction

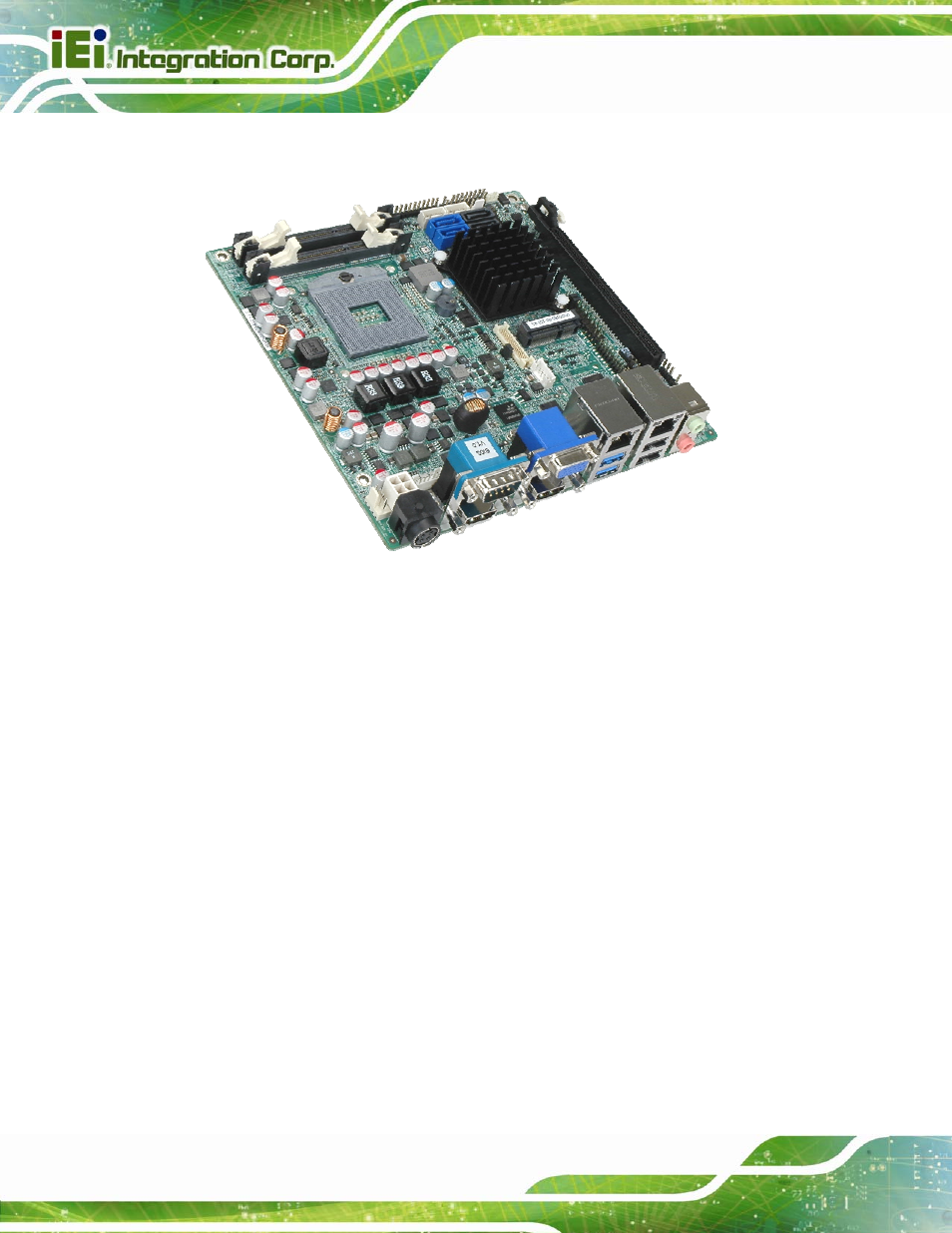

Figure 1-1: KINO-QM670
The KINO-QM670 Mini-ITX motherboard is a Socket G 32nm Intel® Core™ i5
and Core™ i7 processor (Arrandale) platform. Up to two 4.0 GB 1066 MHz or 1333 MHz
DDR3 SDRAM SO-DIMM are supported by the Intel® Arrandale processor. The processor
also supports a PCIe x16 slot.
The integrated Intel® QM67 Express Chipset supports two GbE LAN: one through the
Intel® 82579 Ethernet controller (with iAMT 7.0 support) and another through the Intel®
82583V Ethernet controller. The Intel® QM67 also supports two SATA 3Gb/s drives, two
SATA 6Gb/s drives, and provides 12 V or 5 V SATA power.
The KINO-QM670 supports multiple display devices, including 18-bit or 24-bit
dual-channel LVDS, analog CRT, and dual HDMI. Six USB 2.0 channels, two USB 3.0
channels and one expansion PCIe Mini socket provide flexible expansion options. High
Definition Audio (HDA) support ensures HDA devices can be easily implemented on the
KINO-QM670.
