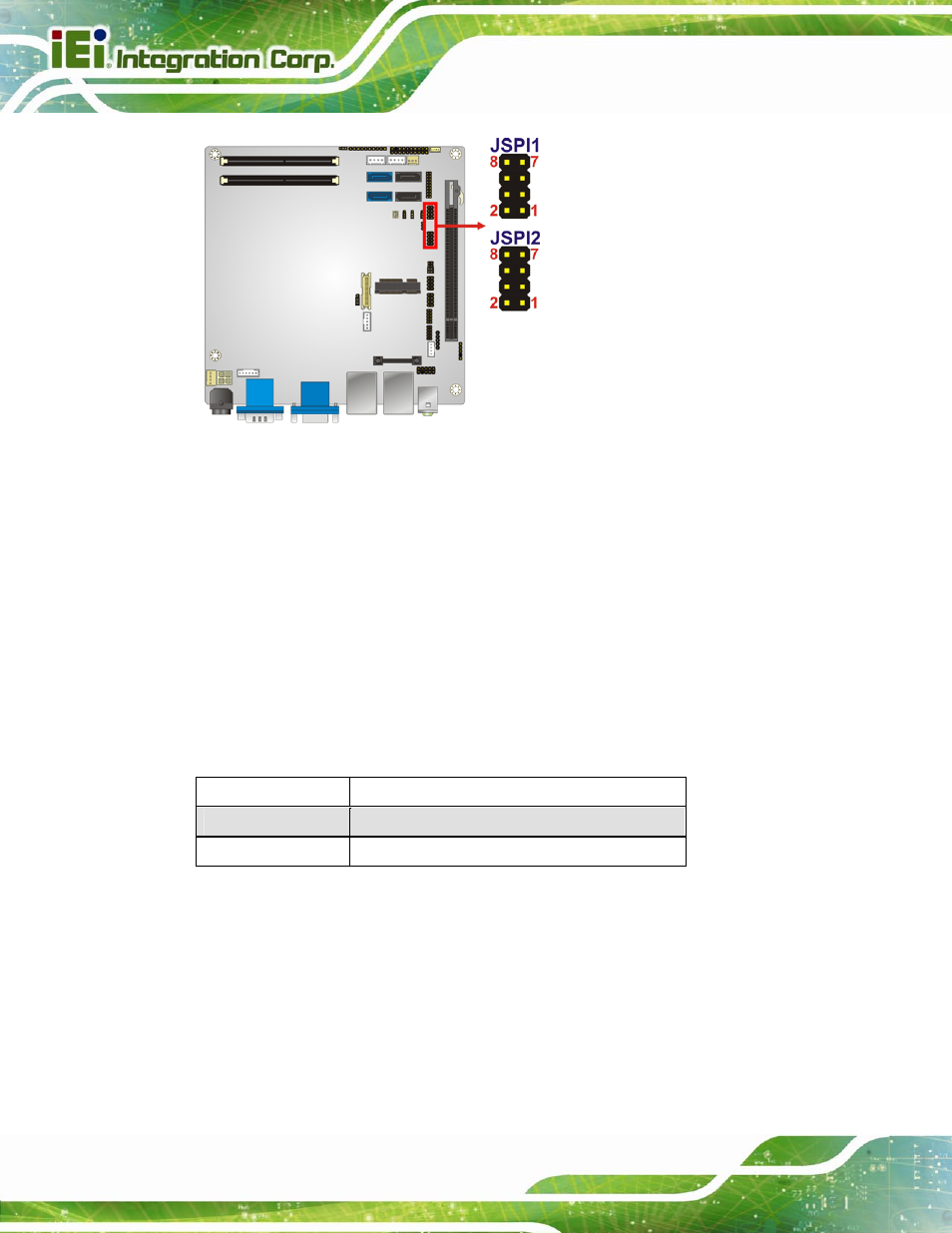

Figure 4-11: Flash Security Override Jumper Location
4.5.7 MPC Switch Control (Reserved)
Jumper Label: J_MPC1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-8
Jumper Location: See Figure 4-12
The MPC Switch Control jumper enables or disables the MPC function. The MPC Switch
Control jumper settings are shown in Table 4-3.
Setting Description
Short 1-2 MPC OFF
Short 2-3 MPC ON
Table 4-8: MPC Switch Control Jumper Settings (Reserved)
