KINO-QM670 Mini-ITX SBC

Page 34

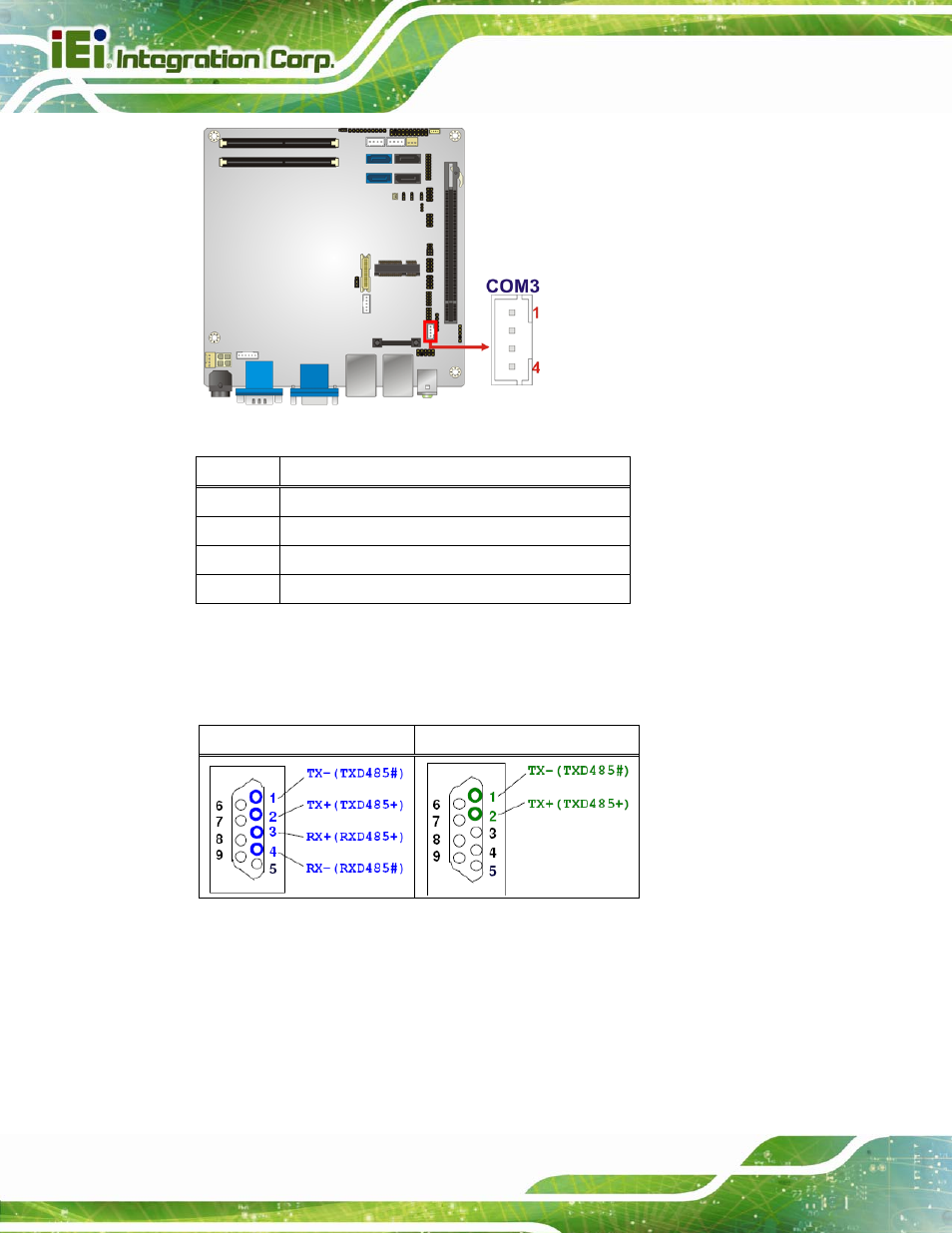

Figure 3-18: Serial Port Connector (RS-422/485) Location

Pin Description

1 RXD422-

2 RXD422+

3 TXD422+/TXD485+

4 TXD422-/TXD485-

Table 3-19: Serial Port Connector (RS-422/485) Pinouts

Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9

connector are listed below.

RS-422 Pinouts

RS-485 Pinouts

Table 3-20: DB-9 RS-422/485 Pinouts

3.2.18 SMBus Connector

CN Label:

CN5

CN Type:

4-pin wafer
