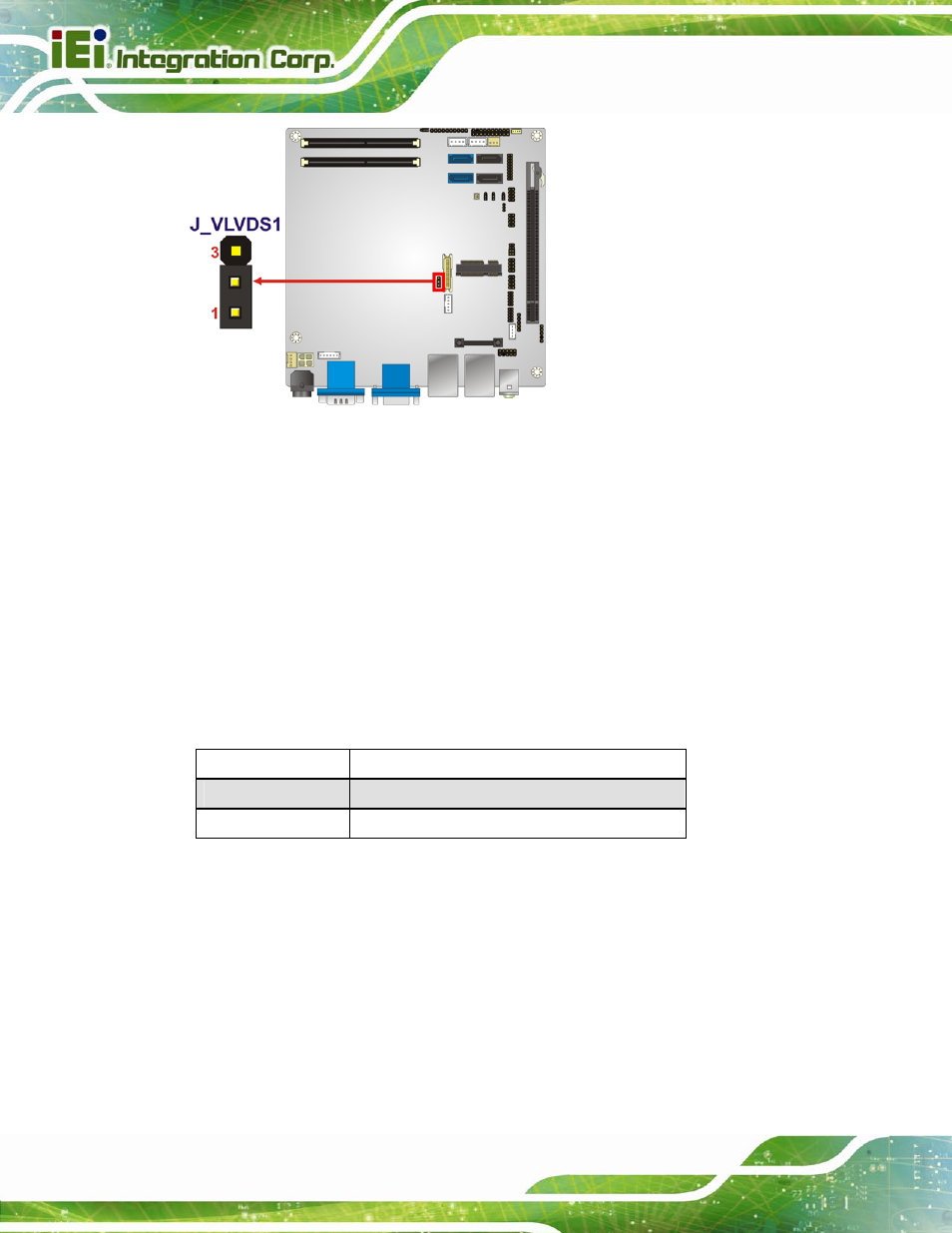

Figure 4-9: LVDS Voltage Selection Jumper Pinout Locations
4.5.5 ME RTC Register Jumper
Jumper Label: ME_RTC1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-6
Jumper Location: See Figure 4-10
The ME RTC Register jumper saves or clears the ME RTC registers. The ME RTC
Register jumper settings are shown in Table 4-3.
Setting Description
Short 1-2 Save ME RTC registers (normal operation)
Short 2-3 Clear ME RTC registers
Table 4-6: ME RTC Register Jumper Settings
