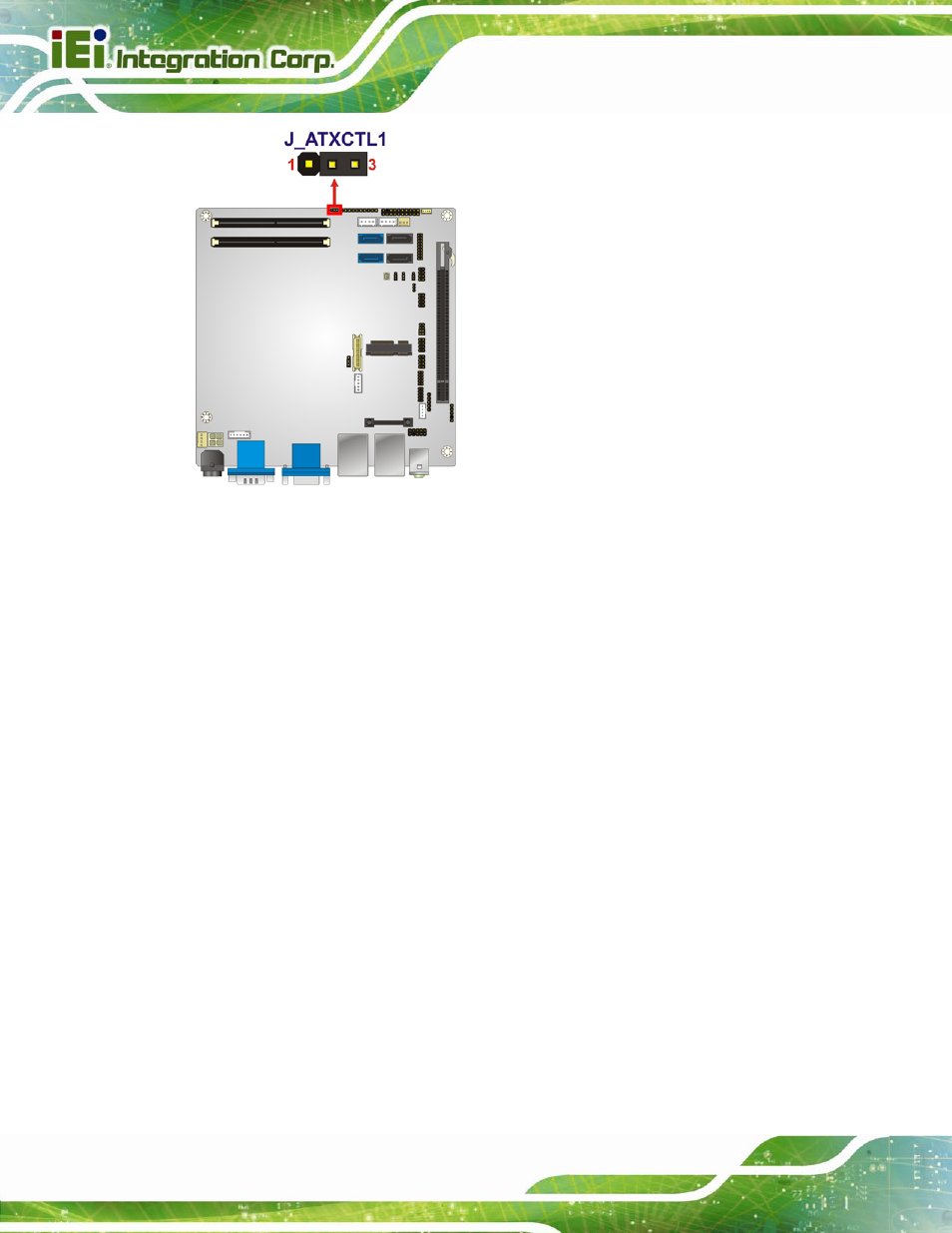

Figure 4-6: AT/ATX Power Mode Jumper Location
4.5.2 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type: 3-pin header (1x3)
Jumper Settings: See
7
Table 4-3
Jumper Location: See
7
Figure 4-7
If the KINO-QM670 fails to boot due to improper BIOS settings, the clear CMOS jumper
clears the CMOS data and resets the system BIOS information. To do this, use the jumper
cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1
and 2.
If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault
may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the
following:
ƒ Enter the correct CMOS setting
ƒ Load Optimal Defaults
ƒ Load Failsafe Defaults.
